Product description

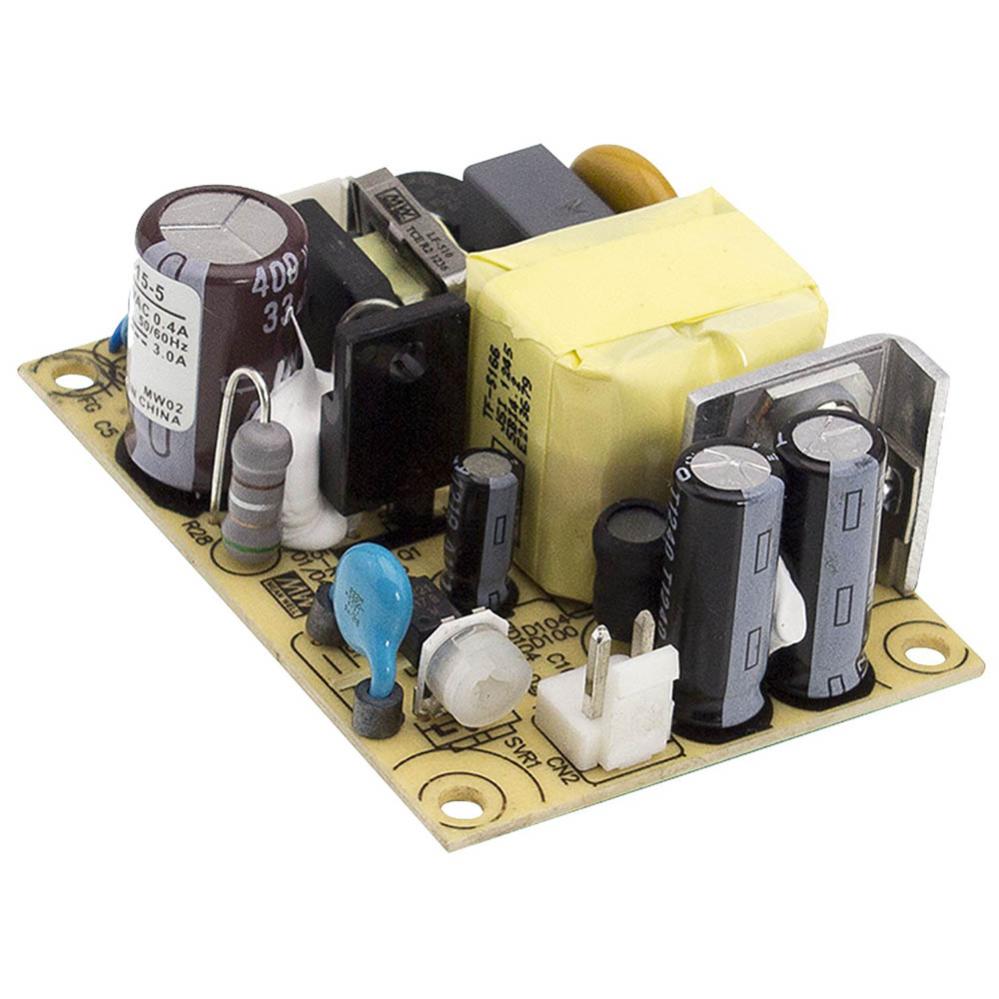

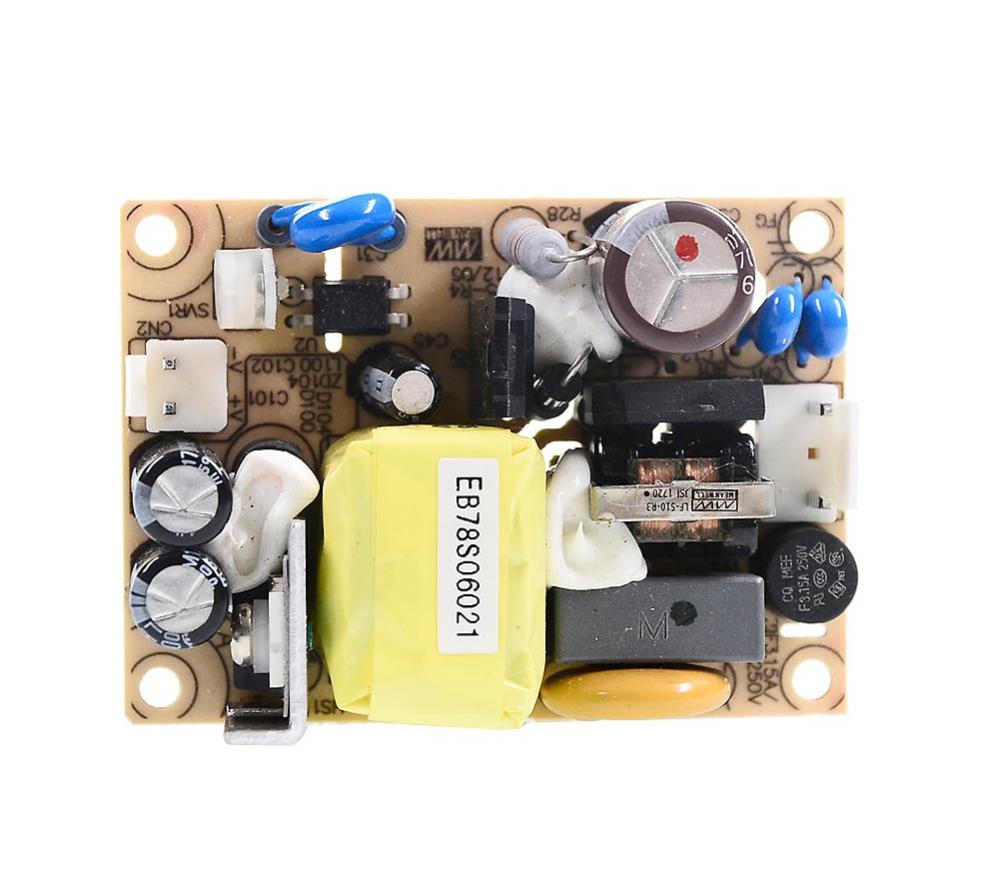

Mean Well EPS-15-24 is a compact open-frame AC/DC power supply with an output voltage of 24 VDC. The power supply features universal AC input and is cooled by free air convection. Protection is provided against short circuit, overload and overvoltage. Intended for installation in equipment, control cabinets or a suitable enclosure.
Specifications:
- Manufacturer: Mean Well
- Model: EPS-15-24
- Type: AC/DC power supply, open frame
- Input voltage: 85–264 VAC
- Frequency range: 47–63 Hz
- Output voltage: 24 VDC
- Adjustable output voltage: 21.6-27 VDC
- Output current: 0.625 A
- Rated power: 15 W
- Ripple and noise (max): 150 mVp-p
- Efficiency: 83 %
- Operating temperature: -30 to +70 °C
- AC current (typ.): 0.4 A at 115 VAC / 0.2 A at 230 VAC
- Dimensions: 63.5 x 45.7 x 24 mm
- Weight: 57 g
- AC input connector: JST B3P-VH (3-position, with 2 pins connected)
- DC output connector: JST B2P-VH (2-position)
- Safety standards: UL 62368-1, TÜV BS EN/EN 62368-1, etc.
Suitable JST VH 3.96 mm connectors (sold as accessories):
- Connector housing JST VHR-3N: 41012595 (3-position)
- Connector housing JST VHR-2N: 41012594 (2-position)
- Crimp terminal: 41012600
- Crimp terminal with cable: 41037960
