Product description

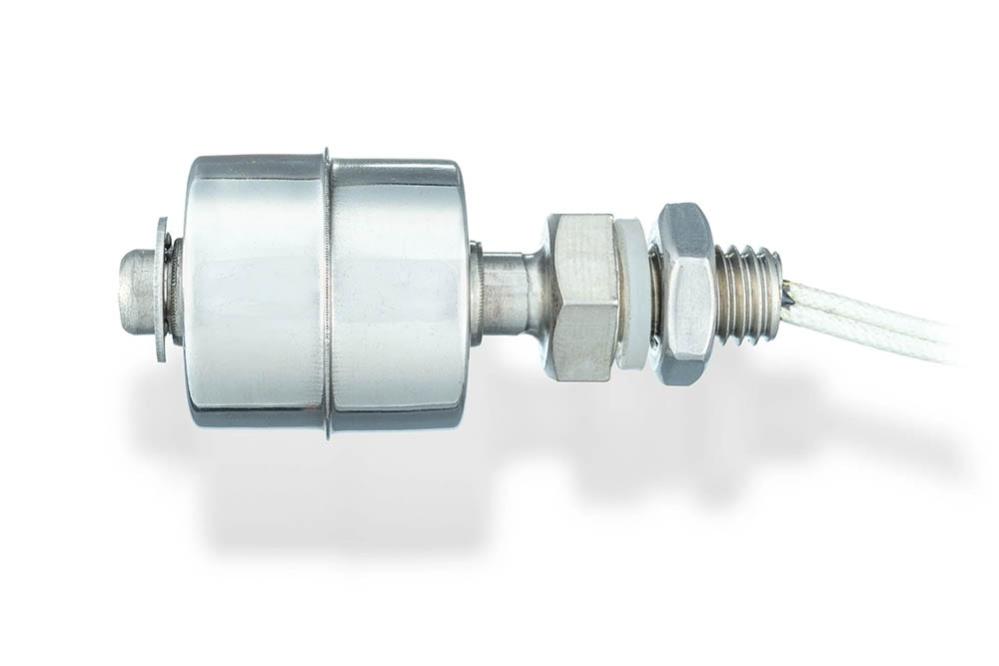

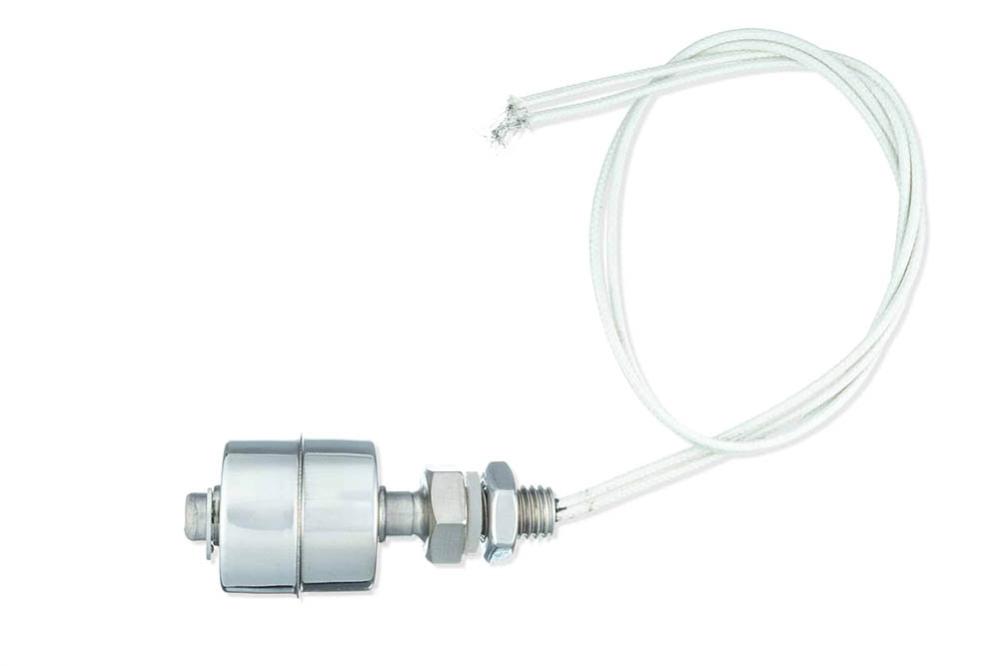

Vertical stainless steel liquid level sensor for detecting liquid levels in tanks and containers. The sensor operates using a magnet and a magnetic reed switch. As the float moves with the liquid level, the built-in switch is activated, enabling level monitoring or control of functions such as filling systems or alarms.
The sensor can be mounted at the top or bottom of a tank depending on the application. The stainless steel construction makes it suitable for use with water and other liquids.
Specifications:
- Sensor type: Float sensor with reed switch
- Material: Stainless steel
- Cable length: 350 mm
- Thread diameter: ø10 mm
- Total length: 65 mm
- Float diameter: ø27 mm
- Switch function, float in upper position: NC
- Switch function, float in lower position: NO
- Rated voltage (max): 30 VAC/VDC
- Switch current (max): 100 mA
- Operating temperature range: -30°C to +125°C
