Product description

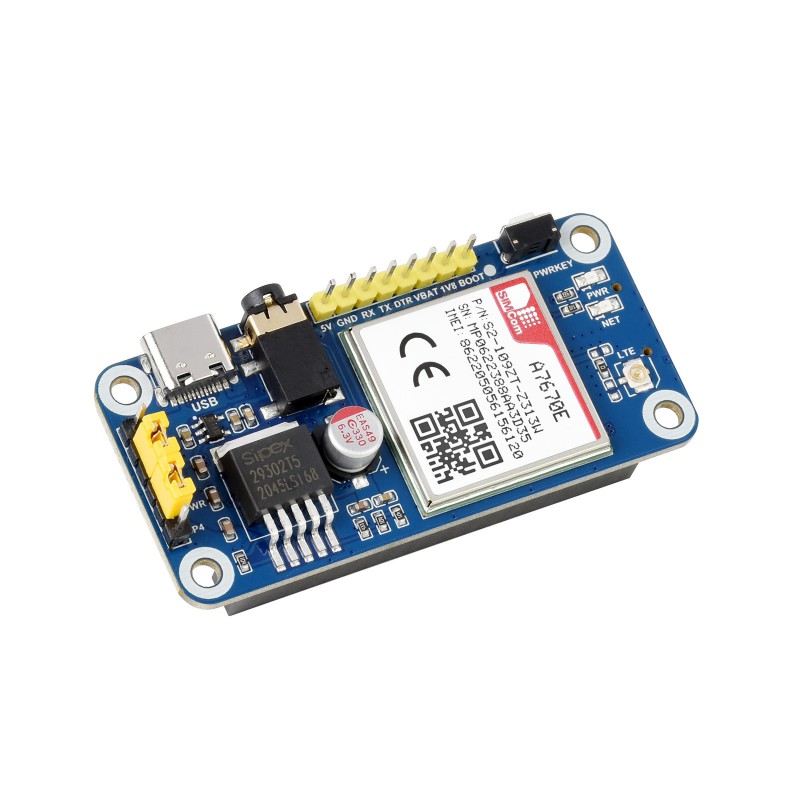

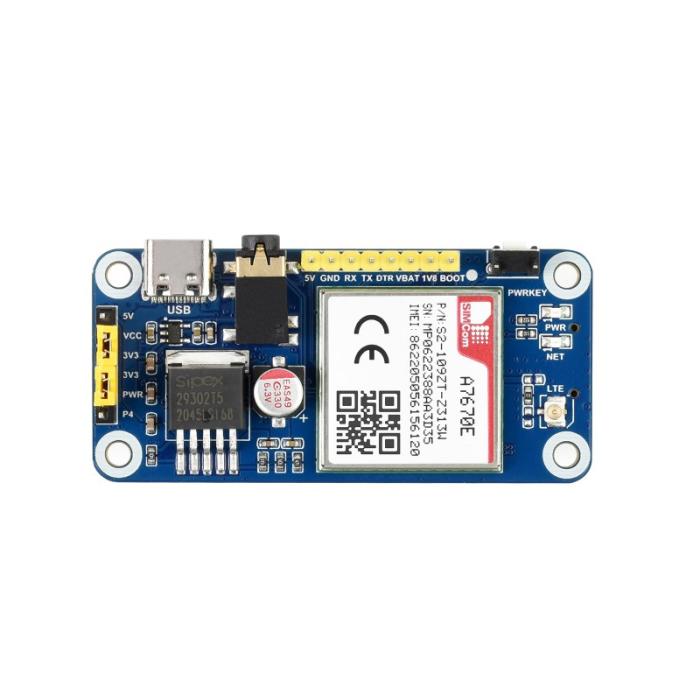

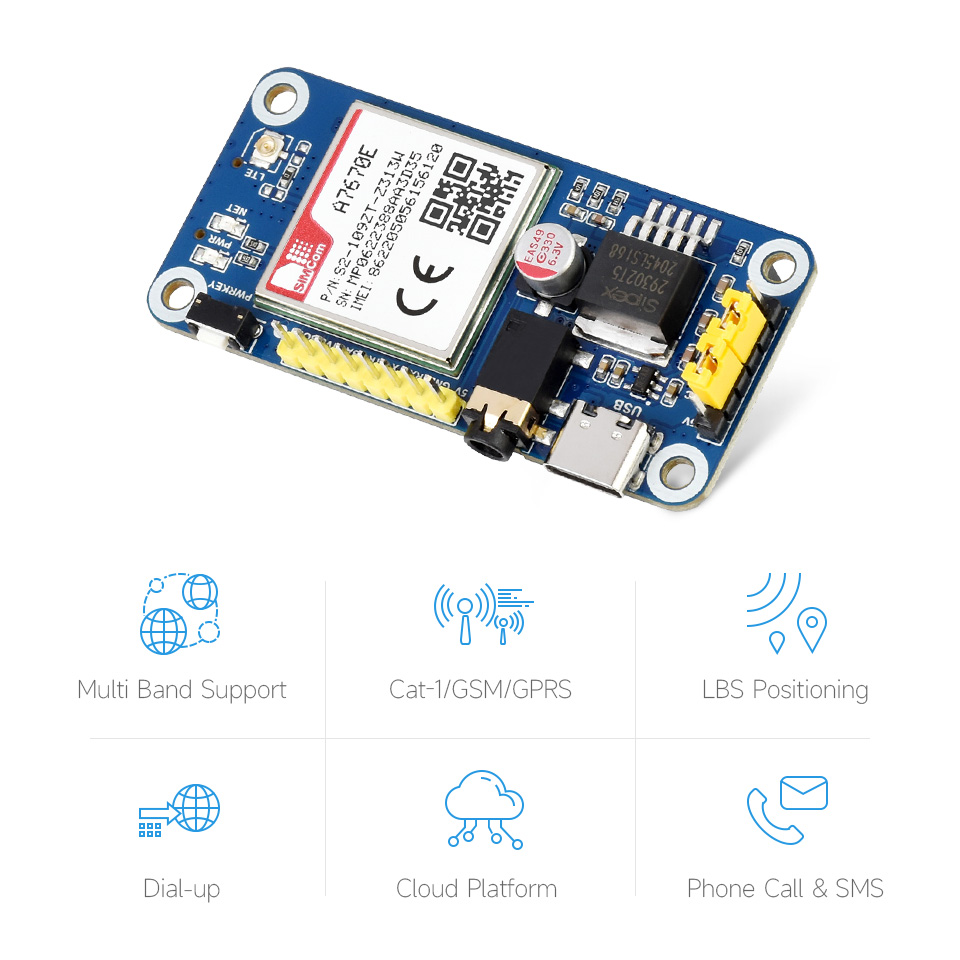

The A7670E LTE Cat-1 is a communication HAT designed for Raspberry Pi and Jetson Nano. It is intended to provide wireless data transmission over cellular networks and LBS positioning. The integrated A7670E is a communication module with support for 4G LTE Cat-1 and provides positioning via LBS (base station positioning). It is compatible with Linux and Windows and uses standardized AT commands compatible with the SIM7600 series. This simplifies integration with existing infrastructure and IoT solutions.

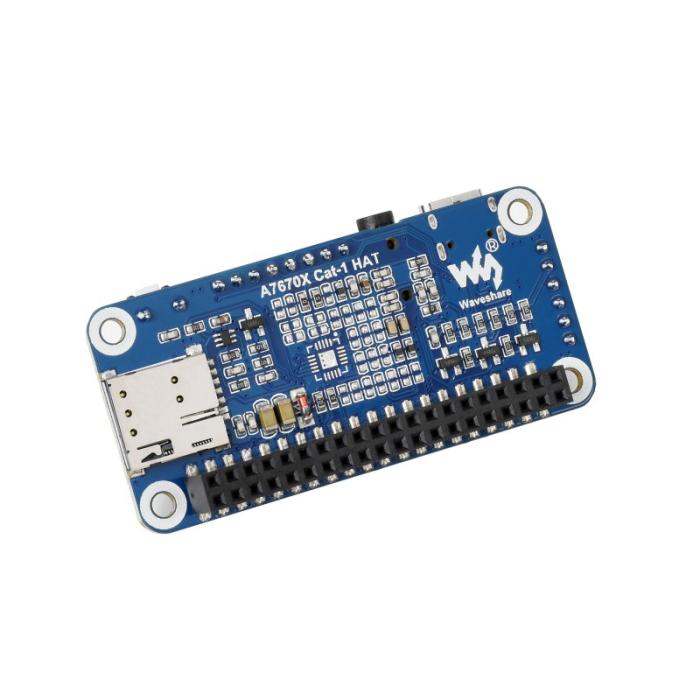

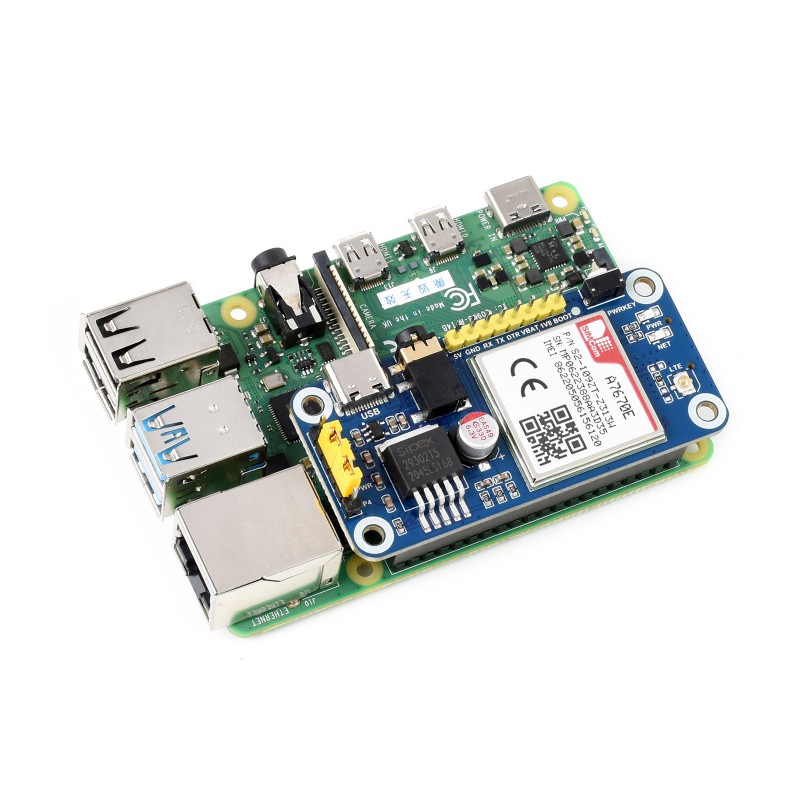

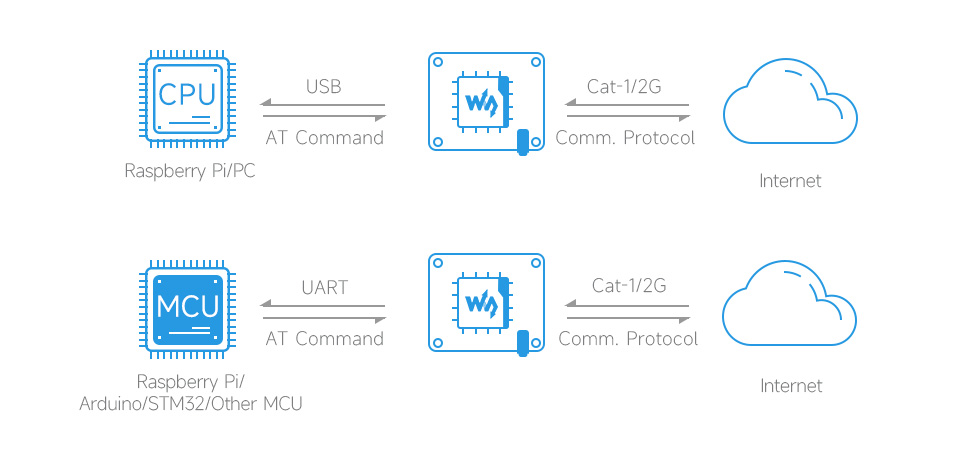

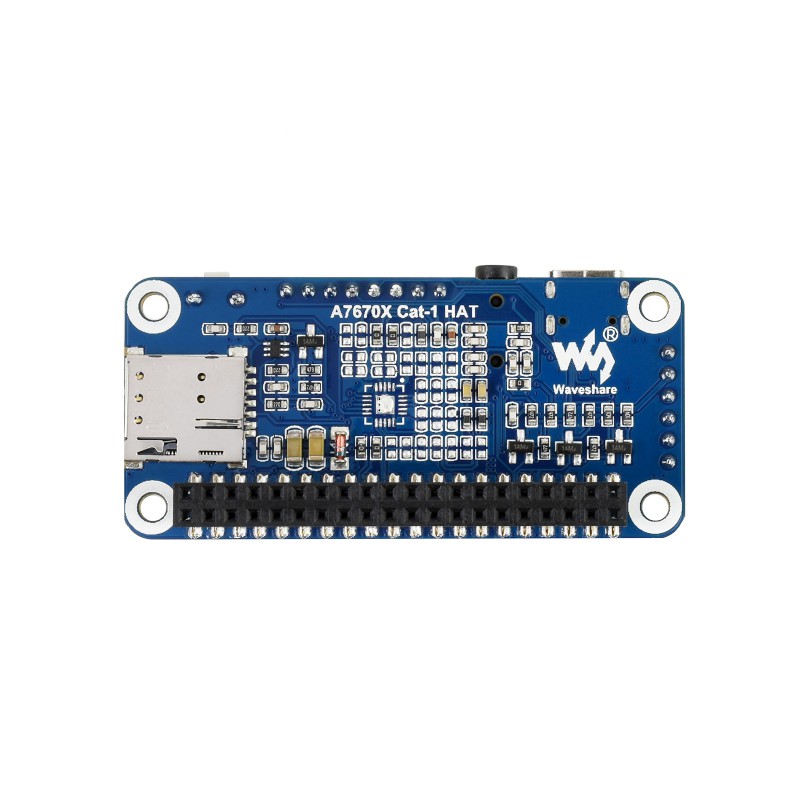

It connects to the Raspberry Pi 40-pin GPIO header. The module is intended for mobile communication in monitoring, telemetry, and remote control projects. Equipped with a USB-C interface, it enables execution of AT commands and network communication.

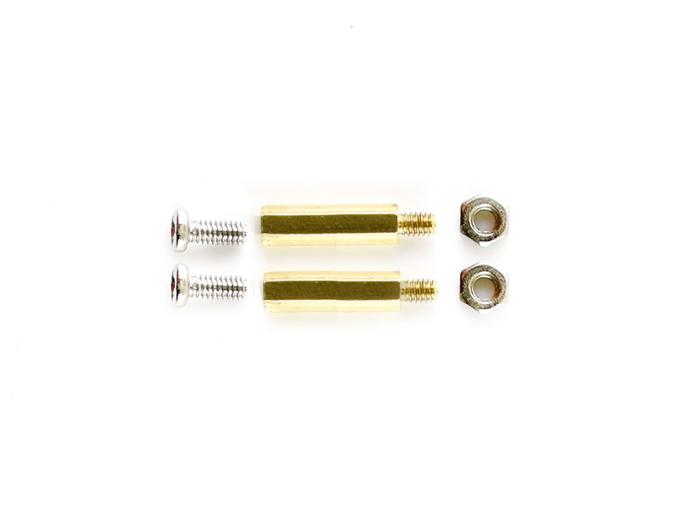

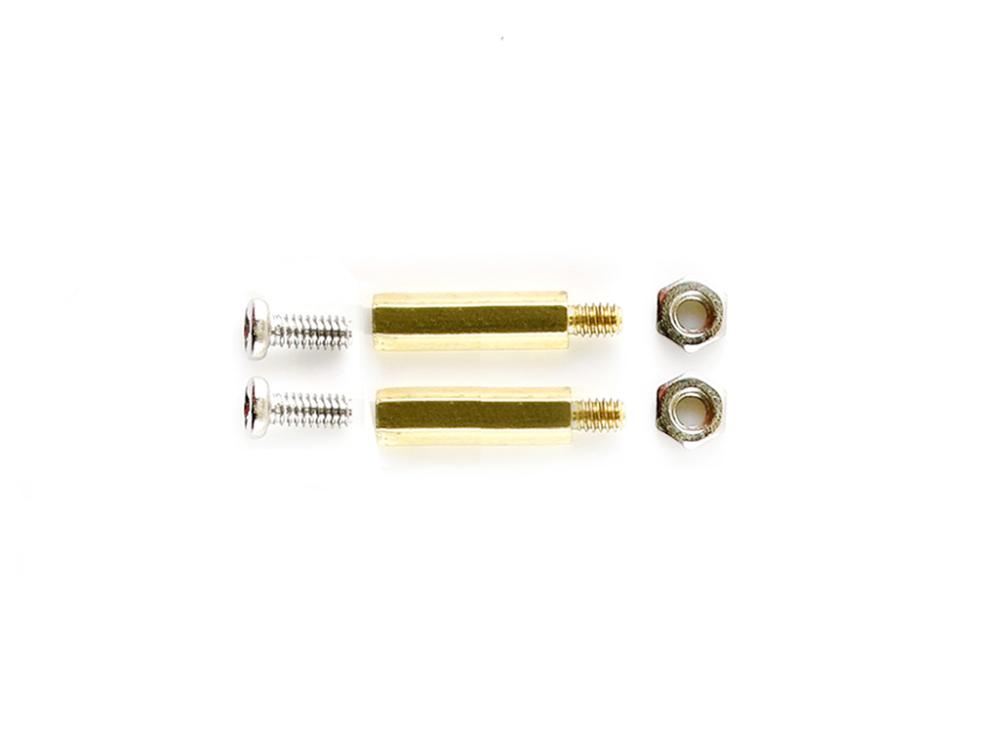

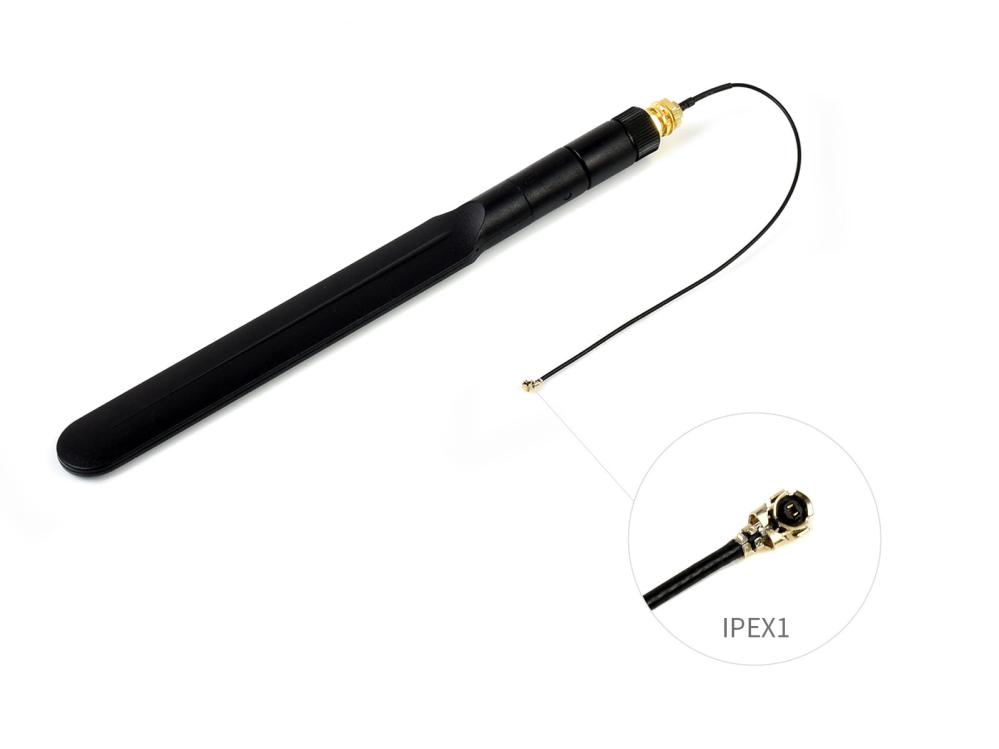

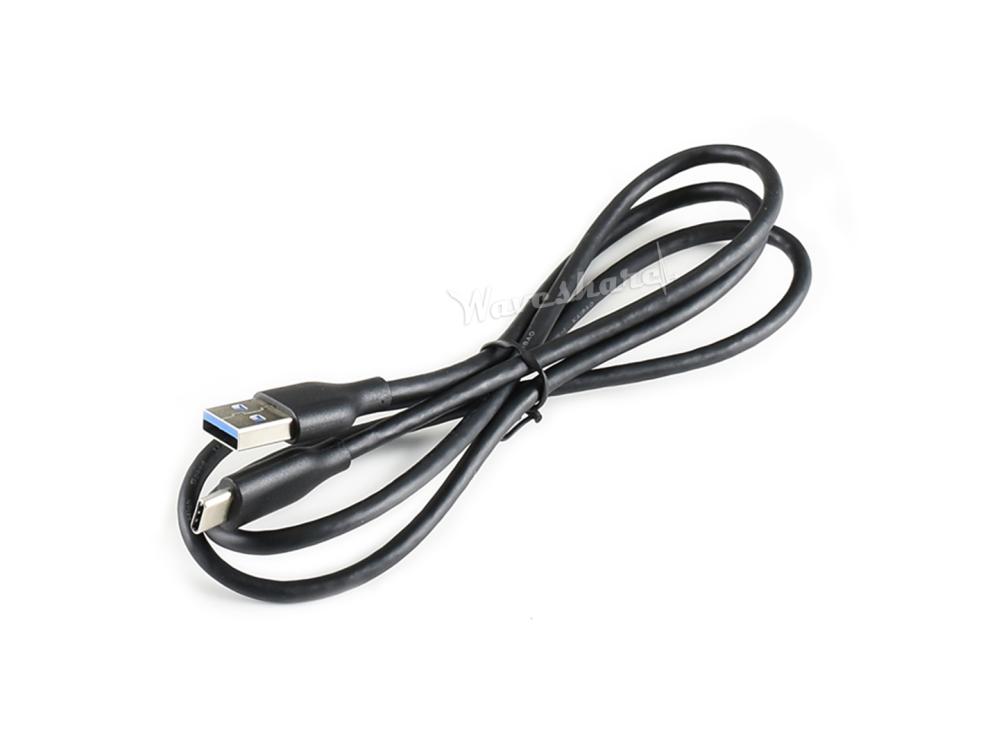

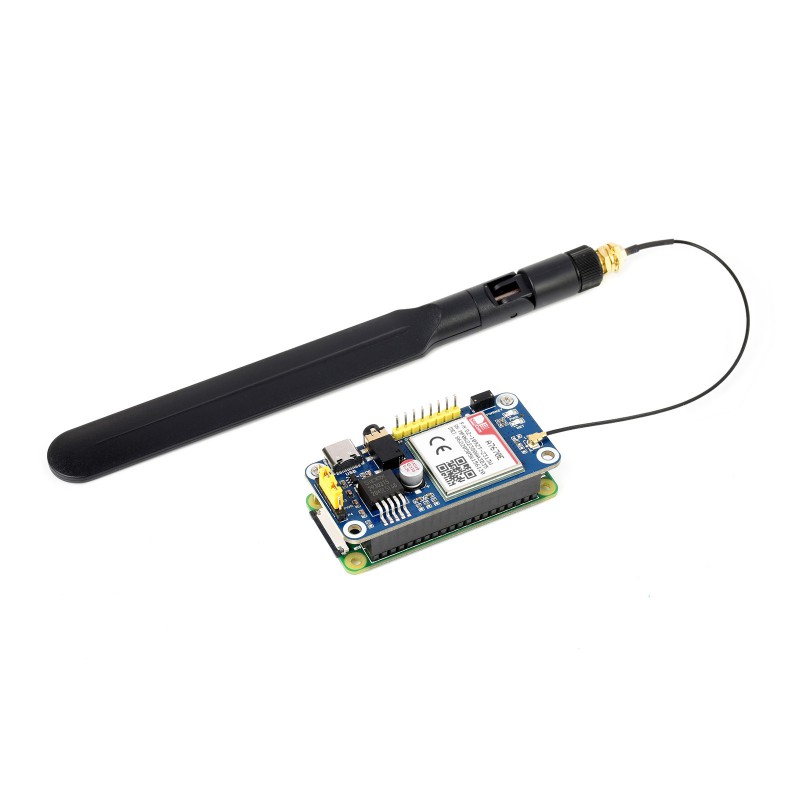

Supplied with an LTE antenna with U.FL (IPEX) connector, USB-C cable, mounting screws, and spacers.
Specifications:
- Frequency bands: LTE Cat-1 LTE-FDD B1, B3, B5, B7, B8, B20
- Data rate: Downlink up to 10 Mbps, uplink up to 5 Mbps
- Protocol support: TCP/IP, HTTP(s), MQTT(s), FTP(s), SSL

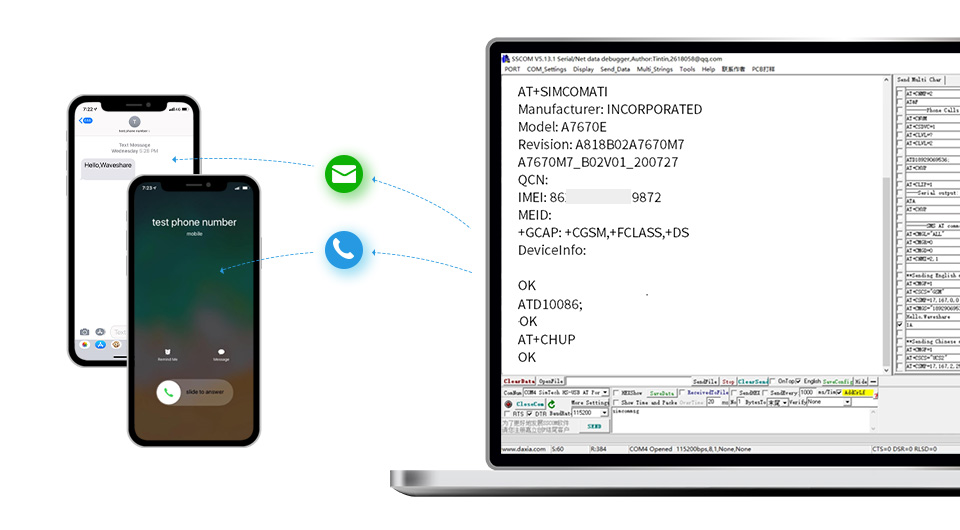

- SMS support: MT, MO, CB, Text, PDU
- LBS positioning: Support for base station positioning
- Interface: 40-pin GPIO and USB-C
- Audio output: Standard 3.5 mm
- SIM card support: 1.8/3 V SIM card
- Supply voltage: 3.3 or 5 V (selected by jumper)
- Operating temperature: -30 to 80 °C

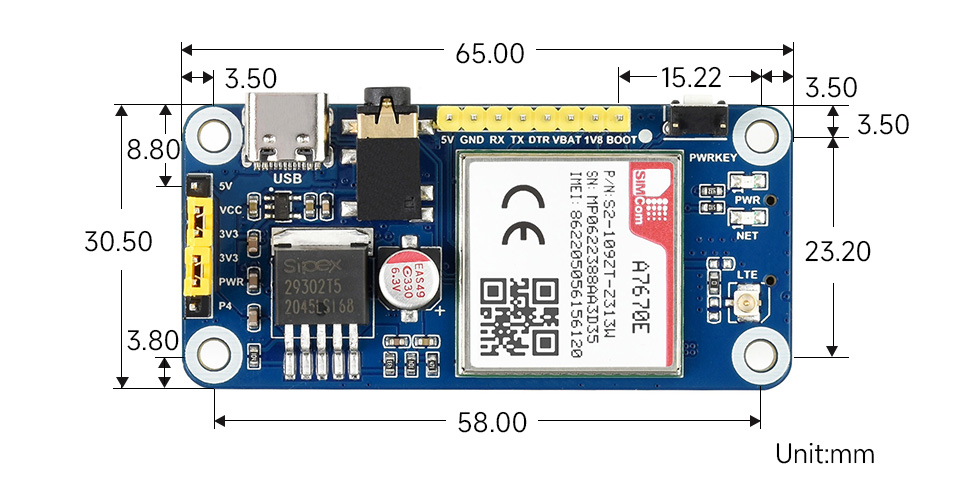

- Dimensions: 65 x 30.5 mm
