Product description

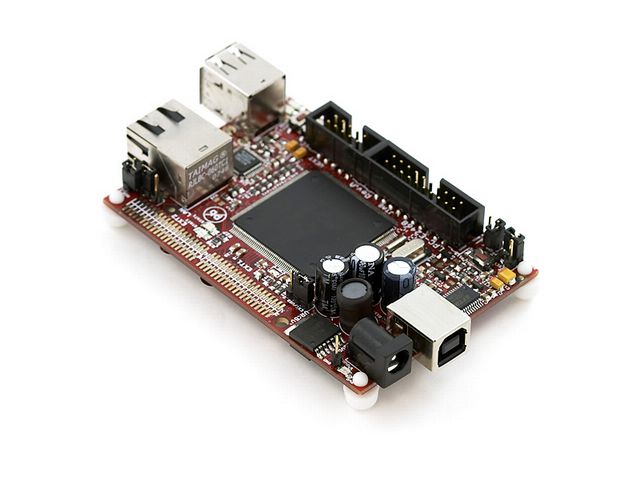

Development board for the ARM7 LPC2468.
Features:
* MCU: LPC2468
* 16MB SDRAM
* 128 MB NAN Flash
* Standard JTAG connector with ARM 2x10 pin layout for programming/debugging with ARM-JTAG
* Ethernet 100MBit
* 2x USB hosts
* USB-to-RS232 converter device connected to LPC2468 UART
* SD/MMC card connector
* UEXT connector with I2C, SPI, RS232 and power supply for connecting add-on modules like RF link, MP3, etc available from Olimex
* Trimpot connected to ADC
* RESET circuit with external control of Philips ISP utility via RS232 port
* Two USER button
* RESET Button
* Two on board voltage regulators 3V and 5V with up to 800mA current
* Extension port connector for many of microcontrollers pins
* Single power supply: External power supply, USB or JTAG connector
* Battery holder and connector for the RTC
* Power supply led
* FR-4, 1.5 mm, red soldermask, component print
Dimensions: 90x60mm (3.54 x 2.36")
