Product description

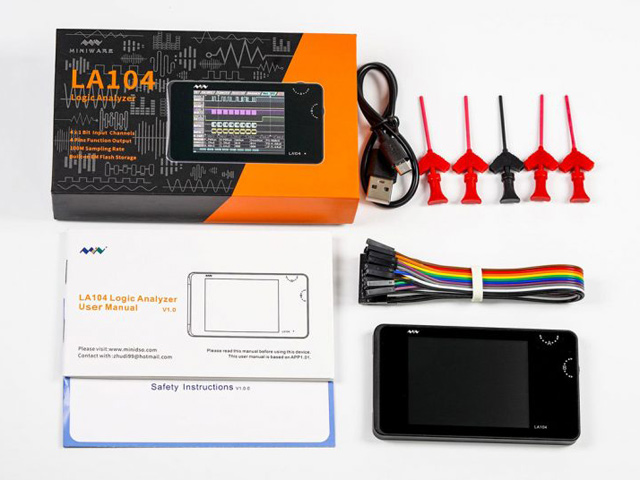

Miniware LA104 – Handheld Logic Analyzer, 100 MHz, 4 Channels and 4 Signal Output Ports for Test Signal Generation

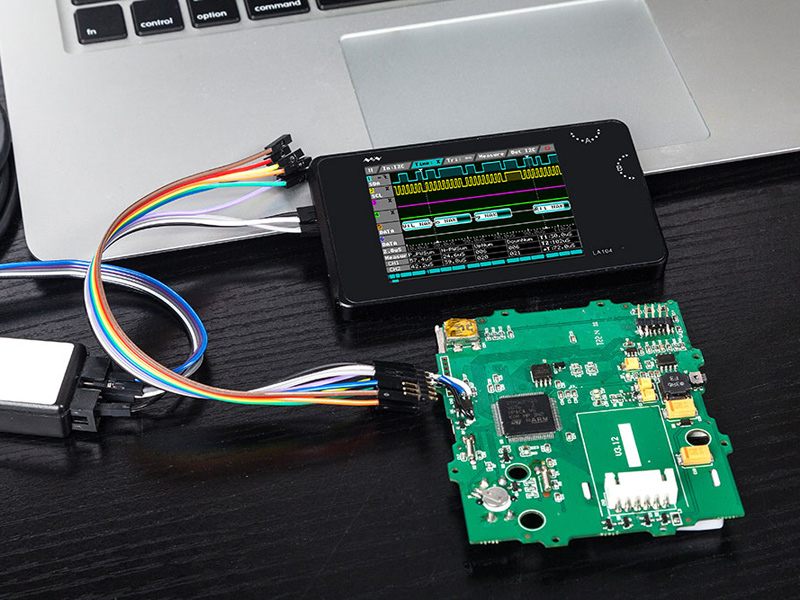

The LA104 allows you to analyze digital logic systems with high precision. It is especially useful for testing and measurement tasks, making it well-suited for both repair work and prototype development. Ideal for use in the lab, workshop, or in the field.
The LA104 is compact, rechargeable, and built with a robust anodized aluminum enclosure. As open-source hardware, it also allows for custom firmware development to implement user-defined functions.

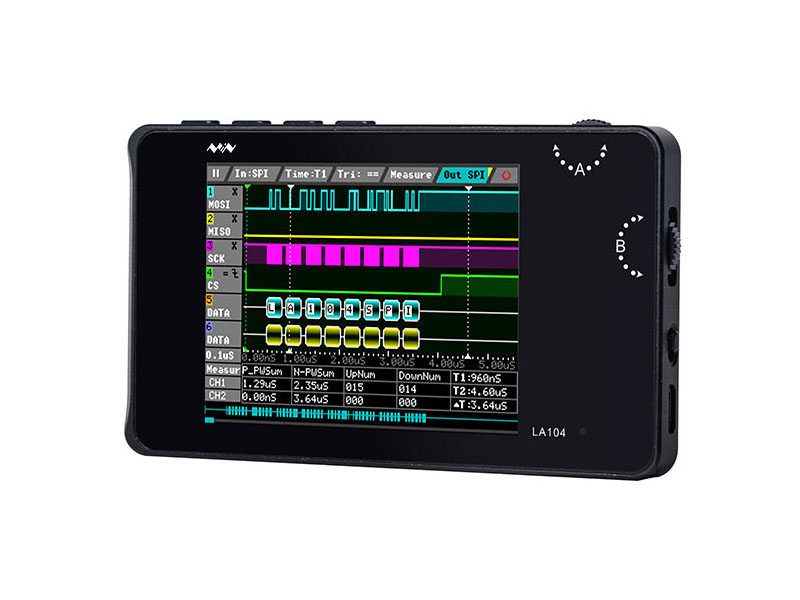

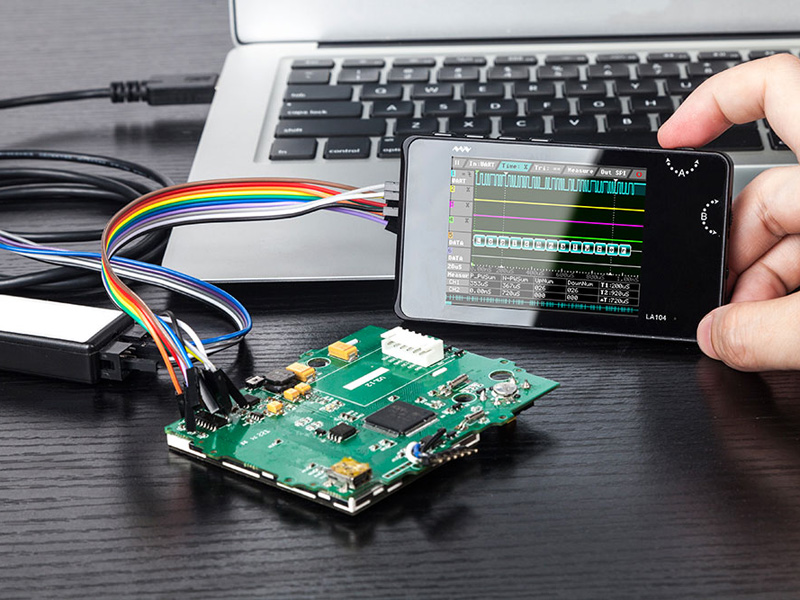

The user interface is designed to be both simple and intuitive. The 2.8-inch TFT LCD screen (320×240 pixels) provides clear visibility of digital signal behavior. Navigation is managed via four push buttons and two rotary encoders. The built-in 500 mAh battery supports portable operation, and the integrated 8 MB flash memory enables data storage in both BMP and CSV formats for later analysis.
Specifications:
- Measurement voltage: 1.2 - 5 V

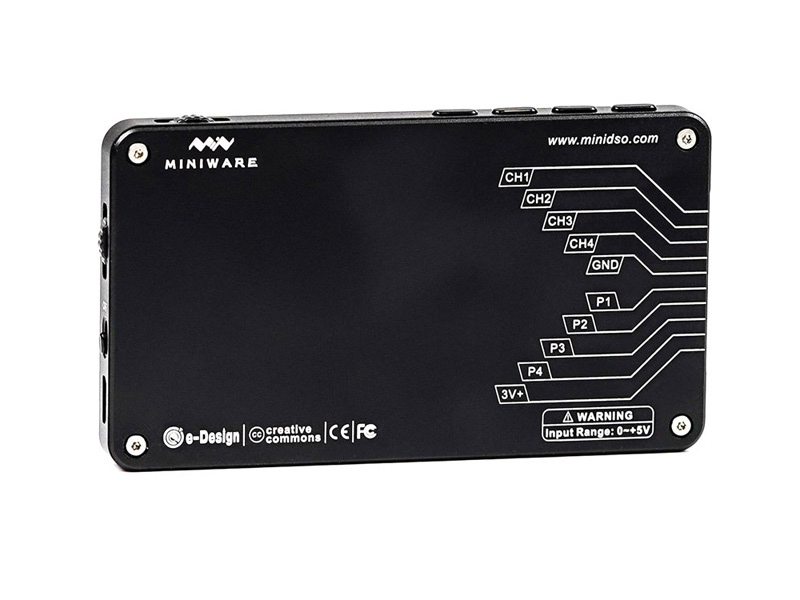

- Number of input channels: 4
- Number of output channels: 4
- Signal generation: I²C, SPI, UART, PWM
- Minimum detectable pulse width: 10 ns
- Input impedance: 1 Mohm
- Sampling rate: 100 MSa/s
- Display: 2.8" TFT LCD (320×240 pixels)

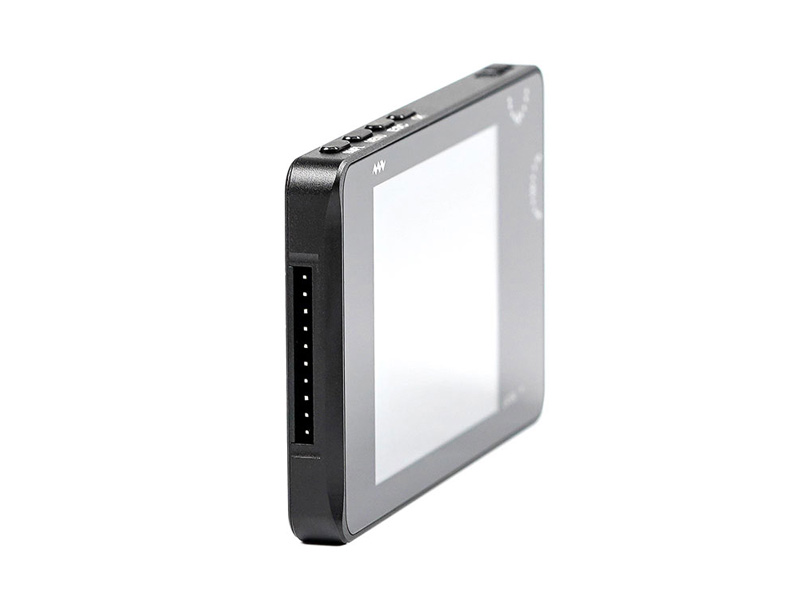

- Menu control: 4 push buttons and 2 rotary encoders
- Battery (built-in): 500 mAh, rechargeable
- Charging/data interface: MicroUSB
- Internal memory: 8 MB flash
- Data file formats: BMP, CSV
- Dimensions: 100 × 56 × 8.4 mm
