Product description

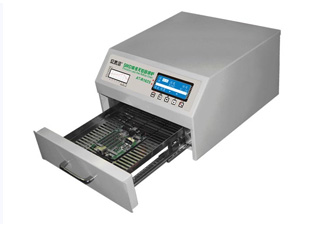

Ugn för lödning av kretskort med SMD-komponenter. Fugerar för både blyfri och konventionell lödning.
Manuell utdragslåda. Max kortstorlek 220x280mm.
--
Operating voltage: AC230V AC 50-60Hz
Maximum output power: 600W
Heating methods: infrared radiation and hot air mix heating
Operating system: Chinese-English operating system
Working mode: automatic soldering mode, maintenance mode adjustable
Temperature curve : warm-up, heating, soldering, heat preservation and cooling phases.
Range of temperature and time on warm-up: 70~150C, 0~5Min
Range of temperature and time on heating: warm-up temperature to 220C, 0~5Min
Range of temperature and time on soldering: heating temperature to 300C, 0~30s
Range of temperature and time on heating preservation: soldering temperature-(0~50C)
Effective soldering area: 220×280mm
Size: 428×350×220mm
Manuell utdragslåda. Max kortstorlek 220x280mm.
--
Operating voltage: AC230V AC 50-60Hz
Maximum output power: 600W
Heating methods: infrared radiation and hot air mix heating
Operating system: Chinese-English operating system
Working mode: automatic soldering mode, maintenance mode adjustable
Temperature curve : warm-up, heating, soldering, heat preservation and cooling phases.
Range of temperature and time on warm-up: 70~150C, 0~5Min
Range of temperature and time on heating: warm-up temperature to 220C, 0~5Min
Range of temperature and time on soldering: heating temperature to 300C, 0~30s
Range of temperature and time on heating preservation: soldering temperature-(0~50C)
Effective soldering area: 220×280mm
Size: 428×350×220mm
