Product description

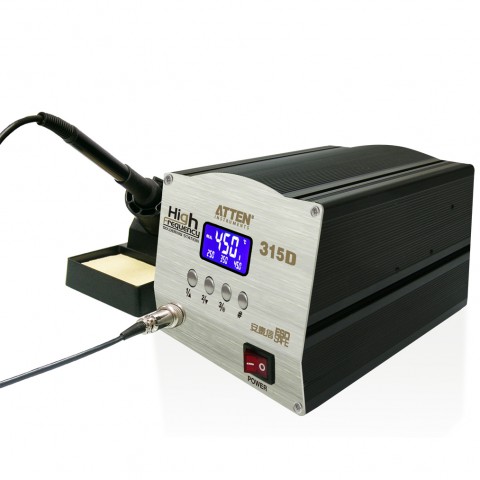

AT315D soldering station is a high-power one with high frequency eddy current heating. It is especially suitable for soldering multilayer PCB, high-frequency shielded shell and high temperature soldering.
Features
- Modern design
- Large LCD
- Microcontroller controlled intelligent temperature control
- Electromagnetic heating element, HF eddy current technology
- High power for fast temperature recovery
- Temperatur display in Celcius or Fahrenheit
- Three memories for temperature settings
Specification:
Input voltage: AC 230V
Heating element voltage: 28V Power consumption: 150W (max)
Size: 138x125x100mm
Temperature stability: ±1°C
Tip to ground impedance <2 ohm
Tip to ground voltage <2mV
Heating elemnt: 150W
Soldering tips: AT300 series
Included soldering tips: -B, -3C, -K
Features
- Modern design
- Large LCD
- Microcontroller controlled intelligent temperature control
- Electromagnetic heating element, HF eddy current technology
- High power for fast temperature recovery
- Temperatur display in Celcius or Fahrenheit
- Three memories for temperature settings
Specification:
Input voltage: AC 230V
Heating element voltage: 28V Power consumption: 150W (max)
Size: 138x125x100mm
Temperature stability: ±1°C
Tip to ground impedance <2 ohm
Tip to ground voltage <2mV
Heating elemnt: 150W
Soldering tips: AT300 series
Included soldering tips: -B, -3C, -K
