Product description

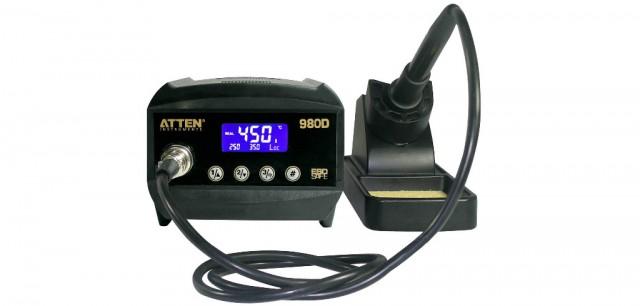

AT980D is a high power (80W) modern soldering station. It has three memories where you can store your temperature settings for different soldering tasks. Modern desig makes it fit into every workbench.
ESD safe design - suitable for work on static-sensitive components
Three programmable preset temperature buttons
Easy to read white-on-blue LCD with temperature in °C or °F
Temperature range: 150°C~450°C (302°F~842°F)
On/Off switch on side of unit
Wide range of soldering tips available separately.
Technical Specifications:
Input Voltage: AC 230V
Input Frequency: 50/60Hz
Power Consumption: 80W (max)
Temperature Range: 150~450°C
Tip and ground impedance: <2 Ohm
Tip and ground potential: <5mV
Heating Element:4 cores,80W
Standard tip: AT-900M
Included in delivery:
- soldering iron with standard tip
- main unit with iron holder
- cleaning sponge
- power cord EU
- users manual
