Product description
The LME49860 is part of the ultra-low distortion, low noise, high slew rate operational amplifier series optimized and fully specified for high performance, high fidelity applications. Combining advanced leading-edge process technology with state-of-the-art circuit design, the LME49860 audio operational amplifiers deliver superior audio signal amplification for outstanding audio performance. The LME49860 combines extremely low voltage noise density (2.7nV/ v ^Hz) with vanishingly low THD+N (0.00003%) to easily satisfy the most demanding audio applications. To ensure that the most challenging loads are driven without compromise, the LME49860 has a high slew rate of ±20V/µs and an output current capability of ±26mA.
Features:
Easily drives 600ohm loads
Optimized for superior audio signal fidelity
Output short circuit protection
PSRR and CMRR exceed 120dB (typ)

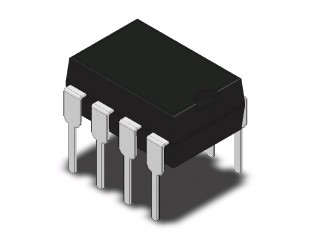

SOIC, DIP packages
Device Uses:
Ultra high quality audio amplification
High fidelity preamplifiers
High fidelity multimedia
State of the art phono pre amps
High performance professional audio
High fidelity equalization and crossover networks
High performance line drivers
High performance line receivers
High fidelity active filters
Parametrics
LME49860
Iq per channel (Max) (mA) 5.25 Vmax (V) 44 THD + N @ 1 kHz (%) 0.00003 Vmin (V) 5 Number of Channels 2 GBW (Typ) (MHz) 55 Vn at Flatband (Typ) (nV/rtHz) 2.7
