Product description

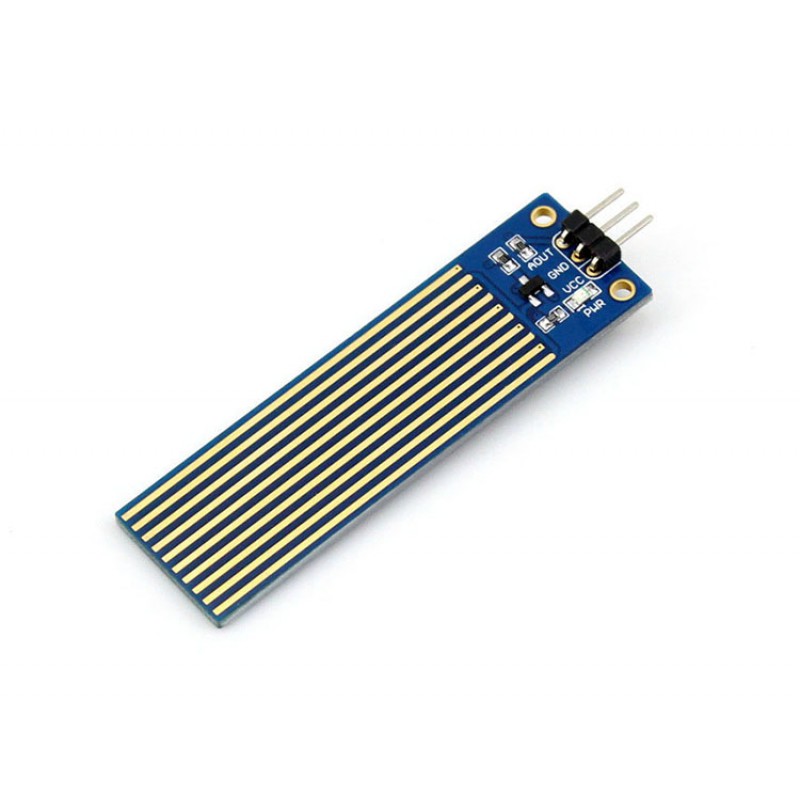

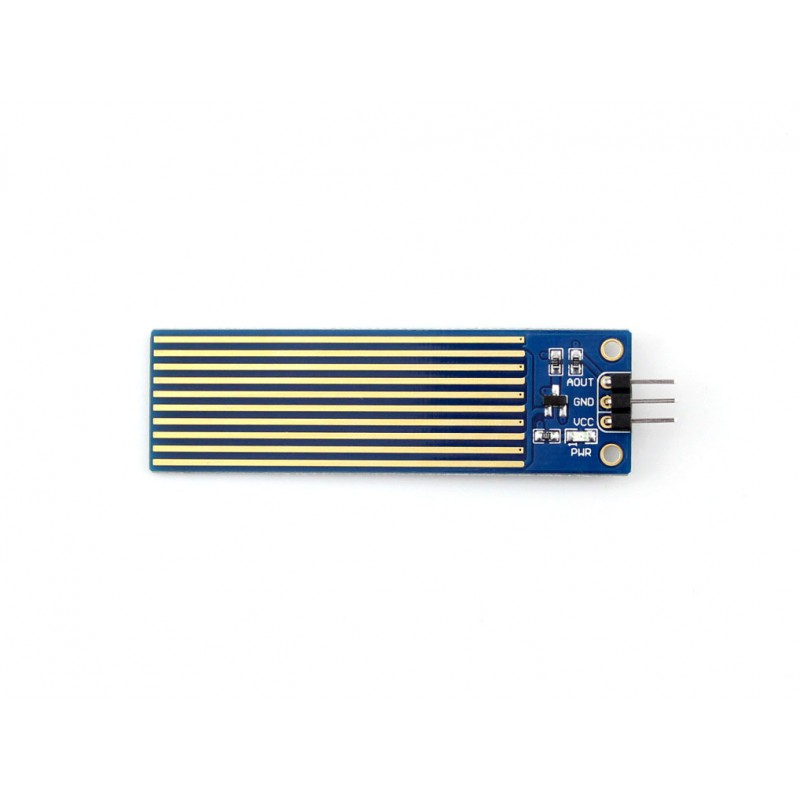

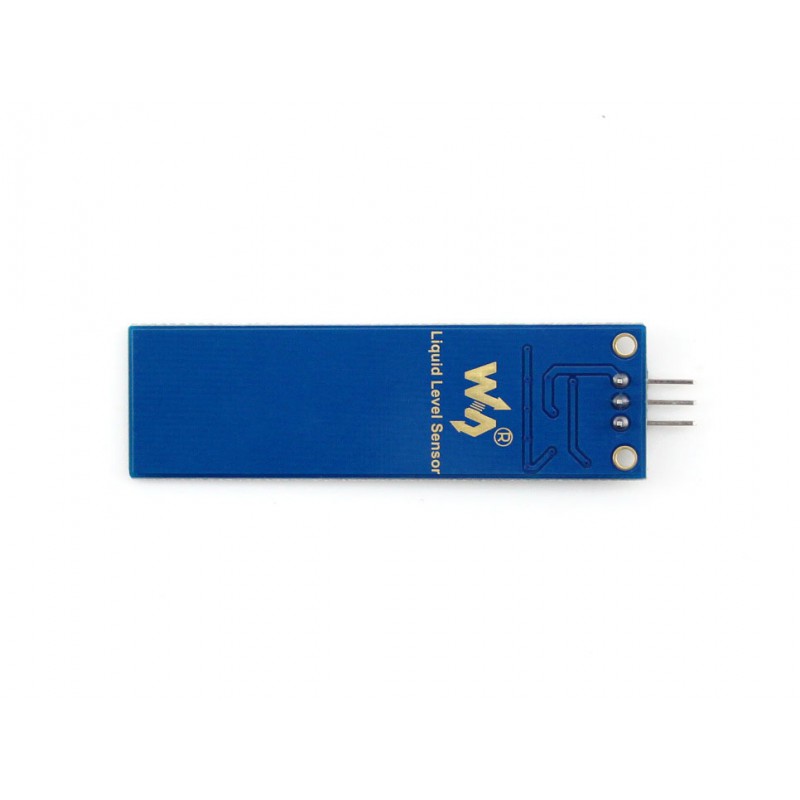

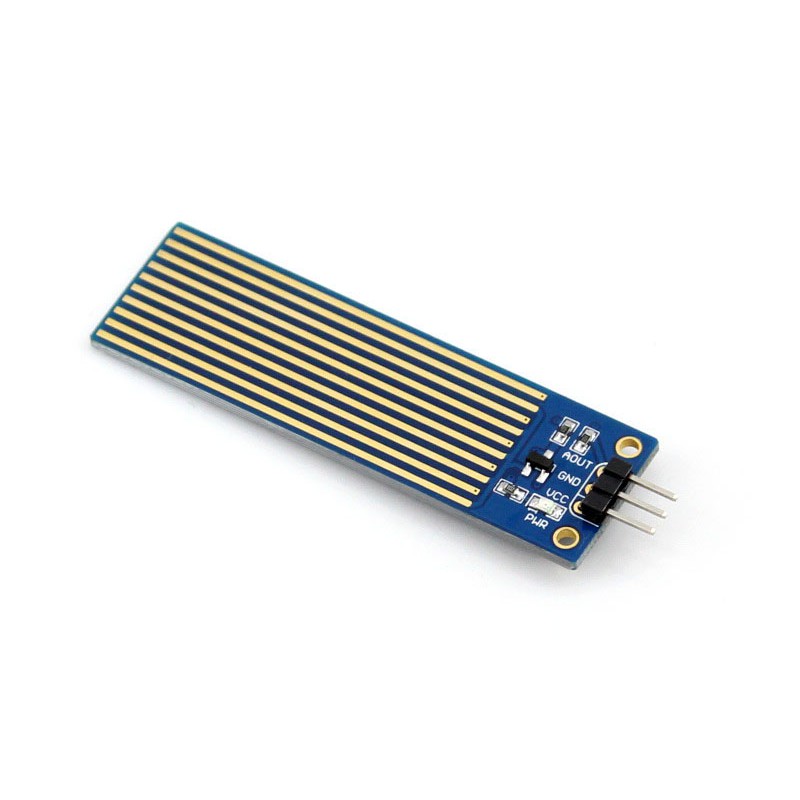

Liquid level sensor with analog output that measures the liquid level by increasing the module output signal with immersion depth. The sensor is intended for vertical installation in containers or systems where liquid levels up to approximately 48 mm need to be detected. It is easy to integrate with microcontrollers. Suitable for applications such as water level alarms or liquid monitoring in projects and automation.

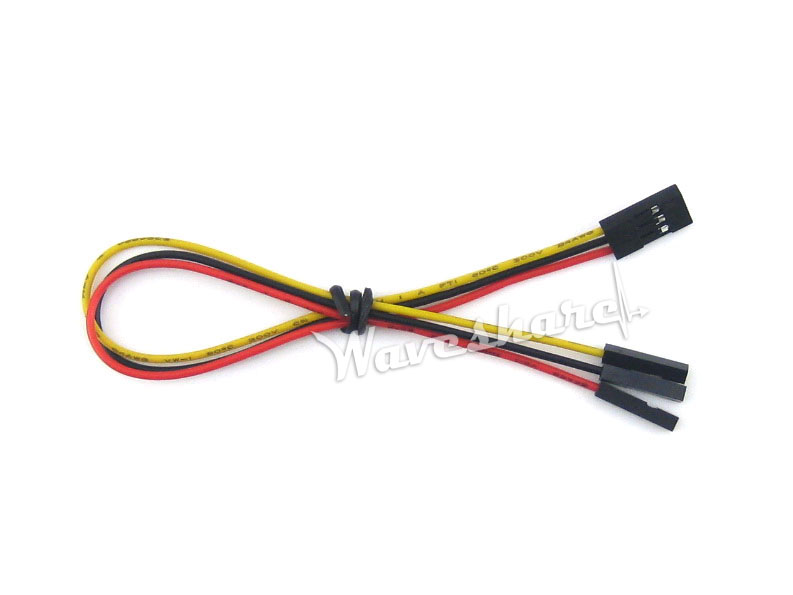

Supplied with connection cable, 3x dupont female.
Specifications:
- Detection depth: 48 mm
- Supply voltage: 3.3 to 5.0 V
- Dimensions: 19 x 63 mm
- Mounting holes: 2 pcs ø2.0 mm
- Output type: Analog output
- Connection: VCC, GND, Analog OUT
