Product description

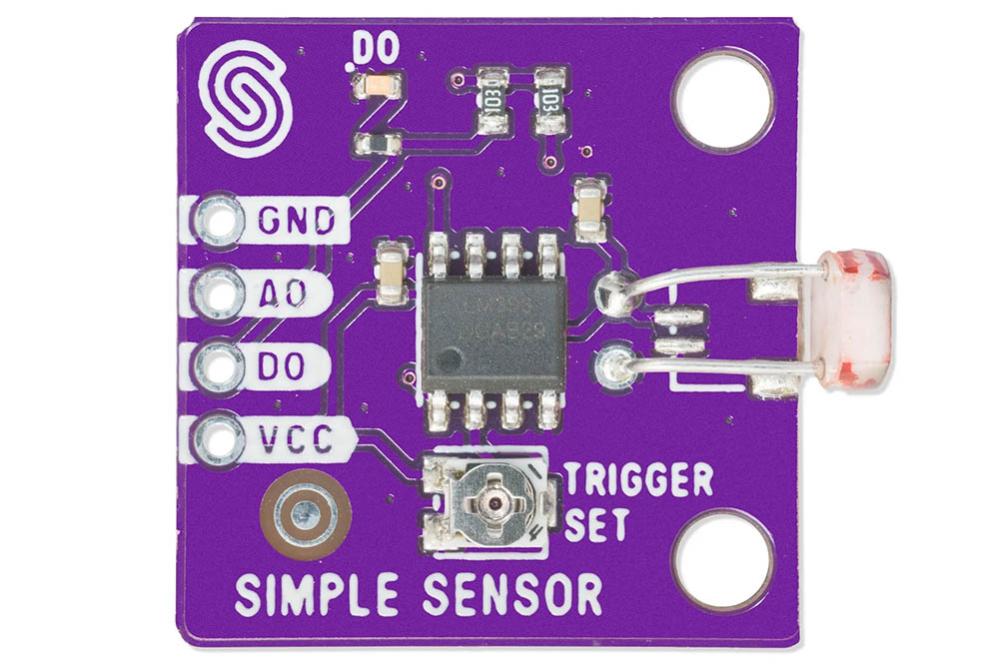

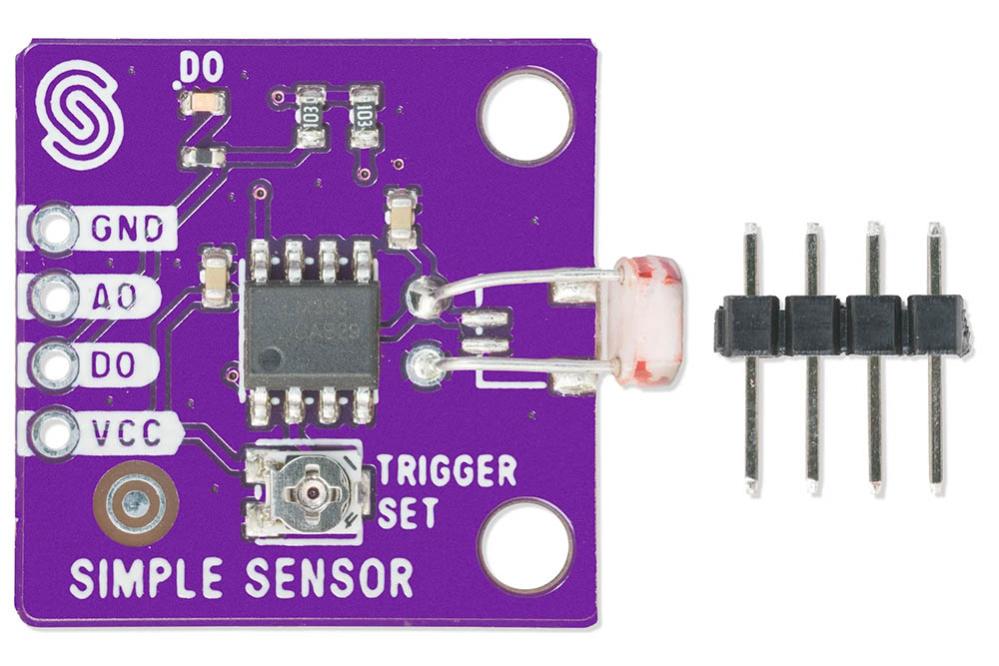

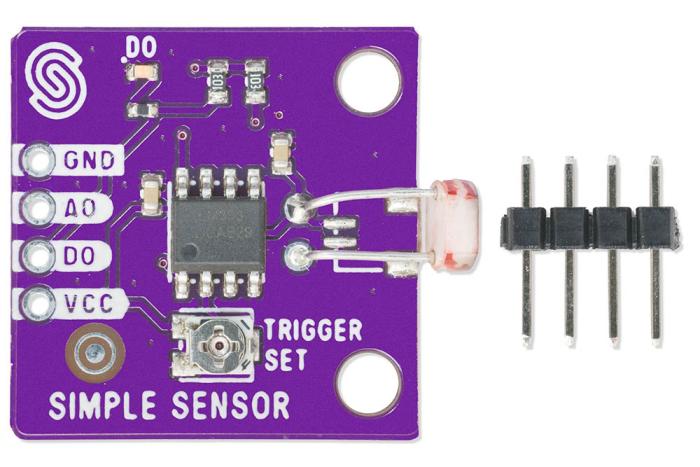

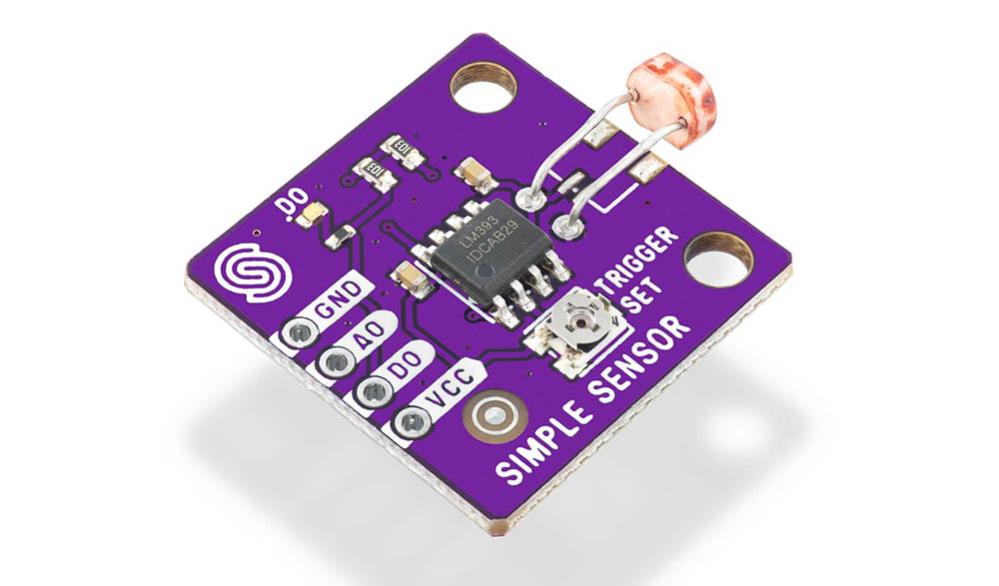

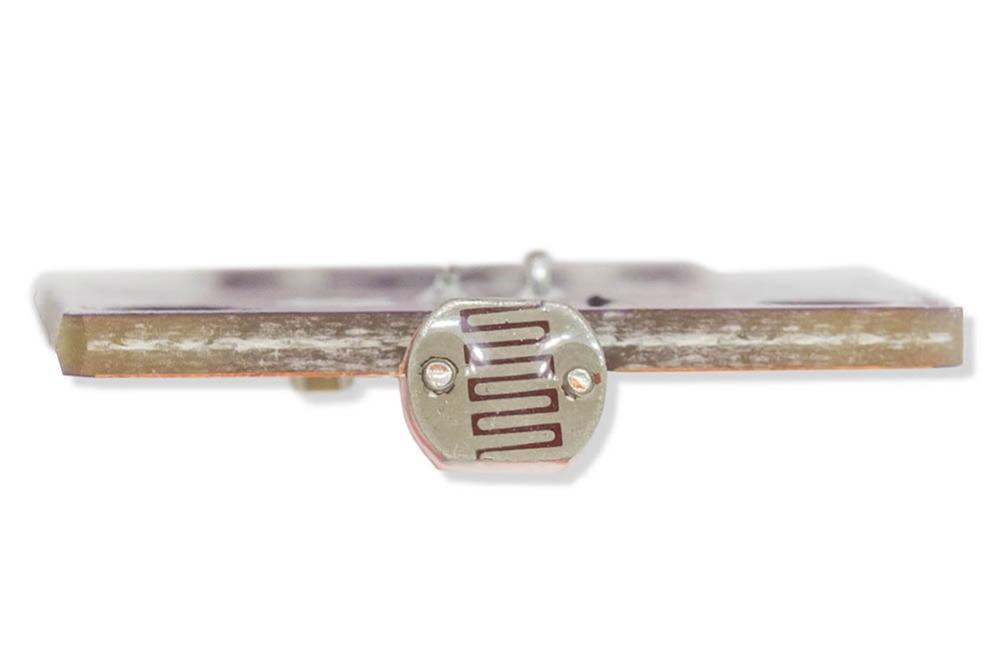

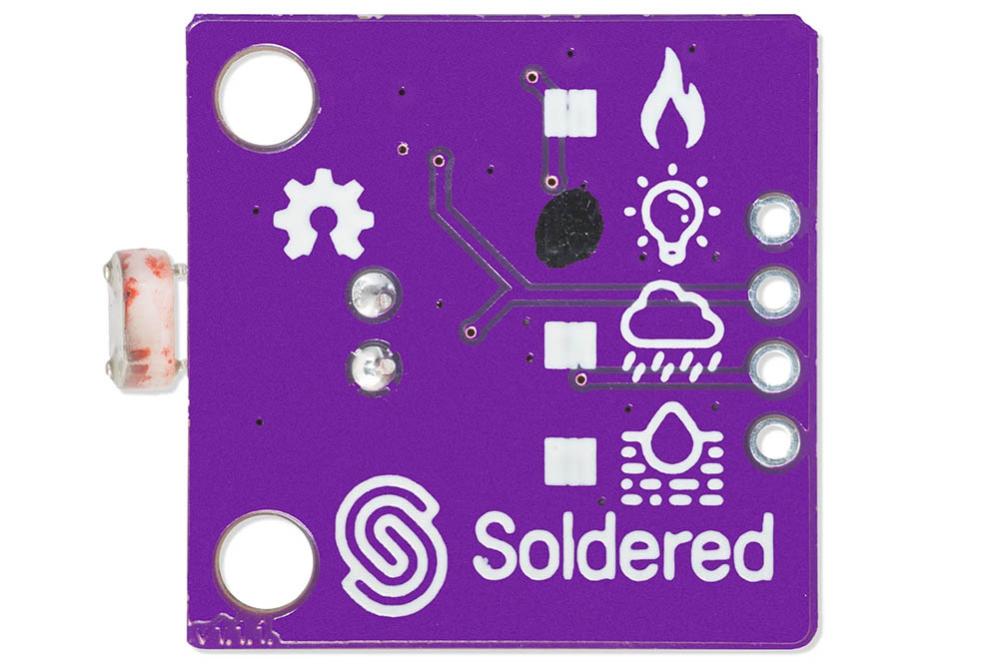

Light sensor with LM393 comparator based on an LDR (Light Dependent Resistor), making it easy to measure and detect light levels in electronic projects. The sensor provides both analog and digital outputs, making it suitable for everything from simple light detectors to automatic lighting systems, plant monitoring, and smart home automation. The integrated LM393 comparator and adjustable potentiometer allow the digital output threshold to be set as required. The board is developed and manufactured within the EU by Soldered.
Specifications:
- Sensor: LDR (Light Dependent Resistor)
- Outputs: Analog and digital
- Comparator: Texas Instruments LM393
- Adjustable sensitivity: Yes
- Supply voltage: 3.3V to 5V
- Logic level: Same as supply voltage
- Mounting holes: 2
- Dimensions: 22 x 22 mm
- Suitable for light detection: Yes
- Open-source hardware: Yes
- User guide with code examples available: Yes
- Pin header: Included (not pre-soldered)
