Product description

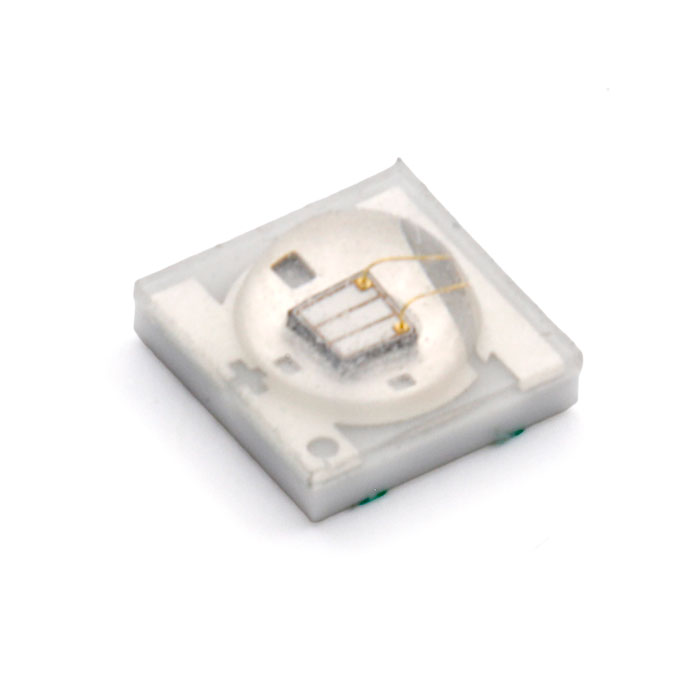

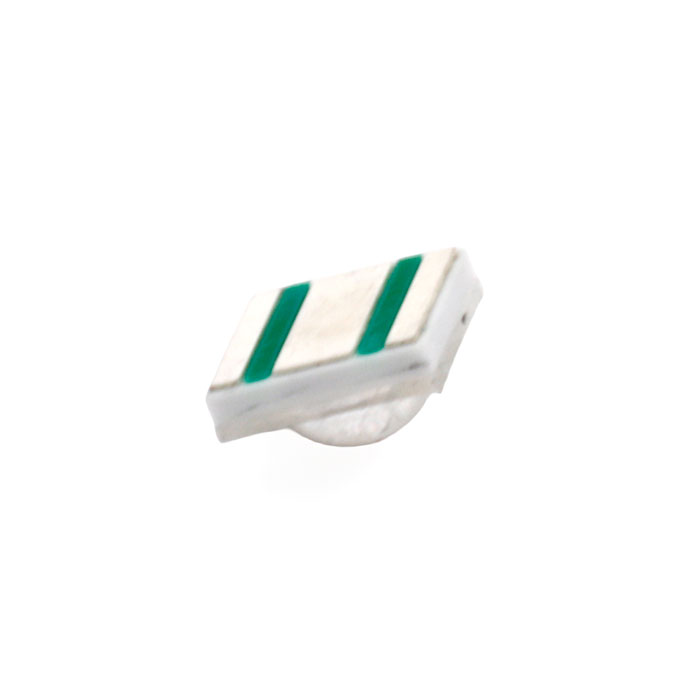

UV-A LED for surface mounting in a 3535 package with a wavelength of 365 nm. The viewing angle is 120°. Intended for applications such as photoresist exposure (PCBs).
Specifications:
- Manufacturer: JNJ Optoelectronics
- Model: JNJ-L-3535AW120B-36530-SL-G1
- Type: UV-A LED
- Mounting: SMD
- Package: 3535
- Peak wavelength: 365 nm
- Spectral bandwidth: 20 nm typ.
- Radiant flux: 850 mW typ. at 350 mA
- Radiant flux: 1500 mW typ. at 500 mA
- Forward current: 350 mA
- Forward current (max): 500 mA
- Pulse current (max): 1000 mA
- Forward voltage: 3.6 V typ., 4.6 V max at 350 mA
- Forward voltage: 4.0 V typ., 4.8 V max at 500 mA
- Reverse voltage (max): 5 V
- Reverse current: 10 µA max at 5 V
- Viewing angle: 120°
- Operating temperature: -40 to +100 °C
- Dimensions: 3.5 × 3.5 × 2.1 mm
- Lens diameter: Ø2.8 mm
