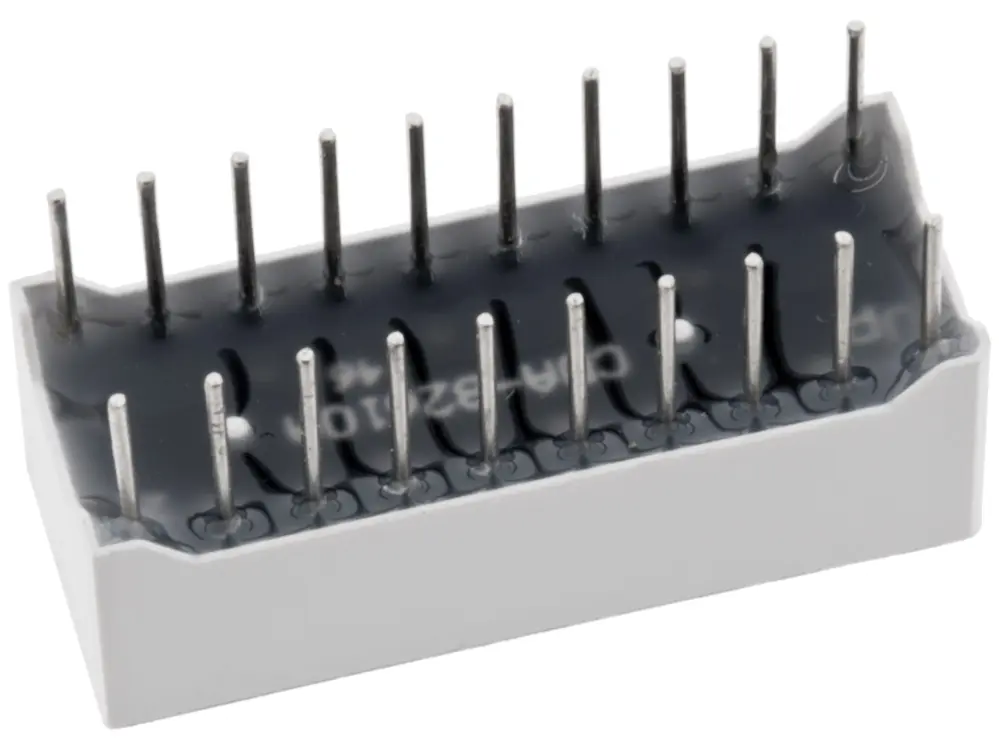

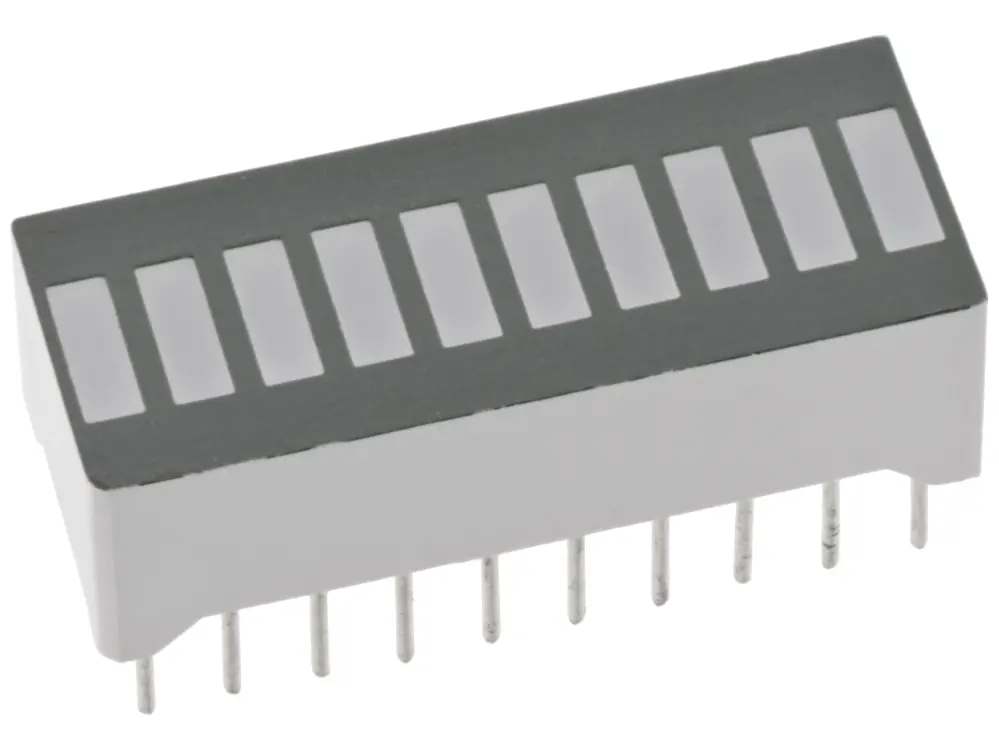

LED bargraph 10-seg white
Art no: 40307806
Do you need assistance?
Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se
Product description
Product description
White LED stack with brightness of 200-400 mcd. 3.3 V forward voltage and 30 mA operating current.
Physical characteristics:
- Size: 25.5x10.1 mm
- Semiconductor material: InGaN/SiC
Optical properties (Ta=25°C):
- Colour: white
- Peak wavelength: X-0.31/Y-0.31
- Lens : Diffused
- Luminous intensity: 200-400 mcd
Electrical properties per segment (Ta=25°C):
- Forward voltage (Vf): 3.3-3.8 V
- Operating current (If): 30 mA
- Power consumption (If: 20mA): 66 mW
- Reverse voltage: 5 V
- Reverse curent: 10uA
- Maximum pulse current IPF (Duty 1/10 @1 kHz): 100 mA
Temperature related characteristics:
- Operating temperature (TOPR): -40°C to +80°C
- Storage temperature (TSTG): -40°C to +85°C
- Maximum soldering temperature 1.6 mm from component enclosure for 3 sec: 260°C
