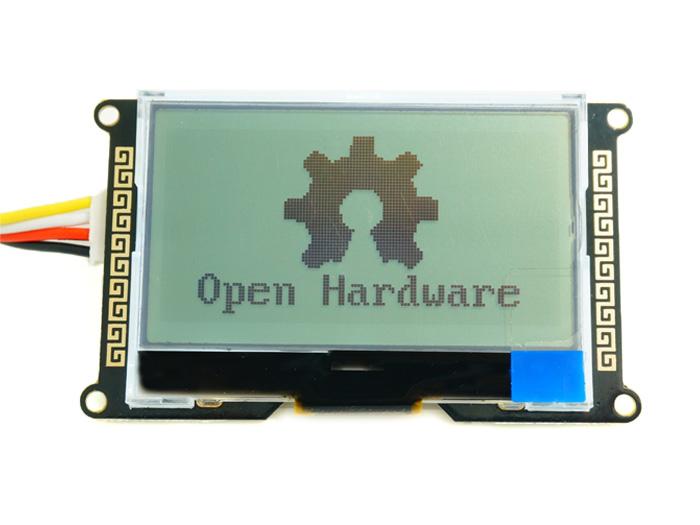

LCD module graphic 128x64px I2C

Small LCD module with 128 x 64 px resolution. The display is controlled via I2C and can show both graphics and text with the I2C_LCD library. A program for converting BMP images to a format the display can use is available for Windows, Linux and MacOS. The backlight and contrast are both adjustable in 128 and 64 steps respectively. The connection for I2C is a 4-pin Grove connector, but there are pads for soldering a regular 2.54mm pitch header under the connector. The Grove connector must be desoldered to access the other pins.

* Controller: STM8S005KBT6 @ 16MHz
* Communication: I2C (100 / 400Kbit/s)
* Supply voltage: 4.5 - 5.5V
* Logic levels: 2.8 - 5.5V
* Dimensions: 63.3 x 37.6 x 10.2mm (incl. connector)
