Product description

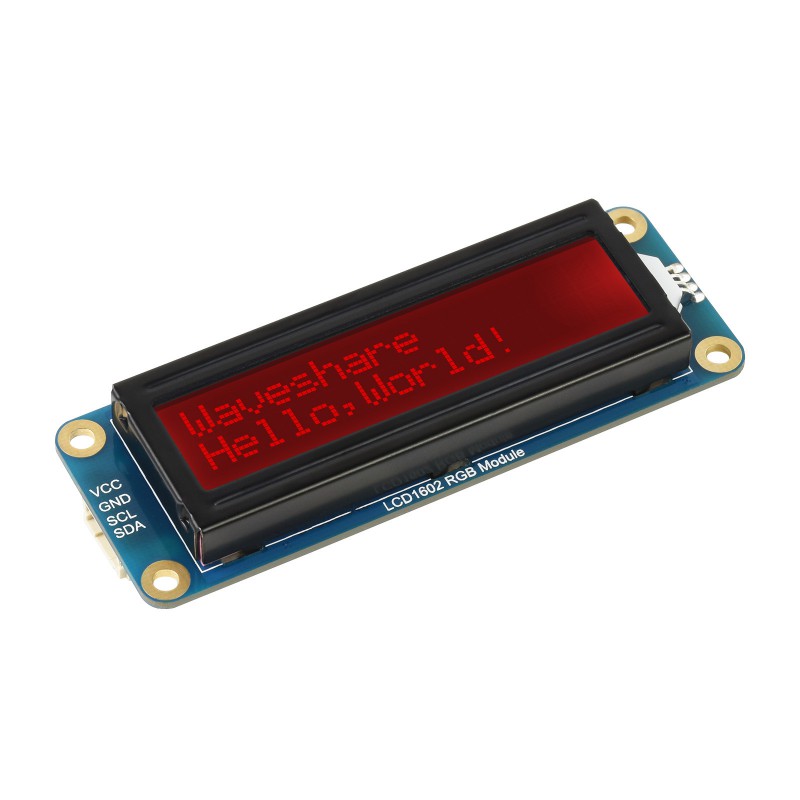

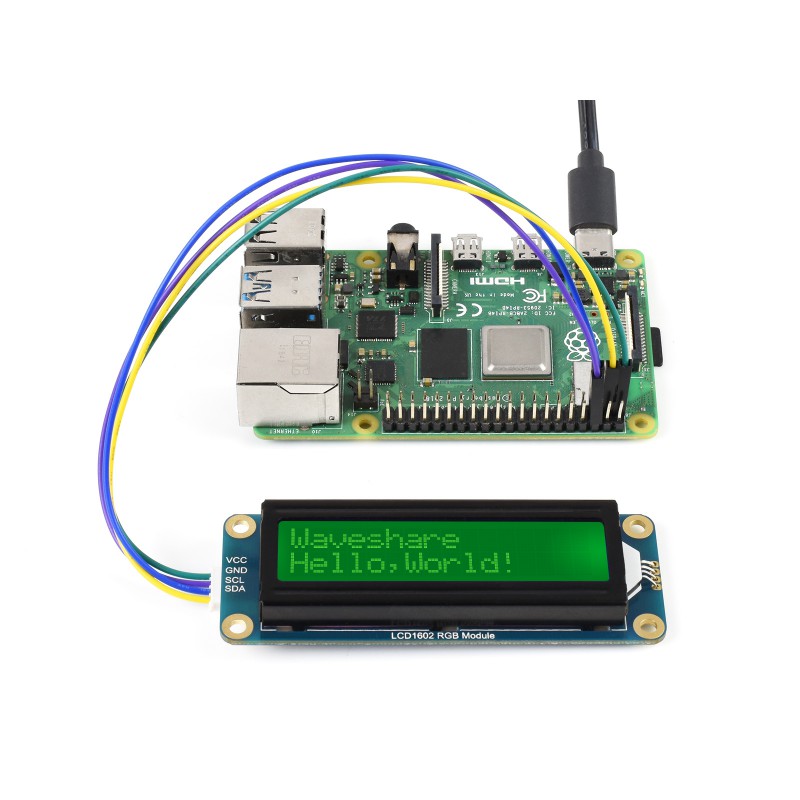

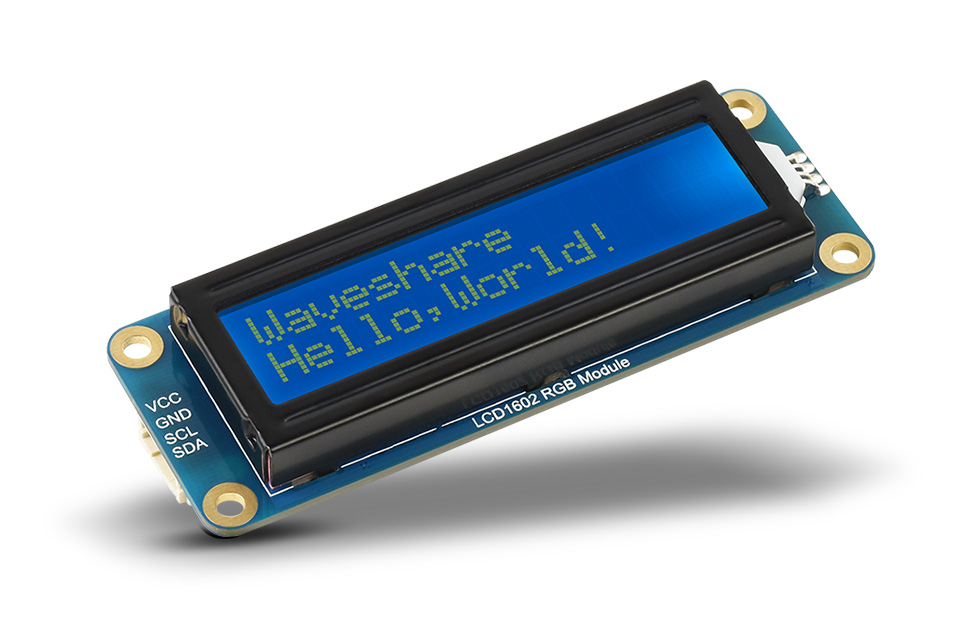

LCD1602 character display with 16 × 2 characters and RGB backlight. The module communicates via I2C and requires only two signal lines, SDA and SCL. The backlight can be set to up to 16 million colors. The module is compatible with both 3.3 V and 5 V, and Waveshare provides examples for Raspberry Pi, Raspberry Pi Pico, Jetson Nano, and Arduino.
Specifications:
- Manufacturer: Waveshare
- Model: LCD1602 RGB Module
- Type: Character LCD
- Number of characters: 16 × 2

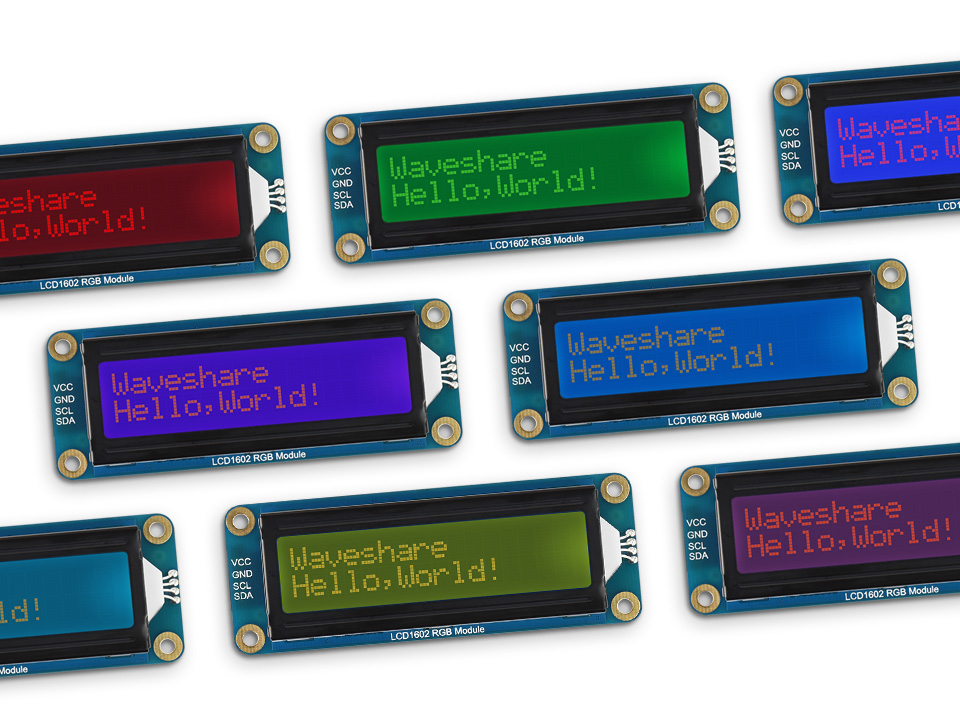

- Backlight: RGB, adjustable
- Number of backlight colors: Up to 16 million
- Interface: I2C

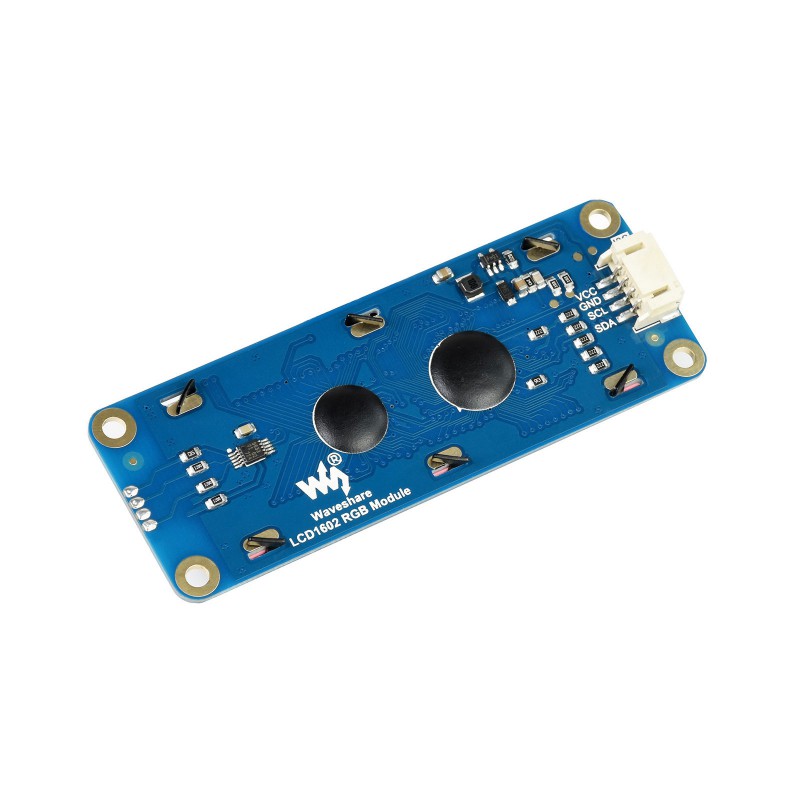

- LCD controller: AiP31068
- RGB controller: PCA9633
- Supply voltage: 3.3–5 V

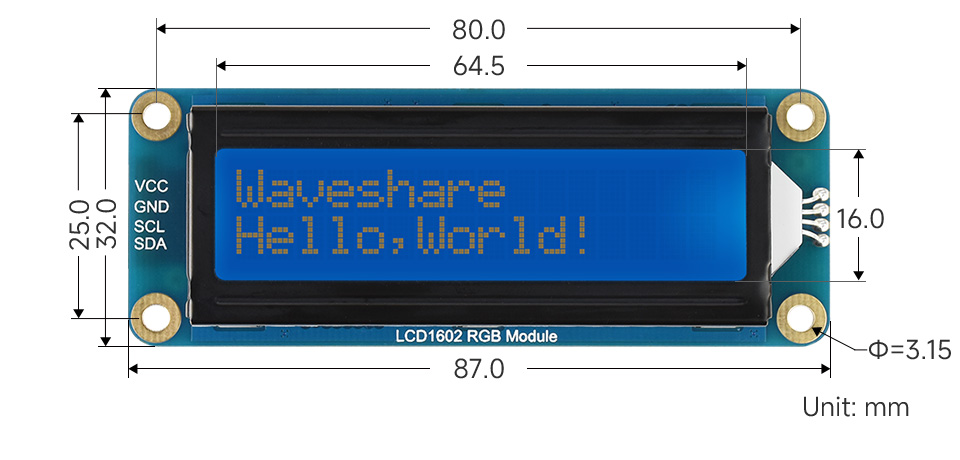

- Display area: 64.5 × 16.0 mm
- Dimensions: 87.0 × 32.0 × 13.0 mm
- Connections: VCC, GND, SCL, SDA
Supplied with:
- PH2.0 4-pin connection cable to 4× Dupont female connectors
