Product description

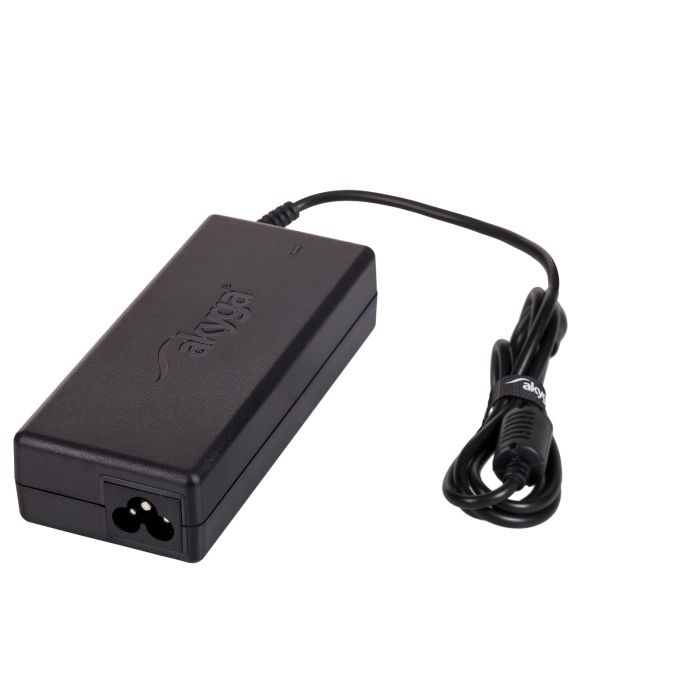

Power supply intended for laptops from Lenovo and IBM as well as other devices powered with 20 VDC. It provides stable output voltage and is designed for continuous operation in both home and office environments.
The unit is equipped with soft start and multiple built-in protection features, including overvoltage protection, overcurrent protection, overload protection, overtemperature protection, and short circuit protection. The integrated ferrite core reduces interference and protects connected equipment from high-frequency noise.
Specifications:
- Model: AK-ND-50
- Supply voltage: 100–250 VAC
- Output voltage: 20 VDC
- Current: 2.25 A
- Power: 45 W

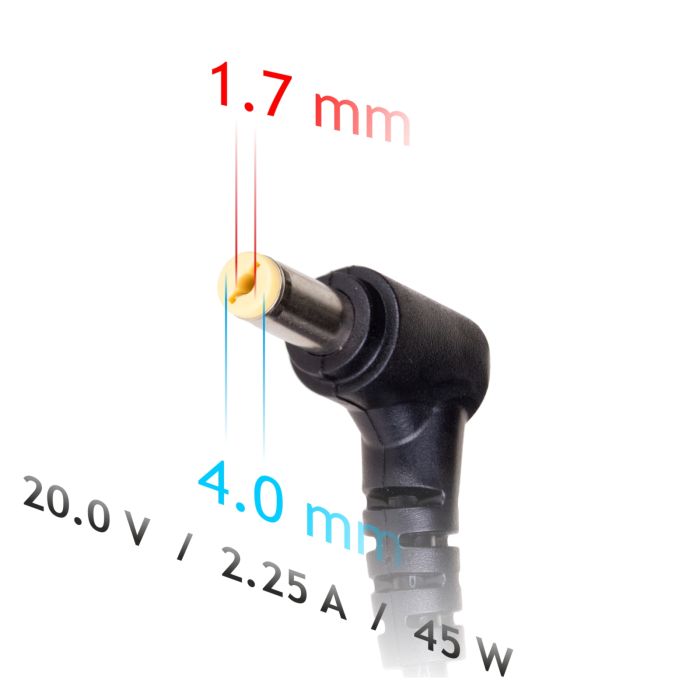

- DC connector: 4.0 x 1.7 mm
- Cable length: 1.2 m

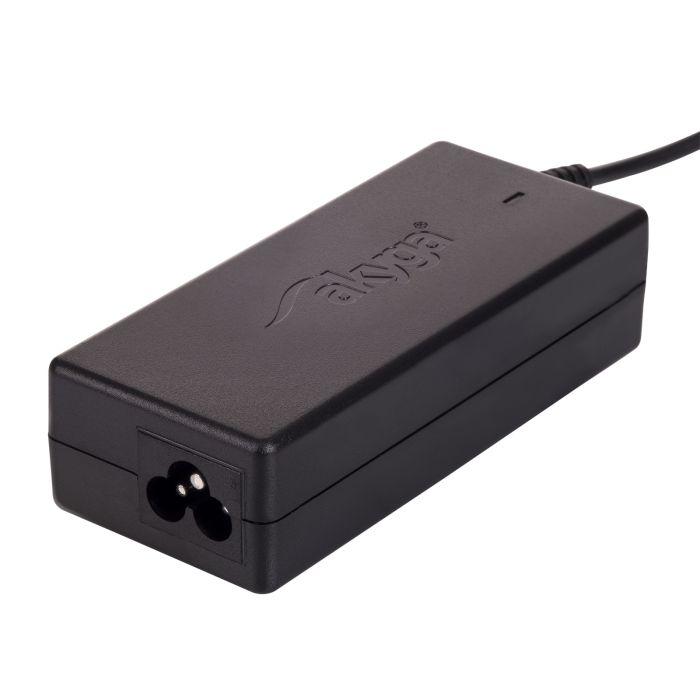

- Power input: IEC C6 (power cord IEC C5 not included)
- Soft start: Yes
- Protection: OVP, OCP, OPP, OTP, SCP
- Efficiency: > 80 %
- Material: ABS
- Color: Black
- Indicator: Green LED
- Operating temperature: 5–50 °C
- Dimensions: 114 x 49 x 30 mm
- Weight: 190 g
- Certifications: CE, FCC, RoHS, REACH
