Product description

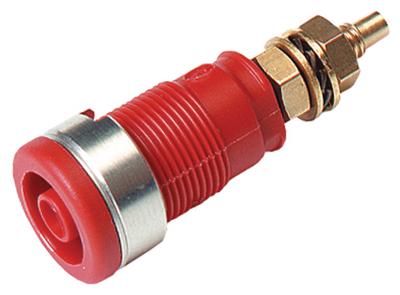

SKS Hirschmann SEB-2620-F6.3 is a touch-protected 4mm safety socket for mounting in panels with a wall thickness of 1-10 mm. The socket features a 6.3 x 0.8 mm flat tab connection according to DIN 46 244 and a gold-plated brass contact.
Specifications:
- Color: Red
- Connection: 6.3 x 0.8mm flat tab
- Rated voltage (max): 1000V AC/DC
- Measurement category: CAT III according to IEC 61010
- Rated current: 32A
- Socket material: Gold-plated brass
- Housing material: PA
- Temperature range: -40°C to +80°C
- Flammability rating according to UL 94: V-2
- Mounting hole: Ø12mm
- Panel thickness: 1-10mm
