Power supply Siglent 1x 0-30V 0-5A SPD1305X

Art no: 41016777 - Siglent
Shop this product, Power supply Siglent 1x 0-30V 0-5A SPD1305X
price 3 499 SEK
Including 25% VAT
Out of stock
Unit: Piece

10 000 products

Quick dispatch

Nordics and EU shipping available

Do you need assistance?

Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se

Product description

OpenClose

Product description

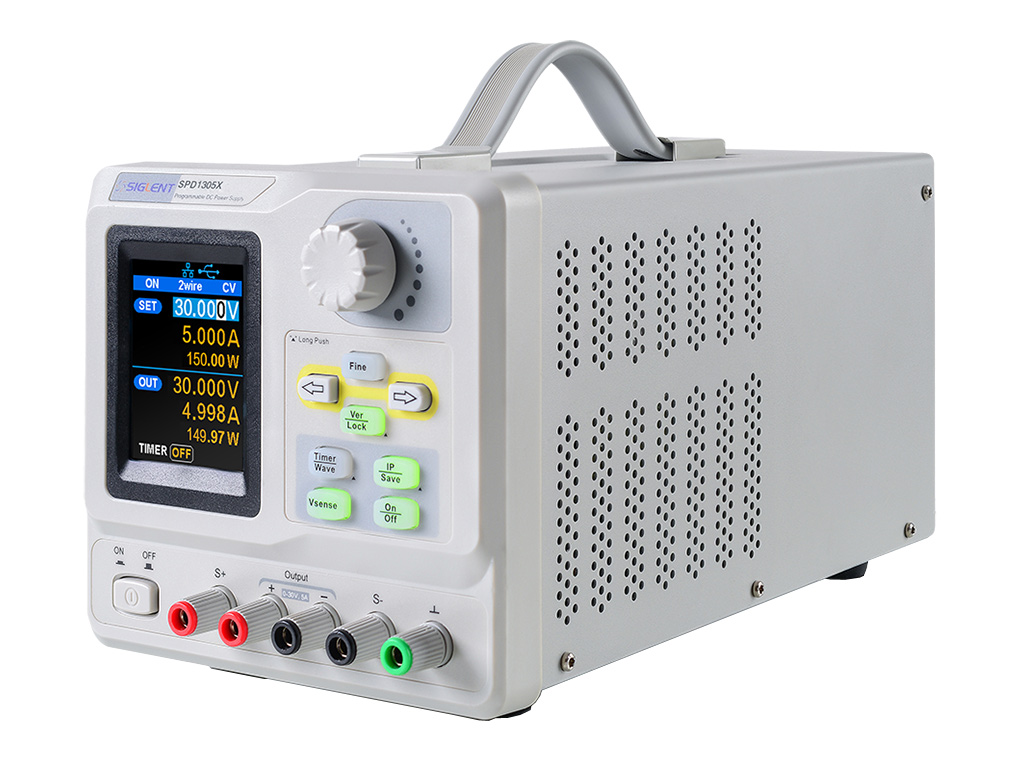

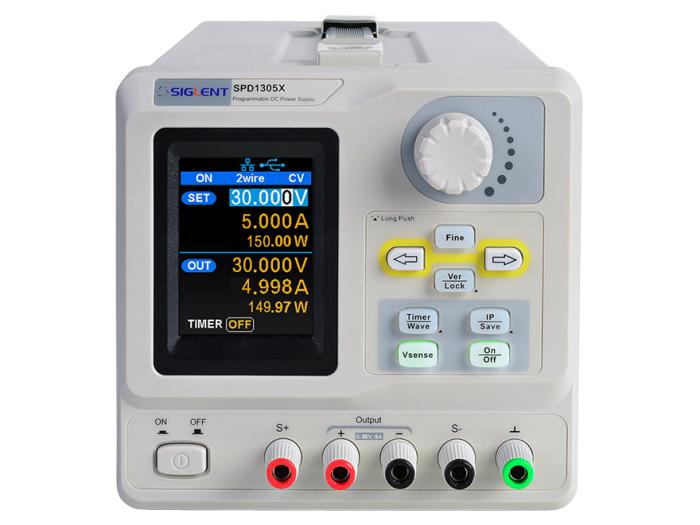

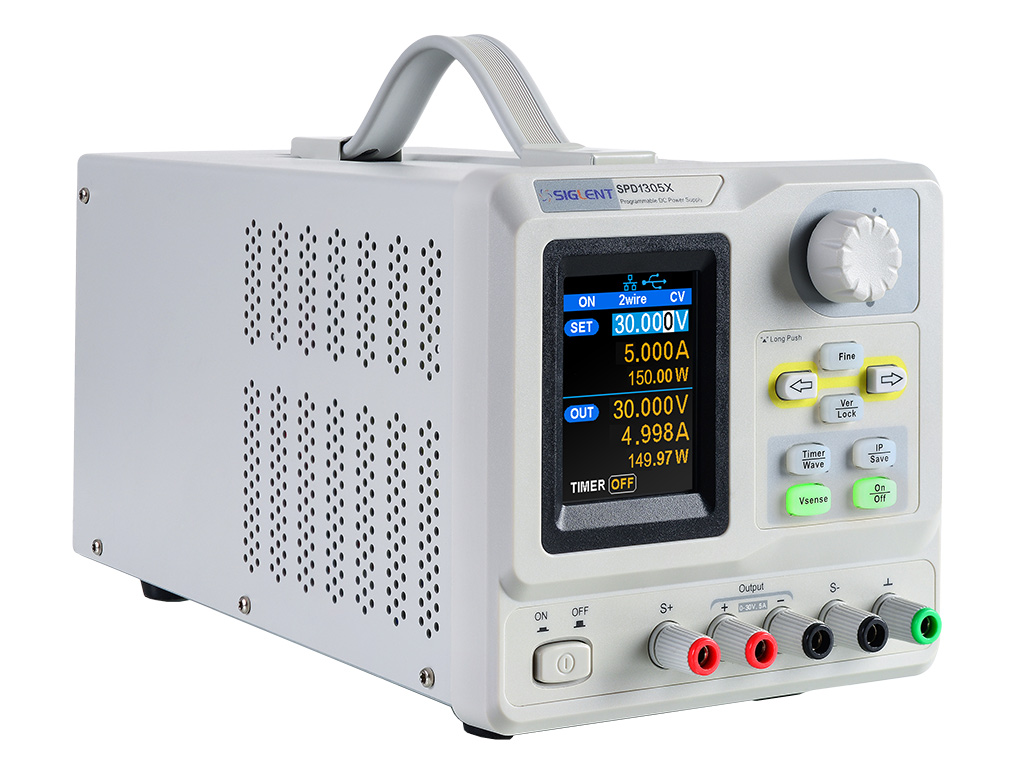

SPD1305X Programmable Linear DC Power Supply has a 2.8 inch TFT-LCD display, features remote computer control capability, and real time wave display, to deliver high performance and ease-of-use. The SPD1305X features a high precision programmable output capable of delivering up to 30 V and also includes a 4-wire sense function for more accurate voltage sourcing, especially for long leads or high resistance connections. There are additional output short and overload protect functions to assist in production and development applications..

Features:
Single path high-precision programmable voltage output: 30V / 5A,total power up to 150W
Stable, reliable, Low ripple and noise:= 350 uVrms/3 mVpp; < 2 mArms
Fast transient response time: < 50 µs
5 digit Voltage, 4 digit Current Display, Minimum Resolution: 1 mV/1 mA
Supports front panel timing output functions
2.8 inch true color TFT- LCD 240 *320 display
2 types of output modes:Two-wire output mode, 4-wire compensation output mode,Maximum compensation voltage 1V.

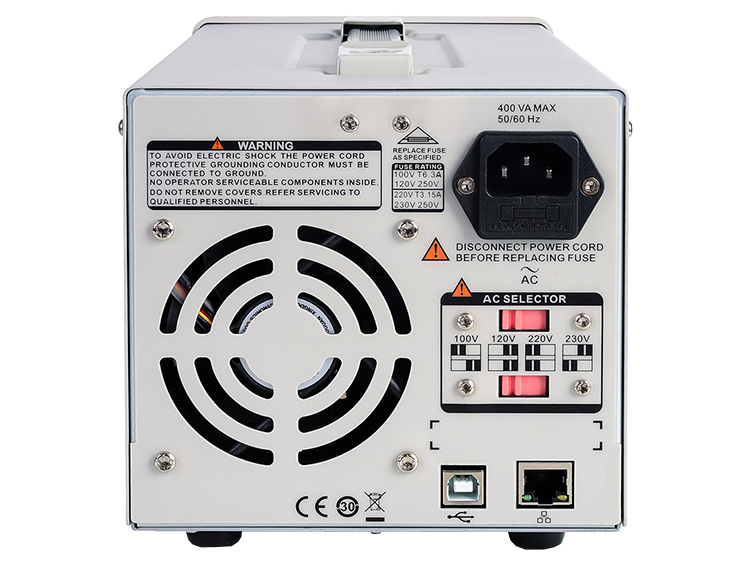

100/120/220/230 V compatible design to meet the needs of different power grids
Intelligent temperature-controlled fanreduces noise
Clear graphical interface, with the waveform display function
Internal 5 groups of system parameter save/recall
Includes PC software: Easypower, supports SCPI, LabView driver

Product information

  • SKU:

    41016777
  • MPN:

    SPD1305X
