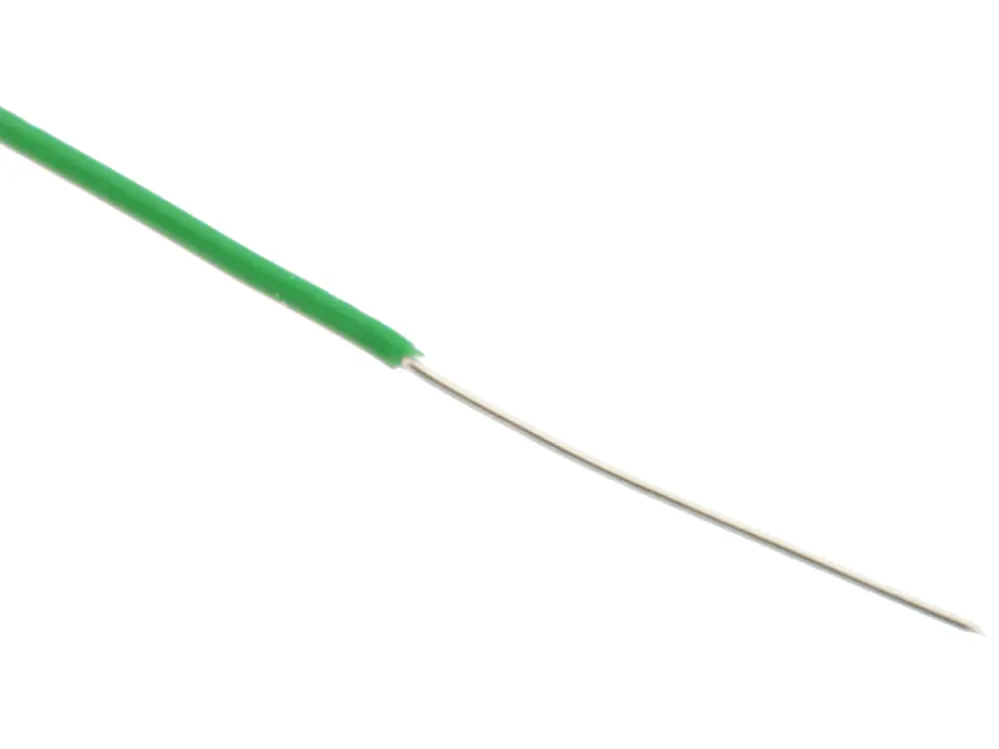

Hookup wire 0.05mm² 50m green
Art no: 41015046
Do you need assistance?
Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se
Product description
Product description
Thin, solid-core hookup wire for repair work, prototypes and wire-wrap. Very high temperature range.
* Insulation: ETFE
* Temperature range: -65°C to +160°C
* Max voltage: 300V
* Max current: 2.6A
* Outer diameter: 0.55mm
* Conductor diameter: 0.254mm
* Conductor area: 0.05mm² (AWG30)
* Conductor material: silver plated copper
* Insulation: ETFE
* Temperature range: -65°C to +160°C
* Max voltage: 300V
* Max current: 2.6A
* Outer diameter: 0.55mm
* Conductor diameter: 0.254mm
* Conductor area: 0.05mm² (AWG30)
* Conductor material: silver plated copper
Technical data
| Attribute | Value |
|---|---|
|
Awg
|
30
|
|
Color
|
Grön
|
|
Conductor-area
|
0.05
|
|
Conductors
|
1
|
|
Outer-diameter
|
0.55
|
|
Rohs
|
RoHS-kompatibel
|
|
Sheath-material
|
ETFE
|
|
Shielded
|
Nej
|
|
Strands
|
Entrådig
|
|
Temperature
|
-65/+130 °C
|
SKU:
41015046
