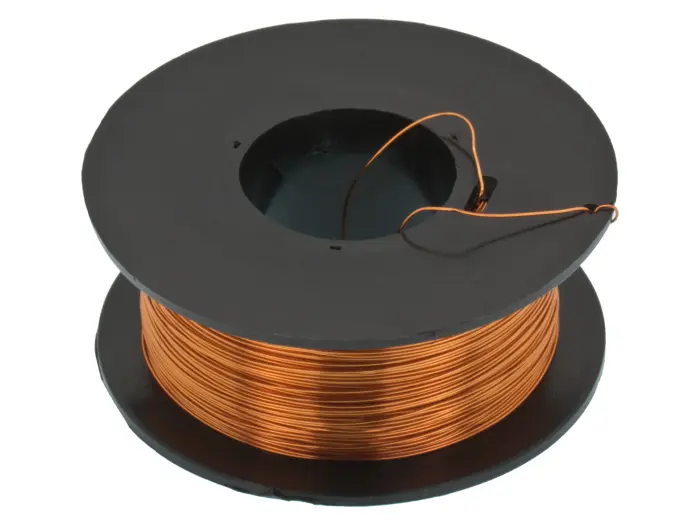

Copper wire 0.05mm reel 5400m
Art no: 41011227
Do you need assistance?
Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se
Product description
Product description
Insulated copper wire for coils, transformers, etc. The wire is directly solderable up to ø0.9mm. Dimensions above ø0.9mm can be soldered after stripping. Stripping is done by heating the wire and then scraping it off with e.g. a knife.
Specifications:
- Length: 5400 m
- Conductor area: 0.002 mm²
- Diameter (ø): 0.05 mm
- AWG: 44
- Temperature range: 200°C
- Insulation: PUR (polyurethane)
- Weight: 100 g
Documents
Technical data
| Attribute | Value |
|---|---|
|
Awg
|
44
|
|
Color
|
Koppar
|
|
Conductor-area
|
0.002
|
|
Conductors
|
1
|
|
Outer-diameter
|
0.05
|
|
Rohs
|
RoHS-kompatibel
|
|
Sheath-material
|
PUR
|
|
Shielded
|
Nej
|
|
Strands
|
Entrådig
|
SKU:
41011227
