Product description

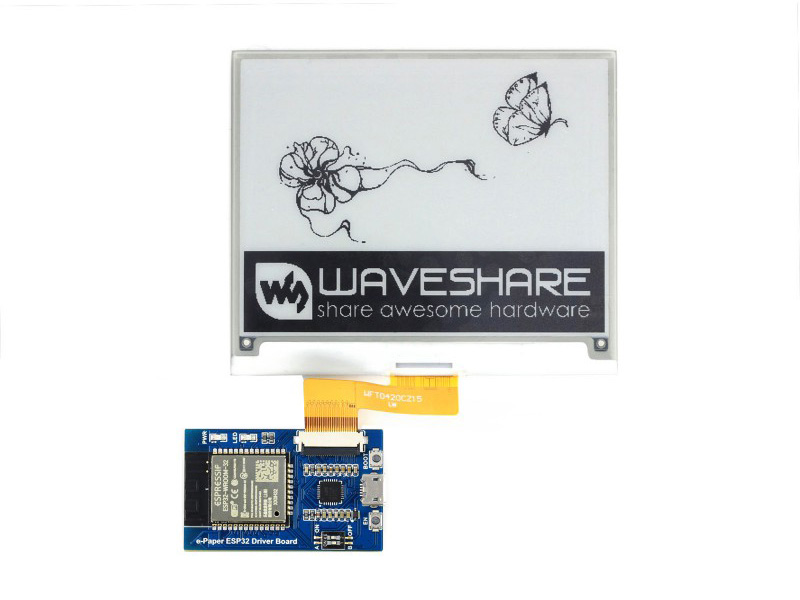

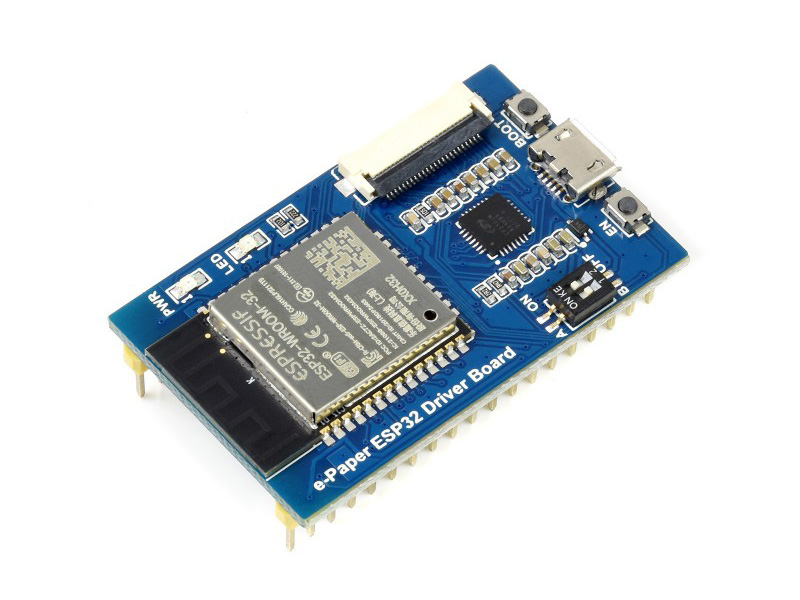

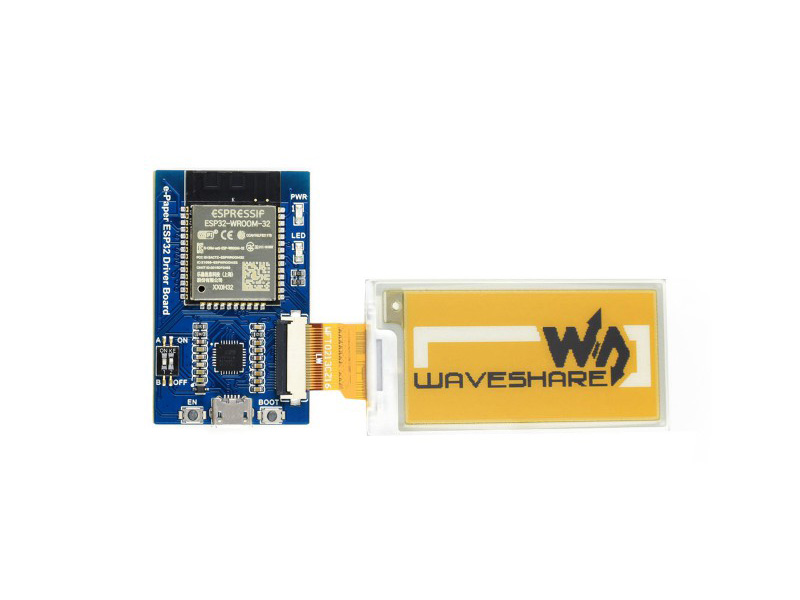

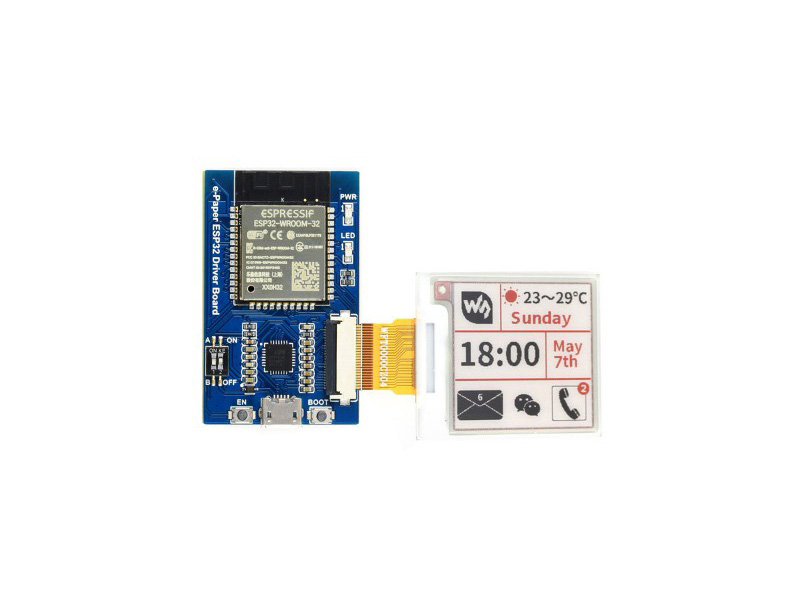

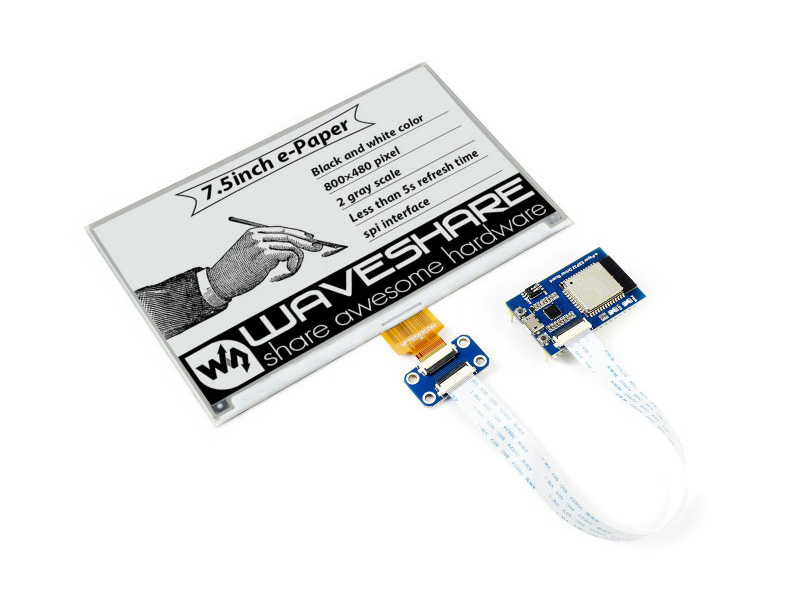

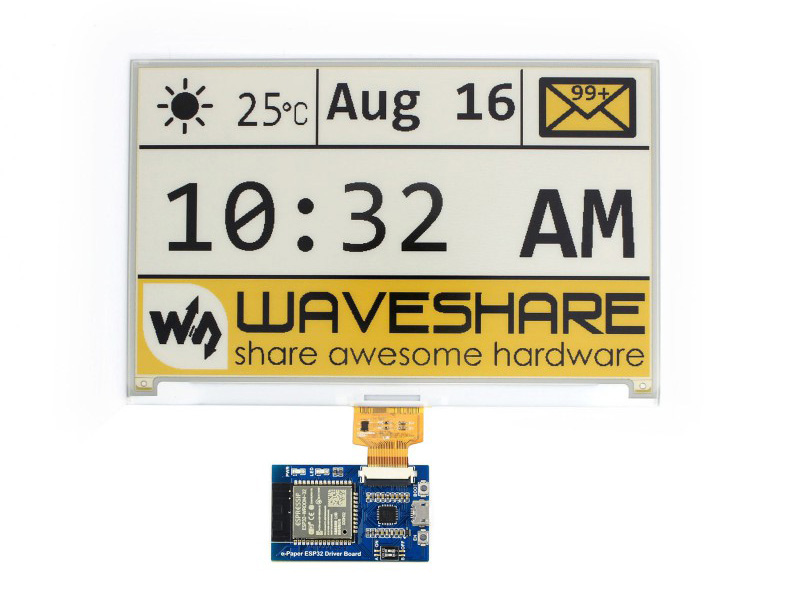

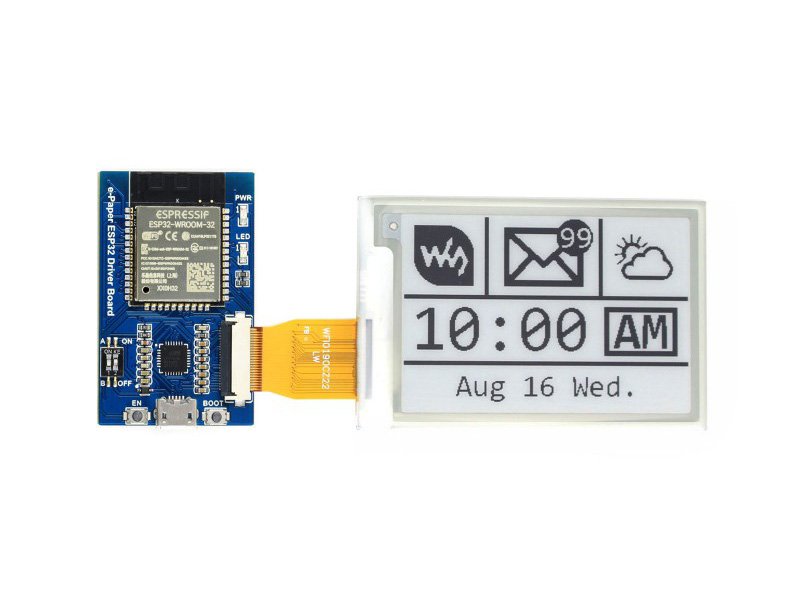

Waveshare e-Paper ESP32 is a universal driver board for Waveshare SPI e-Paper displays. The board features an ESP32 with WiFi and Bluetooth and can be used to update e-Paper content via Android app, Bluetooth EDR, or a remote web page. The board includes support for Arduino development, common image formats, and Floyd-Steinberg dithering for improved image rendering.
Specifications:
- Model: e-Paper ESP32 Driver Board
- WiFi protocol: 802.11b/g/n
- Bluetooth protocol: Bluetooth 4.2, BR/EDR and BLE

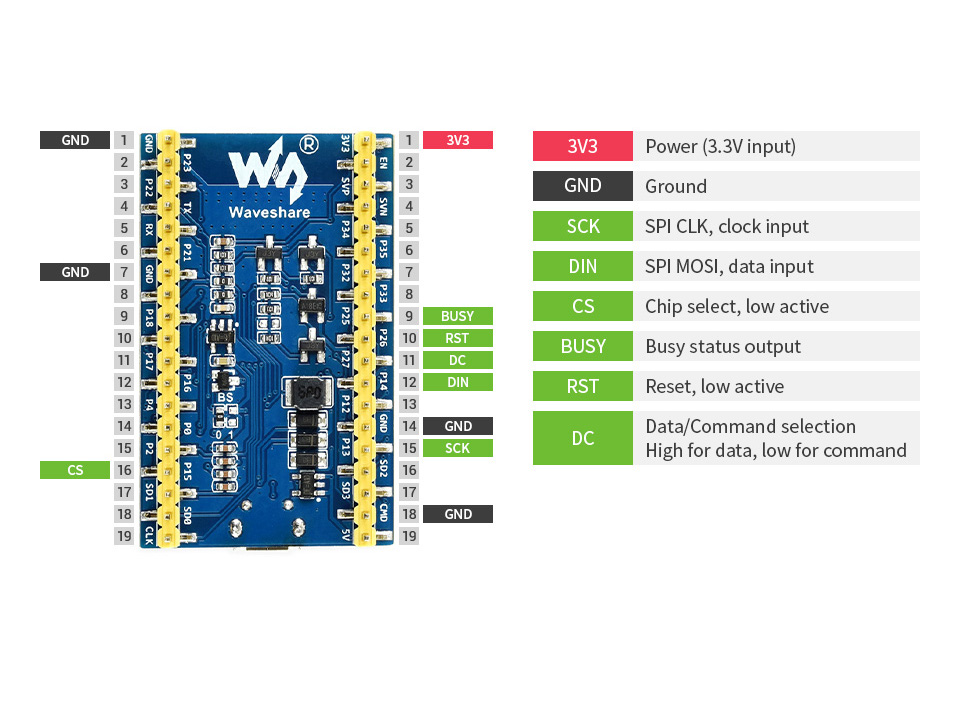

- Interface: 3-wire SPI, 4-wire SPI
- Standard interface: 4-wire SPI
- Supply voltage: 5V
- Current consumption: 50 to 150mA
- Low power mode current consumption: <2mA

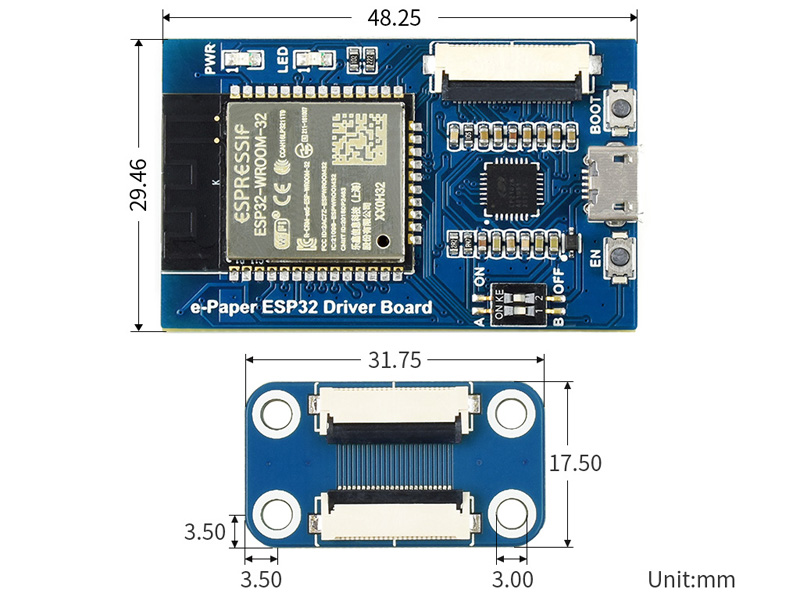

- Dimensions: 29.5 x 48.3mm
