Product description

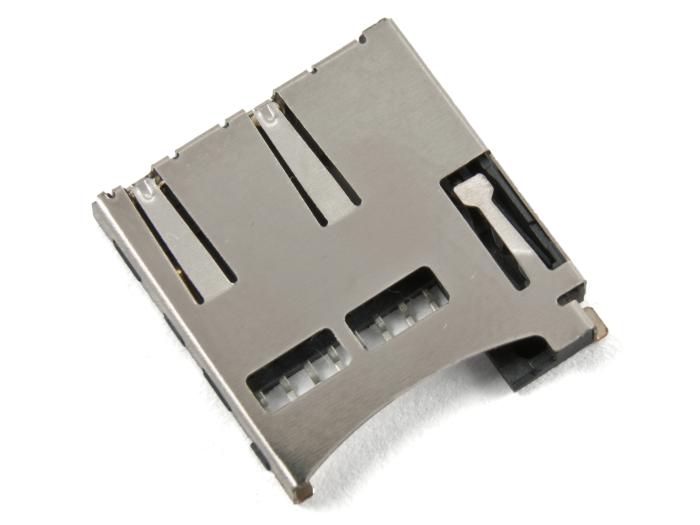

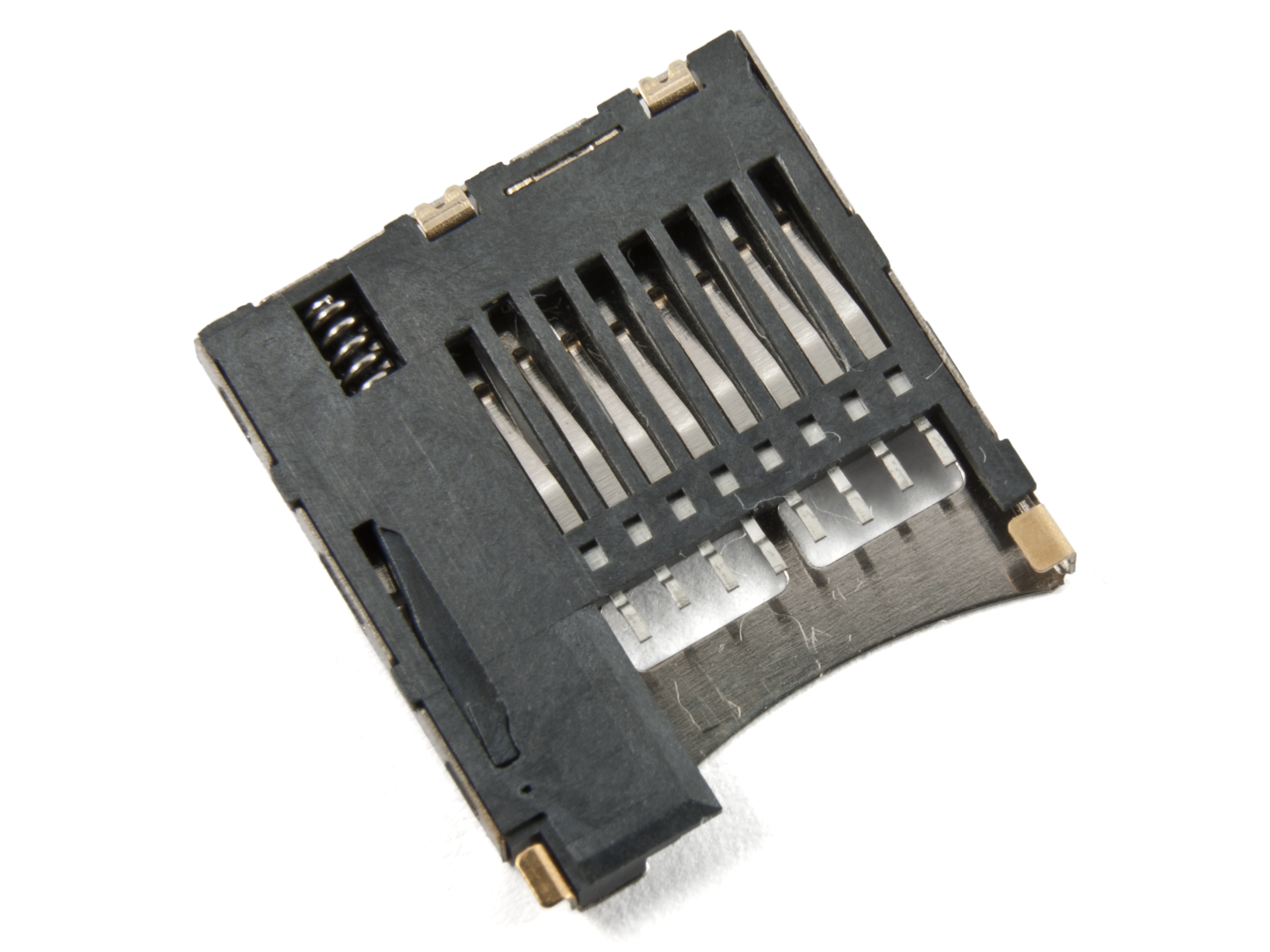

MicroSD card holder for SMD mounting. Designed for microSD / TF cards and uses a push-push mechanism where the card is pushed in to lock and pushed again for ejection. The low profile height of 1.8 mm makes it suitable for compact designs.
Specifications:
- Type: MicroSD / TF card holder
- Number of contacts: 8
- Mounting type: Surface mount (SMD)
- Orientation: Straight
- Card insertion: Push-push
- Profile height: 1.8 mm
- Current rating (max): 0.5A per contact
- Operating temperature: -25°C to +85°C
- Contact resistance: ≤40 mΩ
- Durability: 5000 insertion/removal cycles
- Resistance to soldering heat: 255±5°C for 2min
