Product description

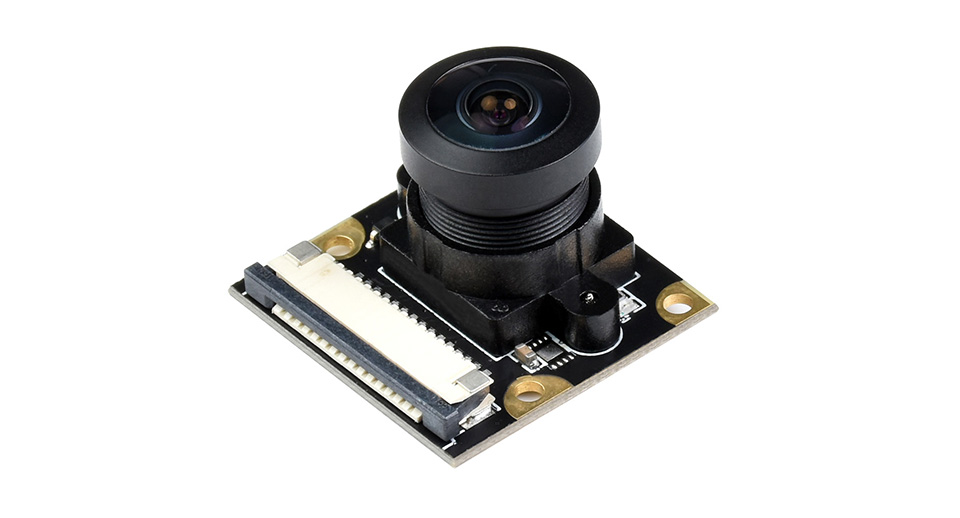

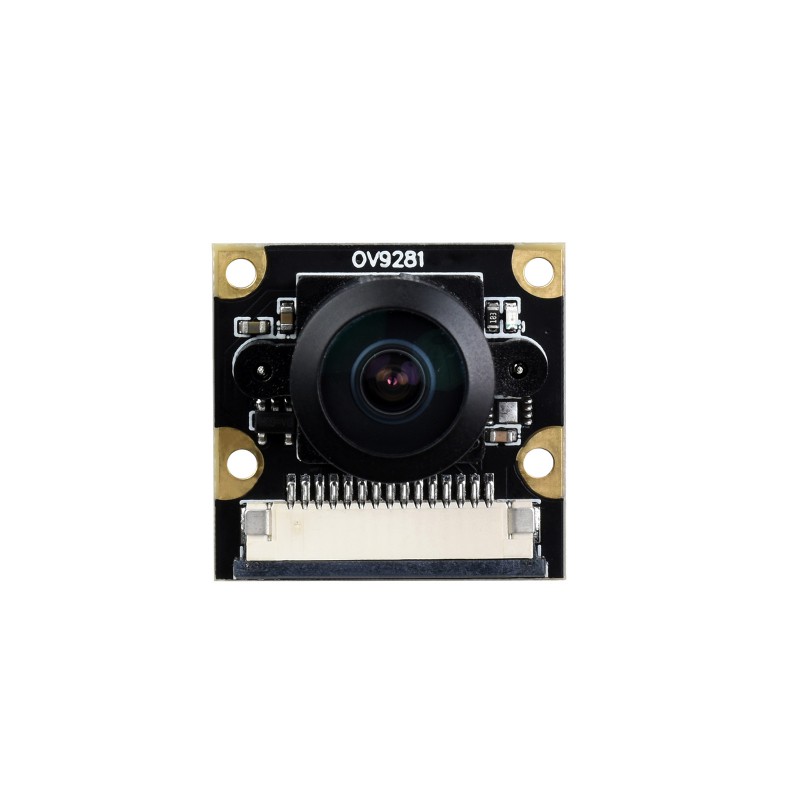

Global shutter camera for Raspberry Pi with OV9281 sensor and 160° field of view. The camera module features a monochrome image sensor, 1MP resolution, and global shutter technology that eliminates rolling shutter effects when capturing fast motion. The camera is suitable for machine vision, robotics, AI, SLAM, and high frame rate applications where low distortion and fast readout are desired. It connects via the CSI interface and is compatible with several Raspberry Pi models including Raspberry Pi 5 and Zero 2W.
Specifications:
- Sensor: OV9281 CMOS
- Sensor type: Monochrome
- Sensor size: 1/4inch
- Resolution: 1MP
- Still image resolution: 1280 x 800
- Shutter type: Global shutter
- Aperture: F2.35
- Focal length: 3.15mm
- Field of view: 160° diagonal, 126° horizontal, 91° vertical
- Focus: Manual focus

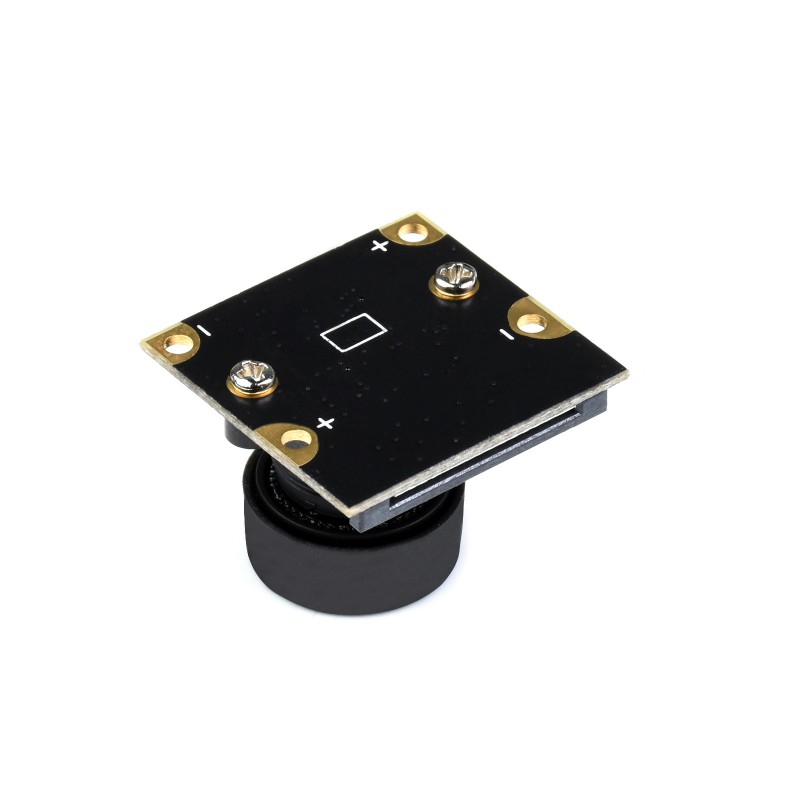

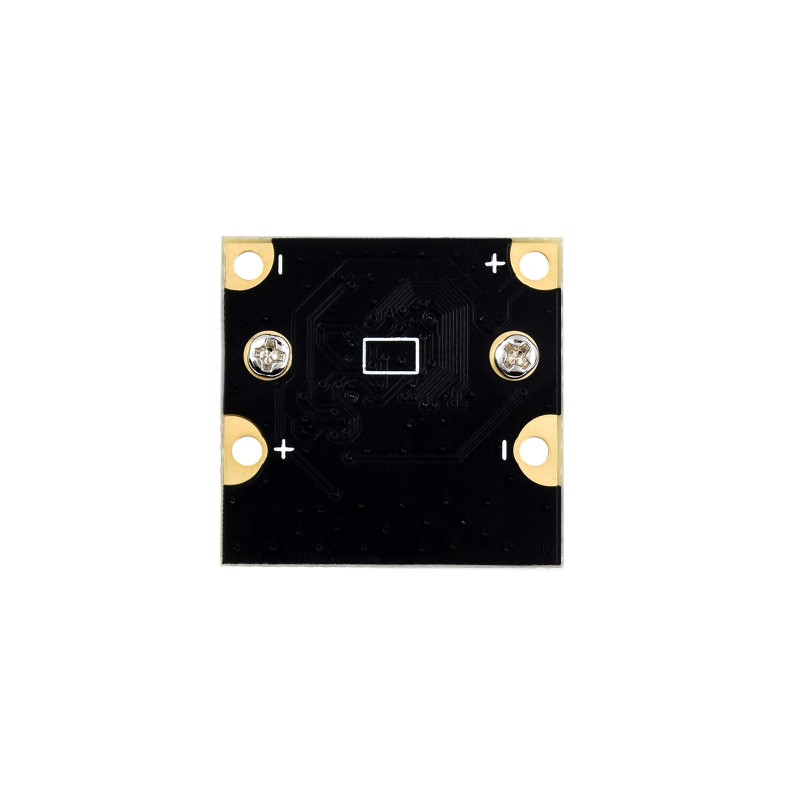

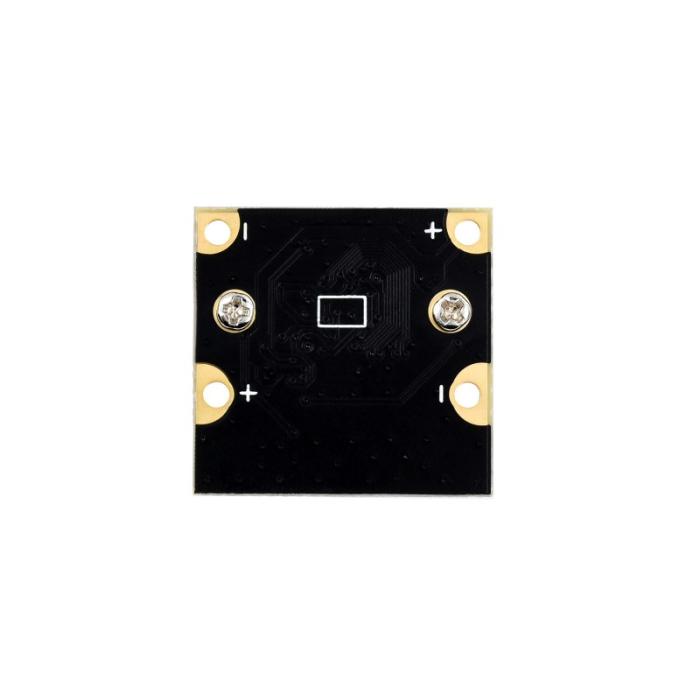

- Mounting holes: 4pcs, used for mounting and providing 3.3V output
- Interface: CSI

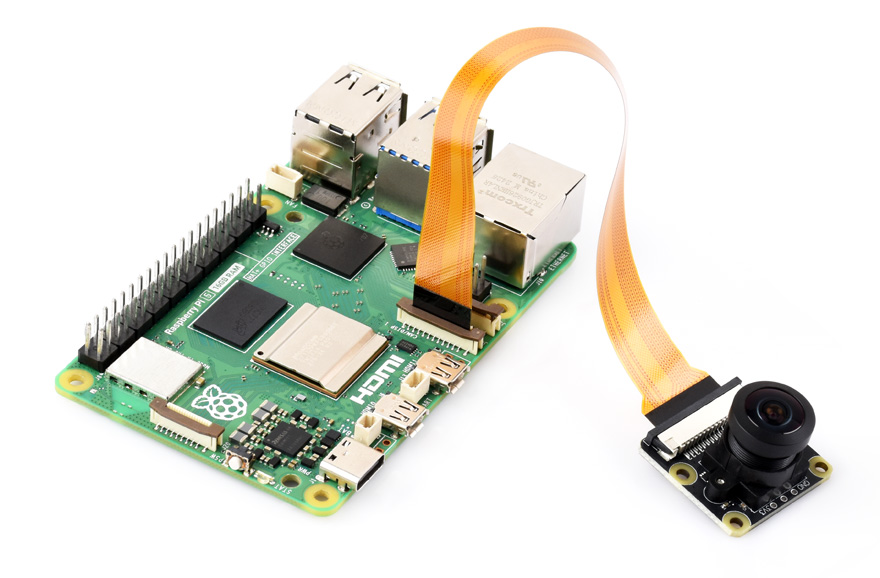

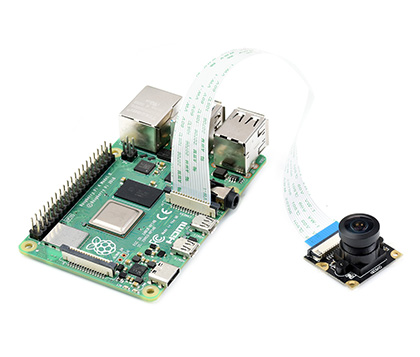

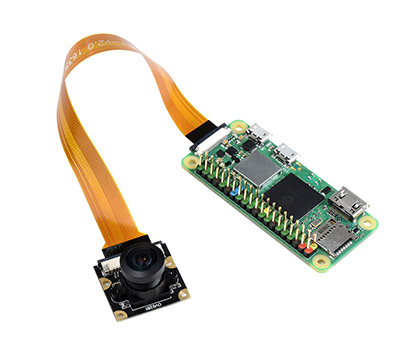

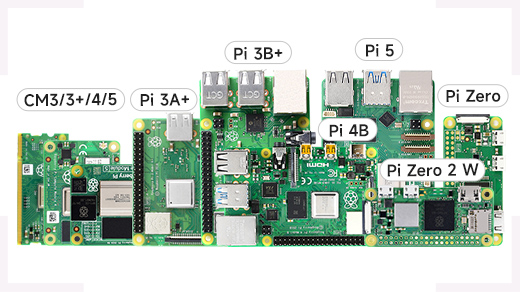

- Compatibility: Raspberry Pi 5, 4B, 3B+, 3A+, Zero, Zero 2W, CM3, CM3+, CM4, CM5
- FFC cable: 2x 150mm included (15-pin and 22-pin)

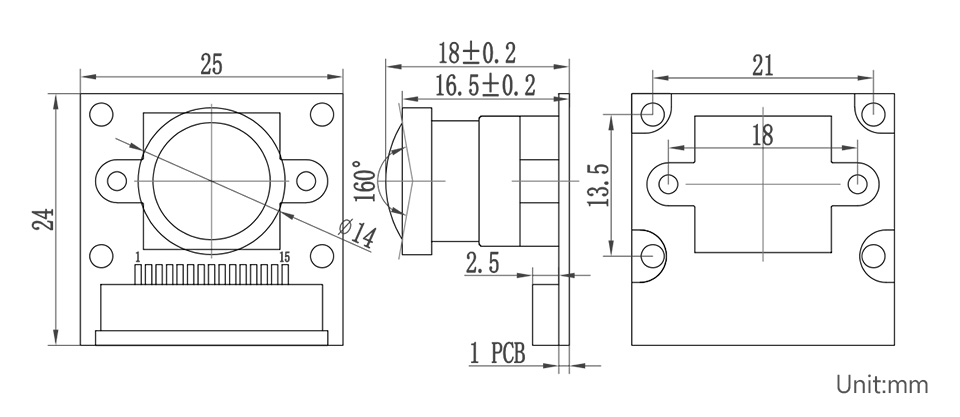

- Dimensions: 25 x 24mm
- Camera type: Global shutter monochrome camera
