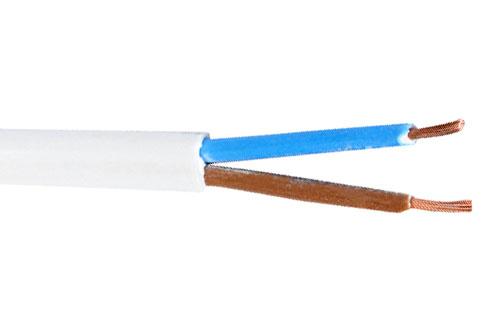

Mains cable H03VV-F 2x0.75mm² white
Art no: 41011559
H03VVH2-F
Do you need assistance?
Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se
Product description
Product description
Mains cable with two conductors. 2x 0.75mm². H05VV-K has stranded conductors and is intended for appliances, lighting luminaires, etc. Rated for use in 230/400 VAC systems but also works well in low voltage applications. The soft conductor consists of fine stranded copper according to class 5, which provides high flexibility and small bending radius. Made in Germany.
Specifications:
- Area: 2x 0.75 mm²
- Outer cable diameter (oval): 5.7 x 7.2 mm
- Rated voltage (Uo/U): 300/500 V
- Conductor material: Cu (pure copper)
- Temperature range (flexible use): -5 to +70 °C
- Temperature range (fixed installation): -40 to +70 °C
- Packaging: Sold by the meter. 1 roll = 100 meters
- Conductor category: Class 5 = fine-stranded (IEC 60228)
- Insulation: PVC
- CPR fire class: Eca
Technical data
| Attribute | Value |
|---|---|
|
Awg
|
18
|
|
Color
|
Vit
|
|
Conductor-area
|
0.75
|
|
Conductors
|
2
|
|
Outer-diameter
|
3.2
|
|
Rohs
|
RoHS-kompatibel
|
|
Sheath-material
|
PVC
|
|
Shielded
|
Nej
|
|
Strands
|
Flertrådig
|
|
Temperature
|
-15/+70 °C
|
SKU:
41011559MPN:
H03VVH2-F
