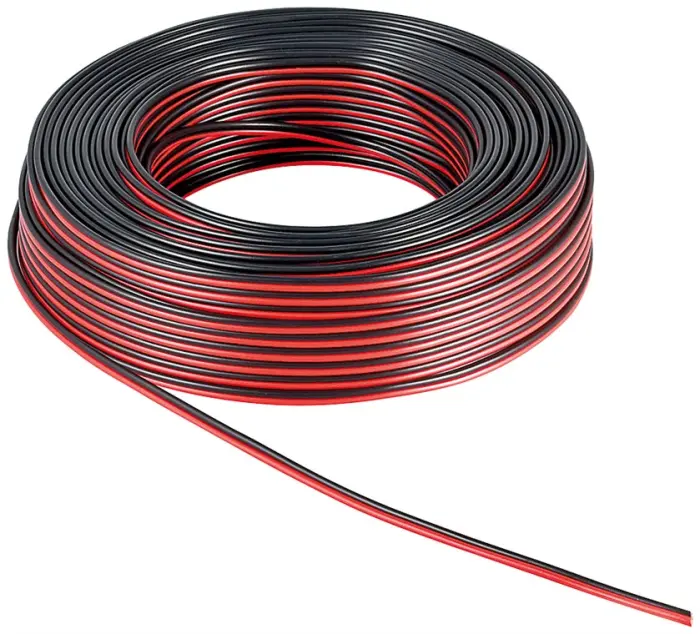

Cable 2x0.75mm² Cu red/black 10m
Art no: 41023634
Do you need assistance?
Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se
Product description
Product description

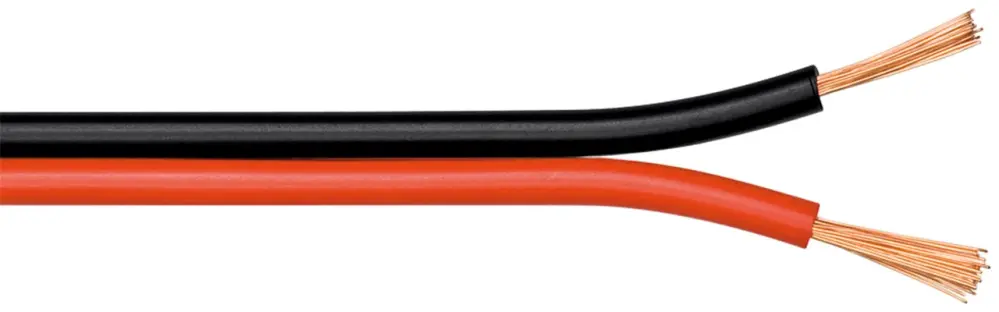

10 meter flat flexible PVC insulated coupling cable for low voltage. Has two parallel conductors, red and black. Intended for power supply (AC or DC), hook-up wire, low voltage lighting, signal transmission or loudspeakers.
Specifications:
- Conductor material: Cu, OFC (pure copper)
- Conductor wire cross-section: 2x0.75 mm² AWG18
- Number of conductors: 2 pcs
- Conductor type: Multicore (stranded)
- Multicore assembly: 2x 58x0.11 mm
- Jacket color: Red/black
- Jacket material: PVC
- Insulation: single insulated
- Outer dimensions: 2.5x5.0 mm
- Rated voltage: 50V
- Temperature range -10 to +70 °C
- Fire class (CPR): Eca
Technical data
| Attribute | Value |
|---|---|
|
Cable-area
|
0.75
|
|
Cable-length
|
10 m
|
|
Cable-network-conductor
|
CU
|
|
Color
|
Röd/Svart
|
SKU:
41023634
