Product description

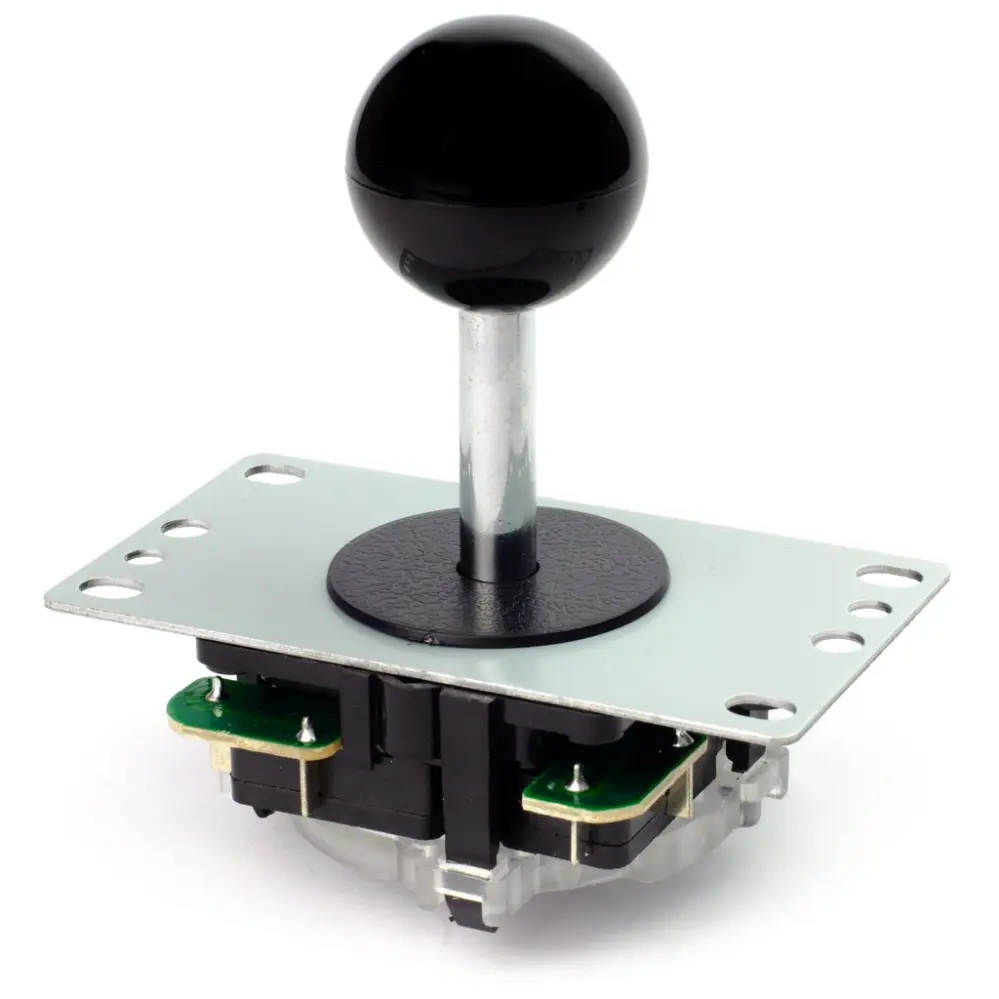

8-way arcade joystick with 5-pin connector. Robust and responsive joystick for building your own arcade games and game controllers. The joystick features an 8-way mechanism with a square restrictor plate and a black ball top.
The 5-pin connector allows easy connection using a single cable. The joystick is used in Pimoroni's Picade and can be combined with Raspberry Pi, Picade X HAT and arcade buttons to build your own arcade machine.
The joystick has a slightly softer and freer movement, similar to Japanese arcade joysticks.
Specifications:
- Type: 8-way joystick

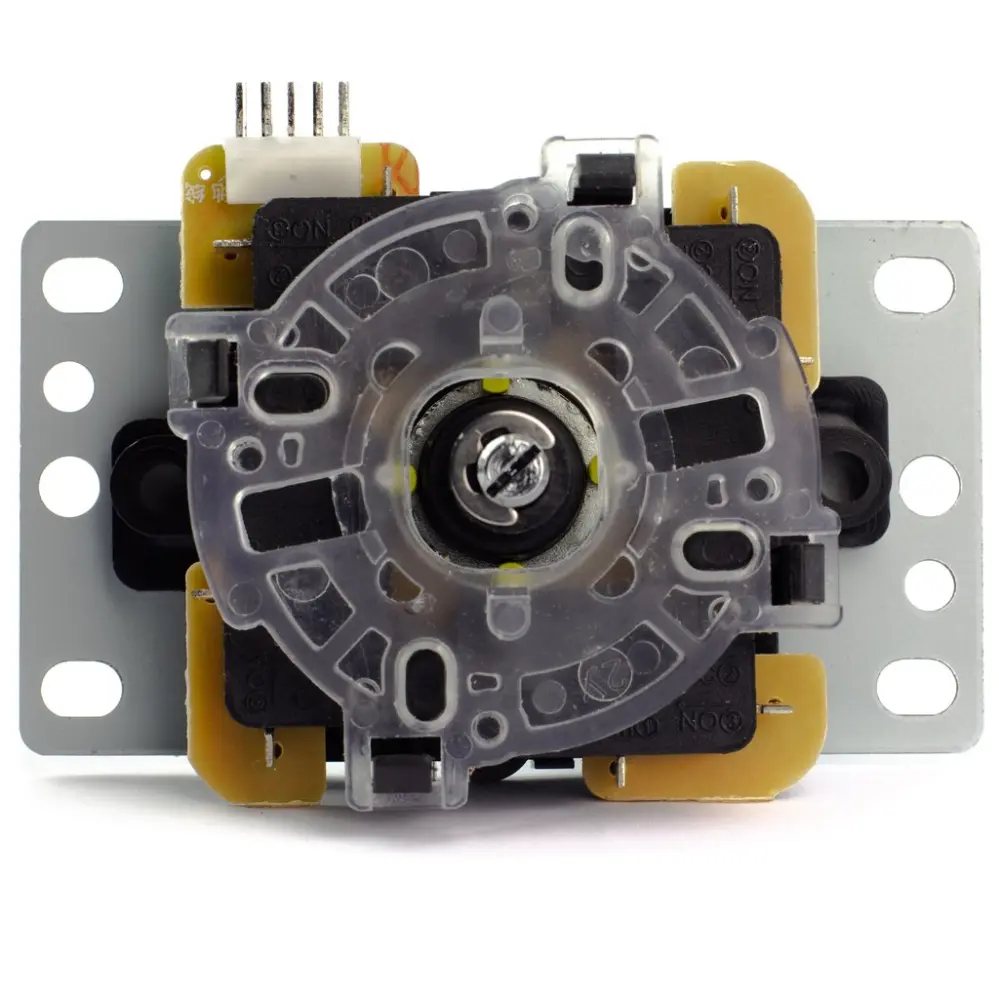

- Restrictor: Square
- Knob: Black ball top, Ø35 mm
- Shaft: Ø9 mm, height 36 mm
- Dust cover: Black
- Connection: 5-pin connector, compatible with JST-XH cable
- Pinout: Up, down, right, left, ground (counting from the pin closest to the center)
- Overall dimensions including knob: 106 × 70 × 95 mm
- Mounting plate: 60 × 95 mm
- Corner mounting holes: Ø5 mm, center-to-center spacing 44 × 82 mm
- Center mounting holes: Ø6 mm, center-to-center spacing 85 mm
A connection cable (41016738) with a 5-pin connector to 5 separate Dupont connectors is available as an accessory in Pimoroni's Picade cable kit.
