Product description
About the Johnny 5 Robot

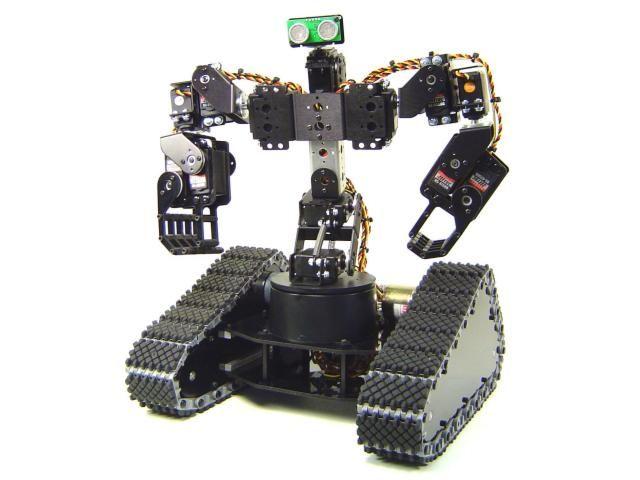

The Lynxmotion Johnny 5 Robot Kit is a very cool and completely functional model of the ever popular movie robot. The kit is available as a full Johnny 5 combo kit, or just the torso and rotating base to be added to a different style base. The robot is designed for indoor or outdoor use and performs well on many different surfaces.
The Mechanics
The robot is made from Servo Erector Set aluminum brackets, custom injection molded components, and ultra-tough laser-cut Lexan structural components. The torso is fuly articulated utilizing 8 x HS-645MG, 3 x HS-475HB, and 3 x HS-422 servos, and our SSC-32 servo controller. By utilizing heavy duty polypropylene and rubber tracks with durrable ABS molded sprockets the robot has excellent traction. It includes two 7.2vdc 50:1 gear head motors and the Sabertooth 2 x 5 motor controller.
Controlling the Robot
The combo kit includes the powerful Lynxmotion Sequencer Program for PC. You can control the robot from a PC with the included DB9 cable, or use a SparkFun bluetooth modem for wireless PC control. Check out our BlueSMiRF and SSC-32 Configuration Tutorial for specific information.
Powering Options
The robot is compatible with the following batteries and chargers.
Chargers & Accessories
> Universal Smart Charger (USC-01)
> NiMH Quick Connect (mates to battery) (BATC-01)
> Battery Connector with Switch (WH-01)
Batteries
> 7.2 Volt Ni-MH 2800mAh Battery Pack (BAT-04)
This battery is for the Sabertooth and motors.
> 6.0 Volt Ni-MH 2800mAh Battery Pack (BAT-05)
This battery is for the servos.
Includes
Johnny 5 Torso, which includes: Johnny 5 Torso Kit (J5T-KT) Base Rotate Kit (no servos) (BR-NS) Multi-Purpose Sensor Housing (MPSH-01) 2 x Robot Hand - A (NS) (RH-01)
Tri-Track Chassis Kit (NE) (TTRK-KT) Sabertooth 2X5 R/C Motor Controller (DE-10) SSC-32 Servo Controller (SSC-32) SSC-32 Sequencer (SEQ-01)
DB9 Serial Data Cable (DB9-02)
Information
The Johnny 5 torso and base kit includes the following servos: 8 x HS-645MG 3 x HS-475HB 3 x HS-422
Johnny 5 Robot Specs "Length = 10.00" (254 mm)
"Width = 11.00" (279 mm)
"Height (Overall) = 14.25" (362 mm)
"Height (Base and torso) = 11.75" (298mm)
"Ground Clearance = 1.00" (25 mm)
"Deck Height = 3.00" (76 mm)
"Deck Dimentions = 7.25" W x 8.125" D (184 x 206 mm)
"Weight = 6.25 lbs (no batteries) (2,9 kg)
"Speed = 24.0 in/sec (0,6 m/s)
