IQaudio DigiAMP+

Art no: 41018065 - Raspberry Pi
Shop this product, IQaudio DigiAMP+
price 449 SEK
Including 25% VAT
In stock, 13 pcs
Unit: Piece

10 000 products

Quick dispatch

EU/International shipping available

Do you need assistance?

Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se

Product description

OpenClose

Product description

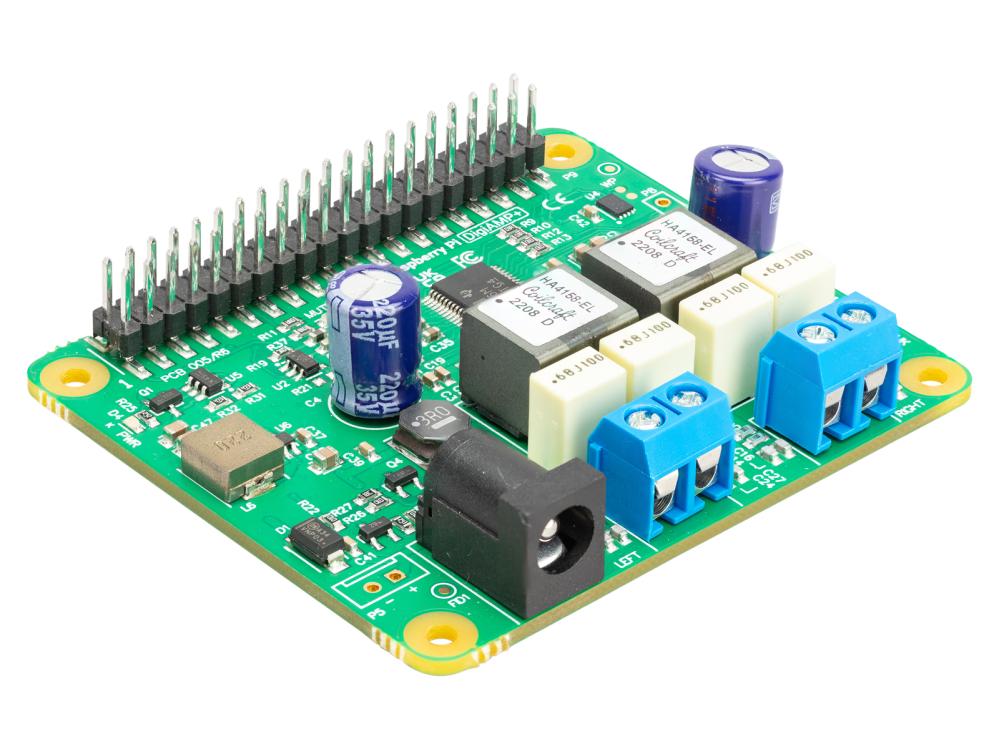

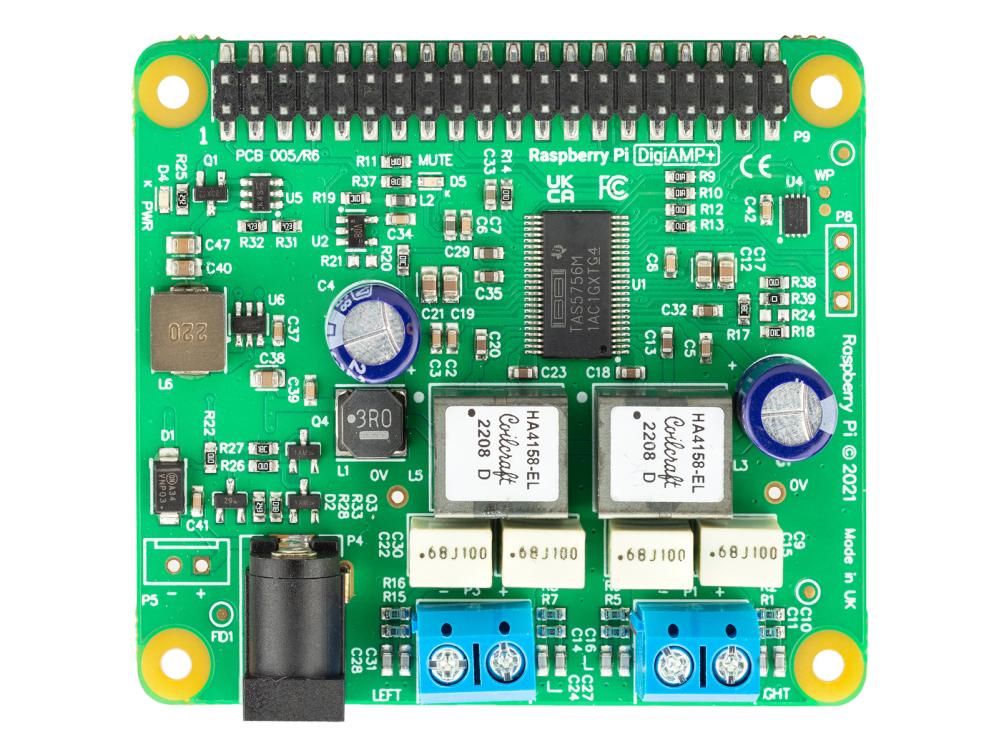

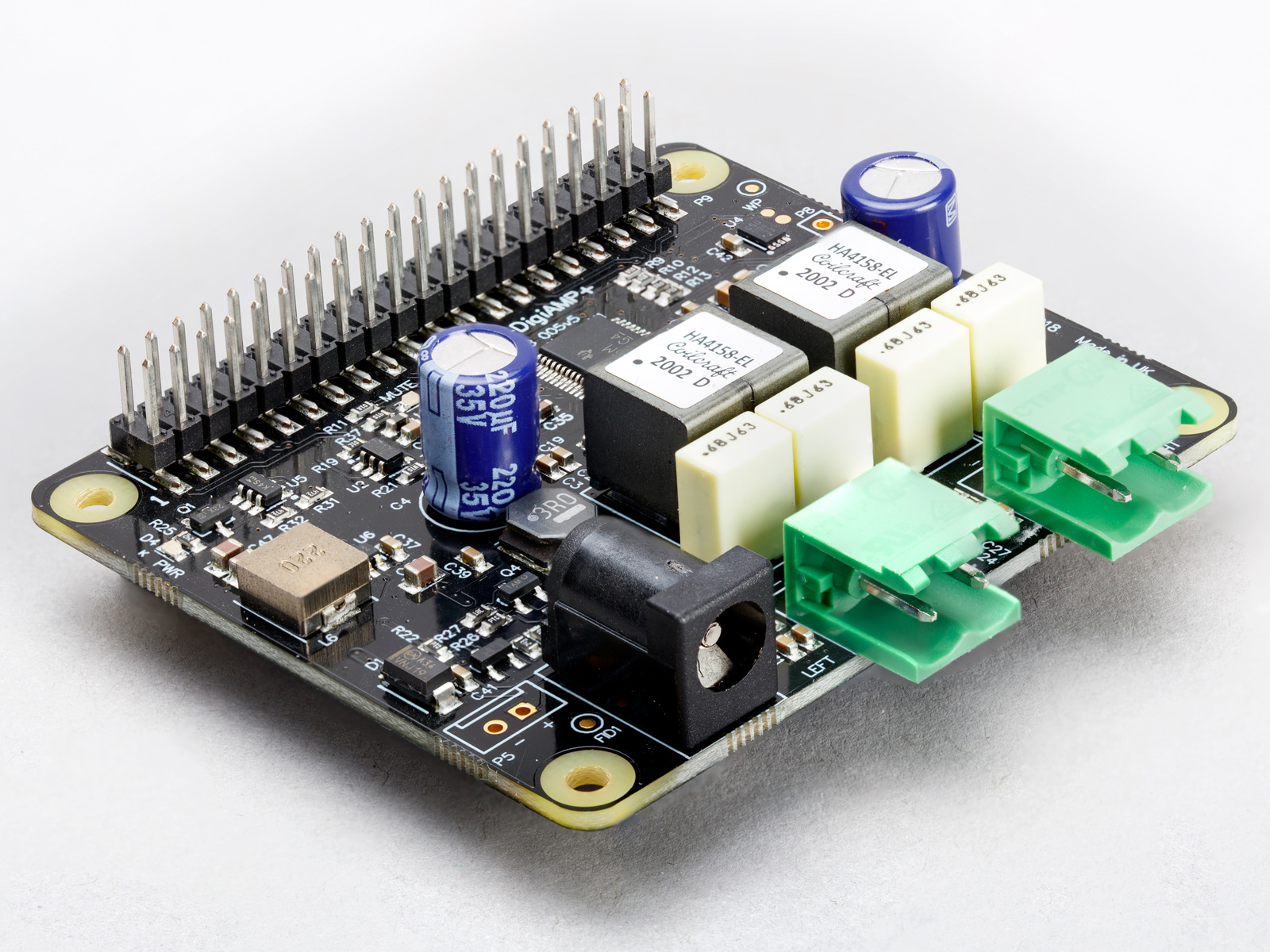

IQaudio DigiAMP+ uses the Texas Instruments TAS5756M PowerDAC to deliver direct connection to PASSIVE stereo speakers at up to 2x35wpc with variable output. Ideal for a Raspberry Pi-based hi-fi system.

IQaudio DigiAMP+ connects to the 40-pin GPIO header of Raspberry Pi 1 Model B+, Raspberry Pi 2, Raspberry Pi 3, or Raspberry Pi 4 with no need for soldering. DigiAMP+ must be powered from an external supply, and requires a 12-24V DC power source to its 5.5 mm x 2.5 mm barrel connector. The XP Power VEC65US19 power supply is recommended for use with DigiAMP+.

DigiAMP+ has been designed to provide power to the Raspberry Pi-plus-DigiAMP+ combination in parallel, delivering 5.1V @ 2.5A to your Raspberry Pi.

DO NOT APPLY POWER TO RASPBERRY Pi'S OWN POWER INPUT WHEN USING DigiAMP+.

The amplifier is by default muted at power on (mute LED lit). The mute state/LED is under software control (Raspberry Pi GPIO22).

P5: Alternative power input for hard-wired installations. POLARITY MUST BE OBSERVED!

P8: TAS5756m Internal GPIO1/2/3

Product information

  • SKU:

    41018065
