Product description

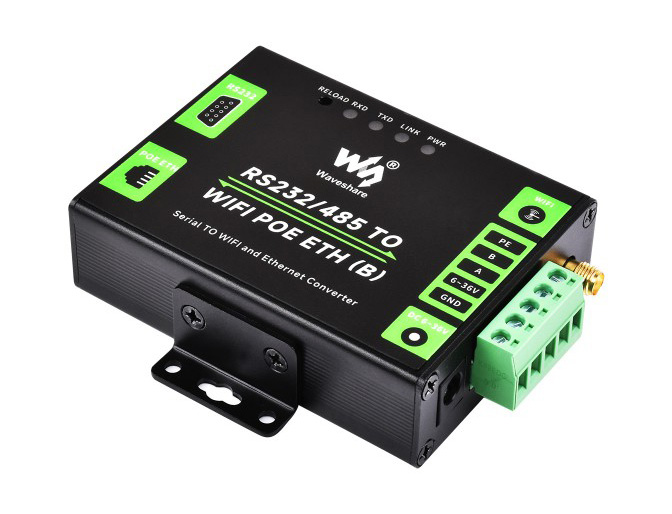

Serial server with RS232/485 to WiFi/Ethernet PoE. An industrial serial server and IoT gateway designed for applications where serial interfaces need to be connected to wireless networks or Ethernet. Combines functionality such as serial server, Modbus gateway, MQTT gateway and HTTPD client in the same module. This enables flexible data acquisition, protocol conversion and network connectivity between RS232/RS485 equipment and IP-based systems. The module features both wired Ethernet connectivity and wireless WiFi connectivity. Suitable for industrial automation monitoring, data logging, IoT gateway solutions and security applications.

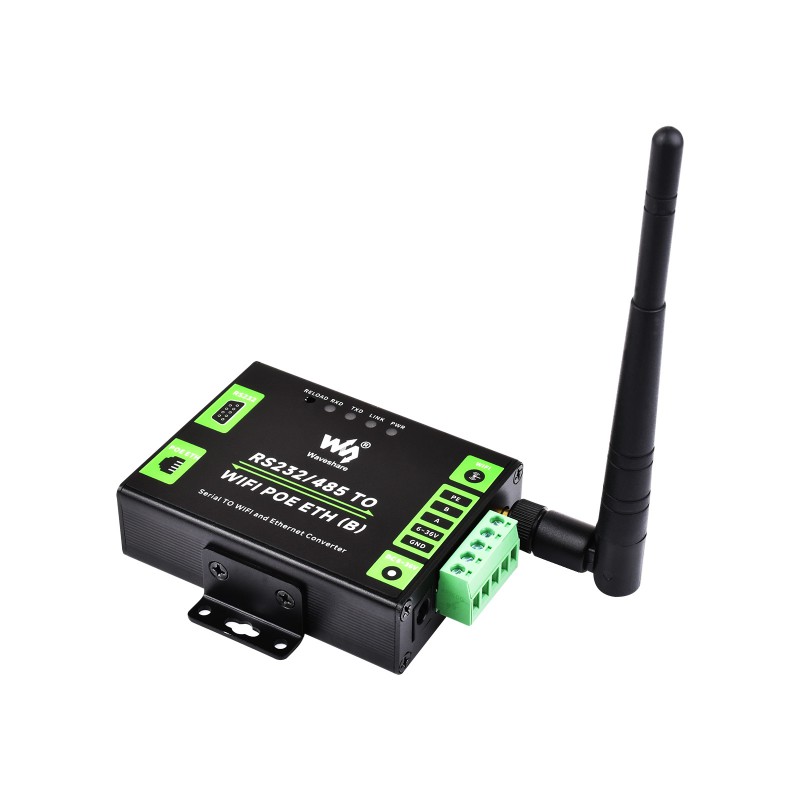

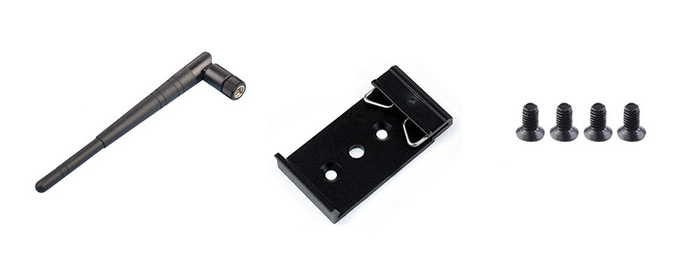

Supplied with WiFi antenna, DIN rail mount, mounting brackets and screws
Specifications:
- Serial communication: RS232 and RS485 (DB9 male)
- Ethernet network interface: 10/100 Mbps (RJ45)
- WiFi standard: 2.4 GHz (802.11 b/g/n)
- Power supply: PoE or 6 to 36 VDC (via screw terminal)

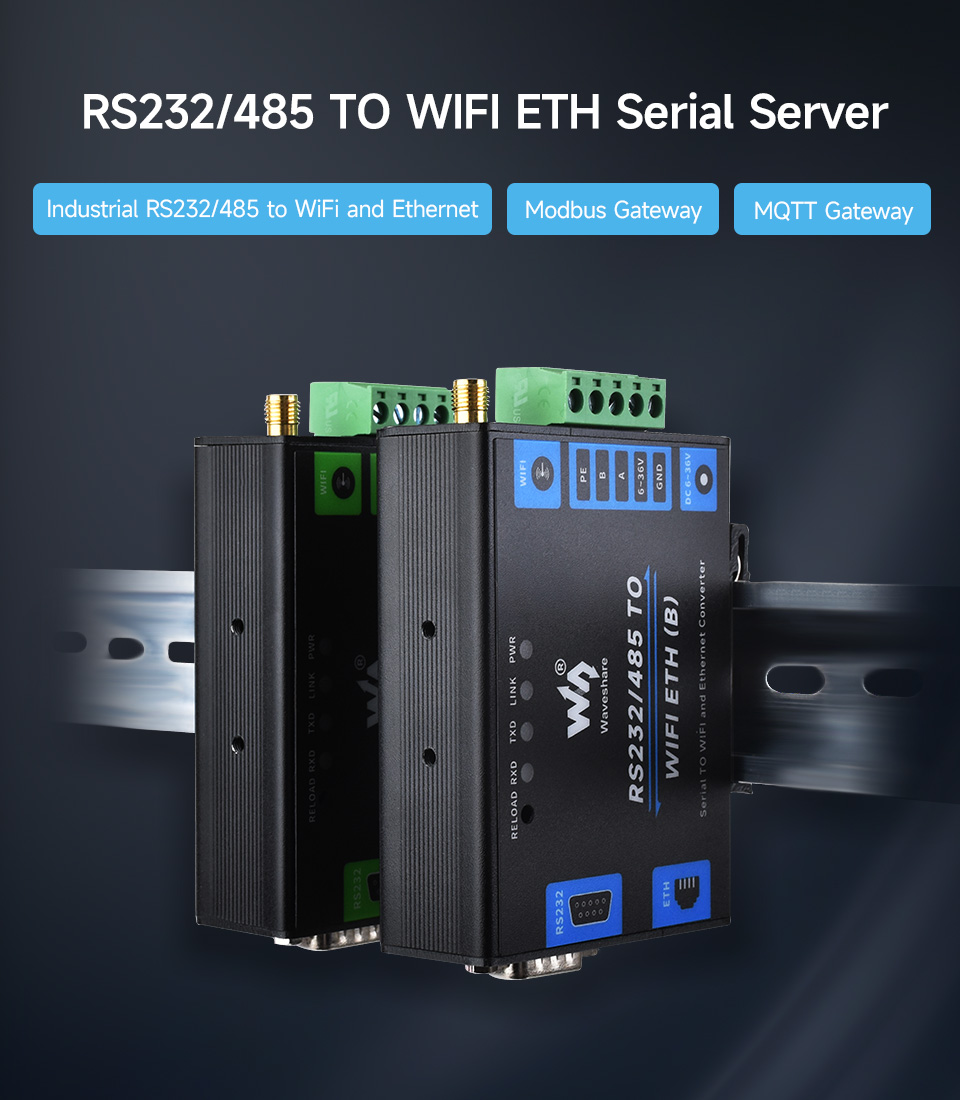

- Enclosure: Metal housing for DIN rail or wall mounting
- Protocol support: Modbus TCP/RTU, MQTT
- Communication modes: TCP server, TCP client, UDP server, UDP client, HTTPD client
- Serial data rate: 300 - 460,800 bps
- Operating temperature: -25 to 70 ℃

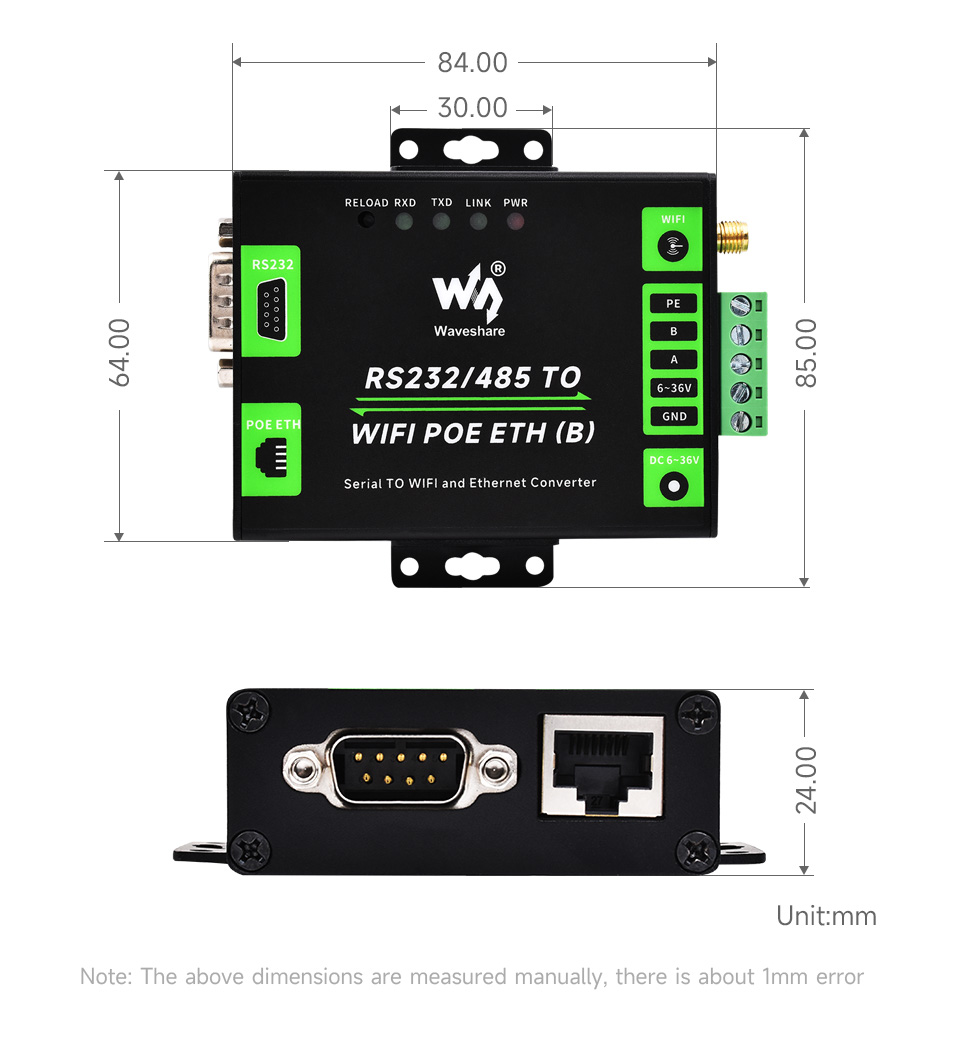

- Dimensions: 84 x 64 x 24 mm
