Product description

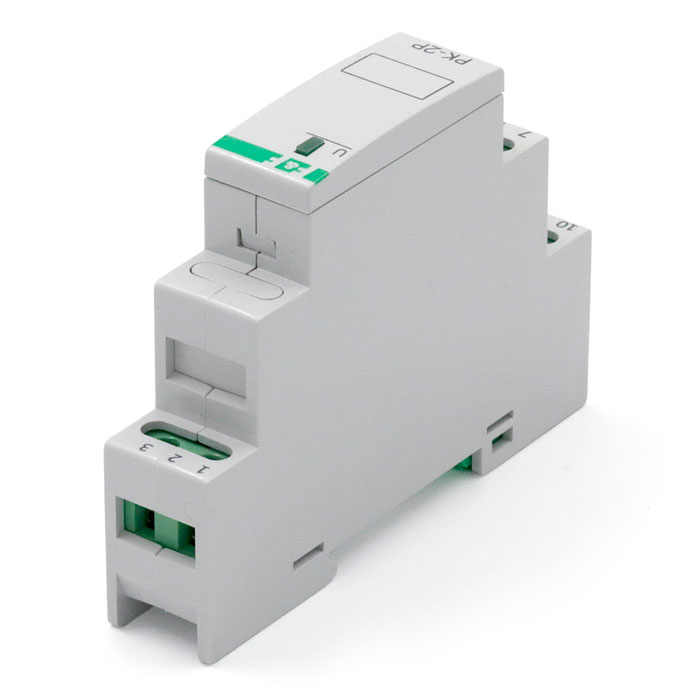

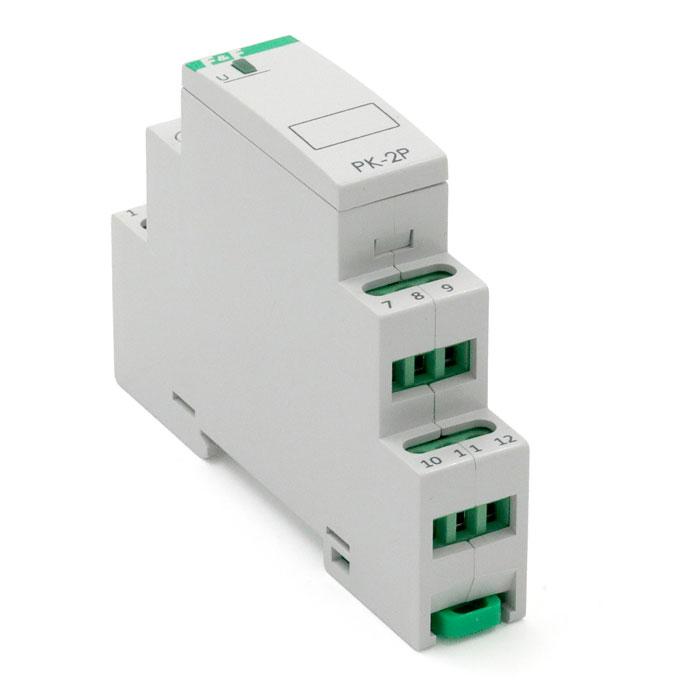

Relay PK-2P-12V with 12 VDC/VAC coil. Single-pole relay for switching loads such as lighting, irrigation systems, ventilation, heating cables, etc. Features screw terminals. Designed for DIN rail mounting in distribution boards or electrical cabinets.
Specifications:
- Type: Installation relay for distribution board
- Series: PK
- Type of contact: 2x NC/NO
- Control voltage: 12 VDC/VAC
- Coil current: 25 mA
- Category of use: AC-1 (suitable for resistive or slightly inductive loads)
- Rated operational voltage: 250 VAC
- Rated current: 2x 8 A (AC-1)
- Rated power: 2x 1.8 kW
- LED indicator: Yes
- Connection: Screw terminals

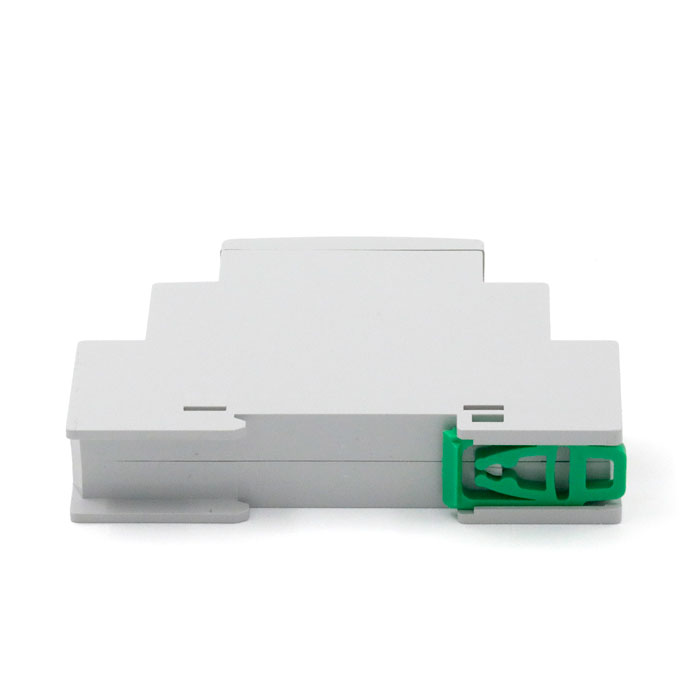

- Mounting: DIN rail
- Height: 90 mm
- Width: 17.6 mm
- Depth: 60 mm
- Module width: 1U (1 module)
- IP rating: IP20
- Ambient air temperature: -25 to +50 °C
- Certification: CE, IEC61095, ISO9001
- Country of origin: Poland
