Product description

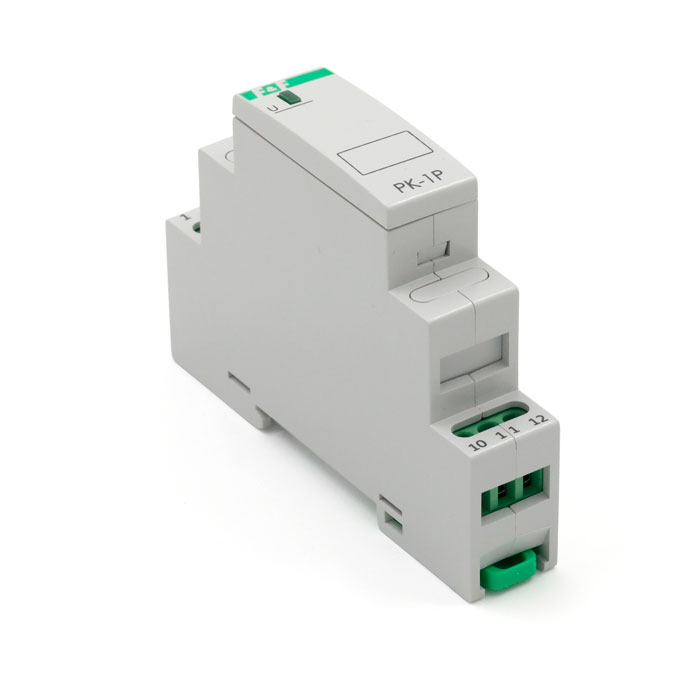

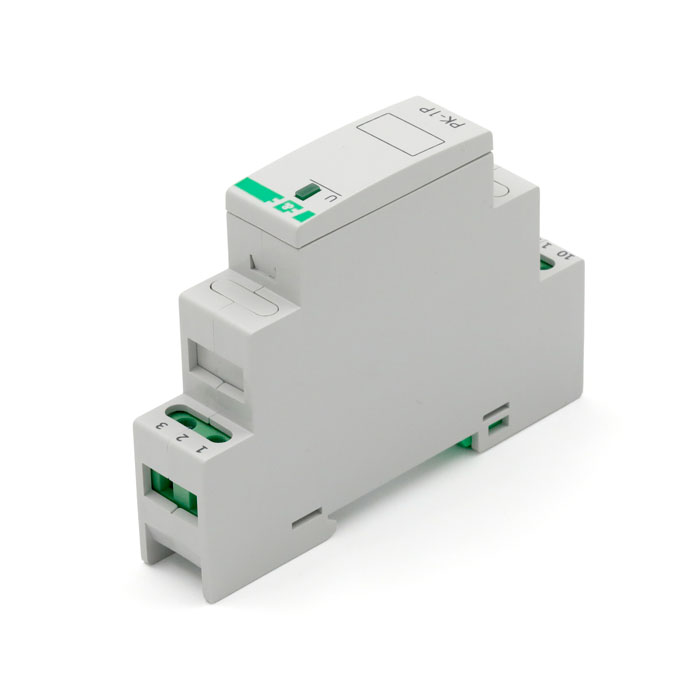

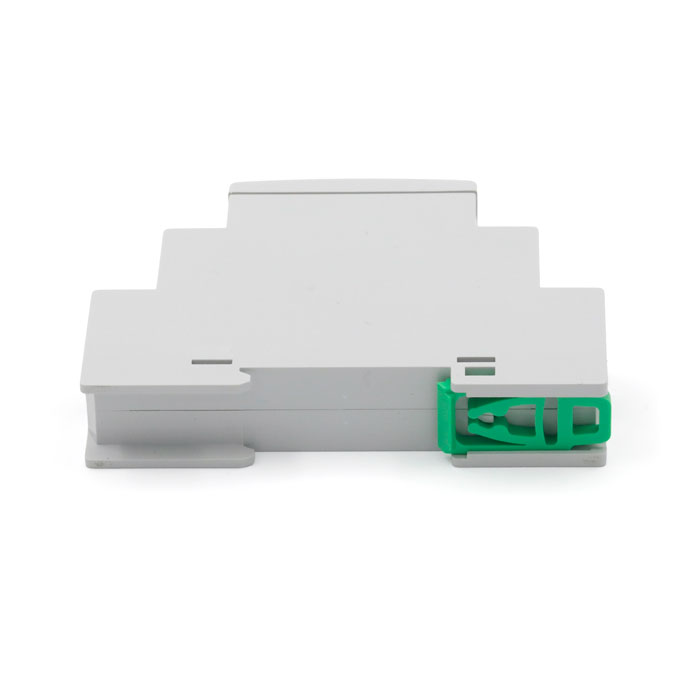

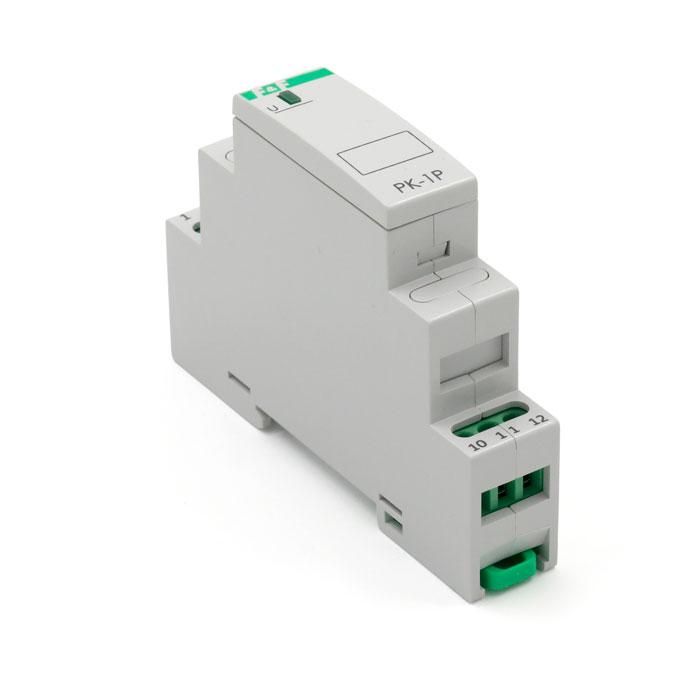

Relay PK-1P-12V with 12 VAC/VDC coil. Single-pole relay for switching loads such as lighting, irrigation systems, ventilation, heating cables, etc. Features screw terminals. Designed for DIN rail mounting in distribution boards or electrical cabinets.
Specifications:
- Type: Installation relay for distribution board
- Series: PK
- Type of contact: 1x NC/NO
- Control voltage: 12 VAC/VDC
- Coil current: 16 mA
- Category of use: AC-1 (suitable for resistive or slightly inductive loads)
- Rated operational voltage: 250 VAC
- Rated current: 16 A (AC-1)
- Rated power: 3.6 kW
- LED indicator: Yes
- Connection: Screw terminals
- Mounting: DIN rail
- Height: 90 mm
- Width: 17.6 mm
- Depth: 60 mm
- Module width: 1U (1 module)
- IP rating: IP20
- Ambient air temperature: -25 to +50 °C
- Certification: CE, ISO9001
- Country of origin: Poland
