Inbyggnadslåda RF 50mm N-hane N-hona

Art no: 41018633 - Tekbox
Shop this product, Inbyggnadslåda RF 50mm N-hane N-hona
price 550 SEK
Including 25% VAT
In stock, 2 pcs
Unit: Piece

10 000 products

Quick dispatch

Ship worldwide

Do you need assistance?

Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se

Product description

OpenClose

Product description

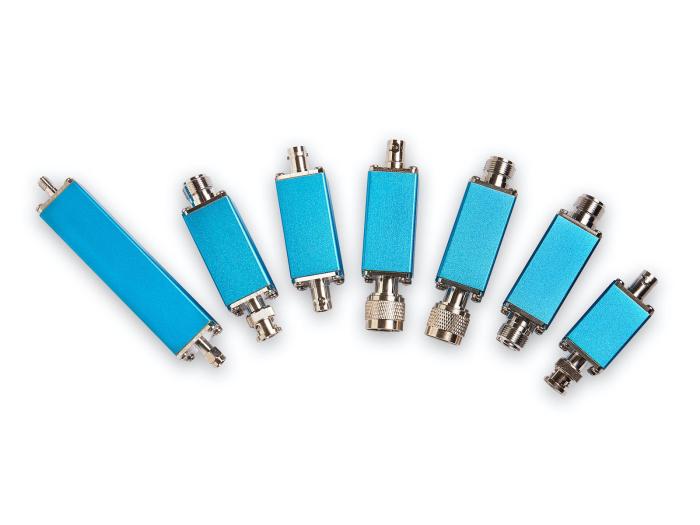

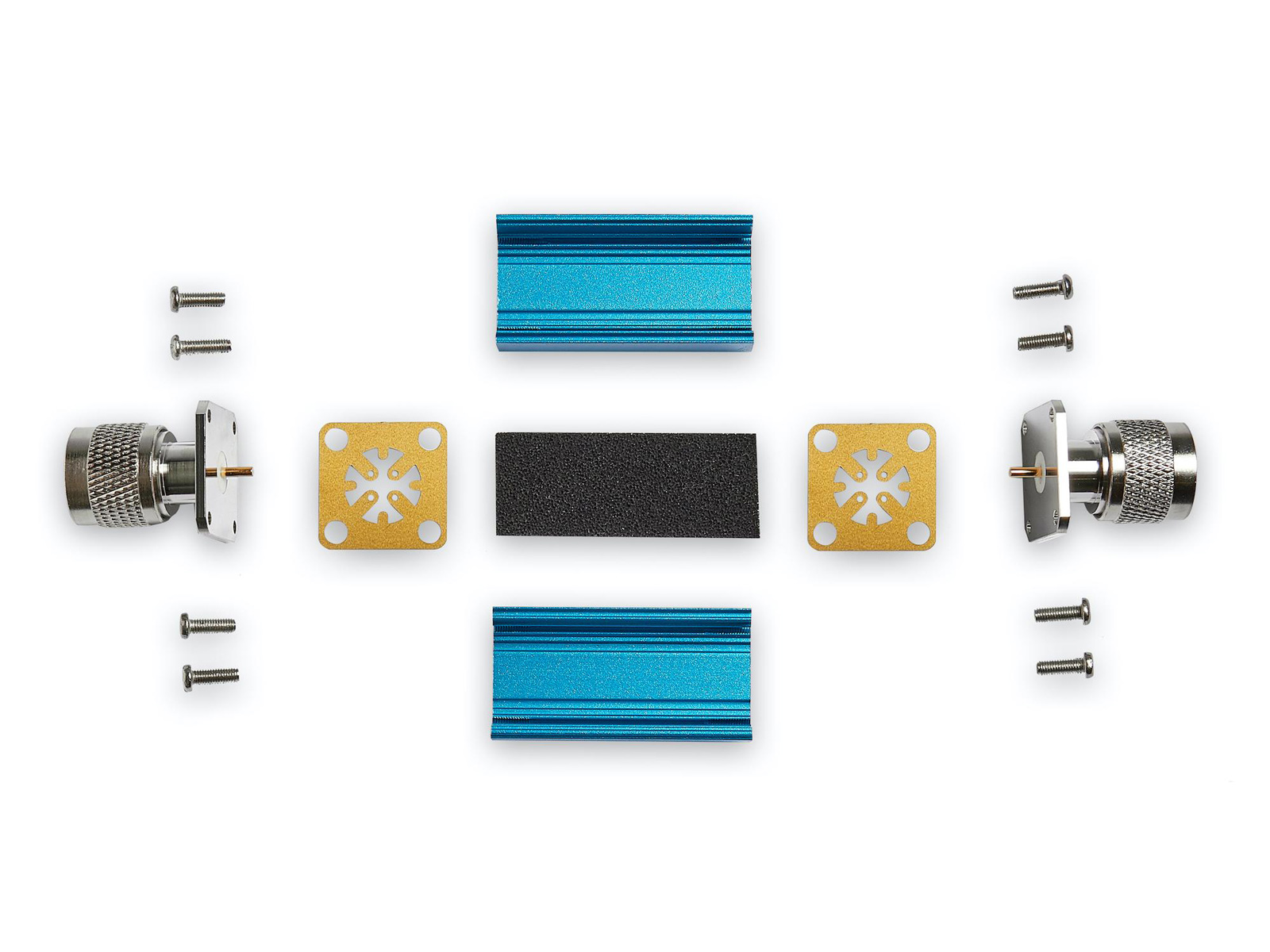

The TBRFH1 series of RF housings are ideal for RF building blocks operating up to 6 GHz. The housings consists of a 1 inch aluminium profile with mechanically matching RF connectors on each end. The user can select a wide range of RF connector combinations, various housing lengths and optional feed through capacitors. The housings come with RF absorbing pads to suppress coupling and cavity resonance. Solderable sheet metal ground pads, sandwiched between the connectors and the aluminium profile simplify establishing the ground connection.

SPECIFICATIONS
Outer cross section: 25,6 mm x 25,8 mm
Inner cross section: 20,4 mm x 20,6 mm
Housing material: anodized aluminium, exposed aluminium at front and rear side
Standard lengths: 35 mm, 50 mm, 100 mm (length of the connector not included)
Customisation of the length upon request
RF connector variants: N-Male, N-Female, BNC-Male, BNC-Female, SMA-Male, SMA-Female
any combination of the above connectors; other connectors or flat end plates upon request
Feed-through capacitor: 10nF / 50V; default centered placement, optional
RF absorbing foam: carbon loaded, 1 GHz to 18 GHz, adhesive backing, 3.2 mm thickness: - 8dB loss @ 10 GHz, 6.4 mm thickness: - 21,5 dB loss @ 10 GHz

Product information

  • SKU:

    41018633
  • MPN:

    TBRFH1-50-NM-NF-3-0
