Product description

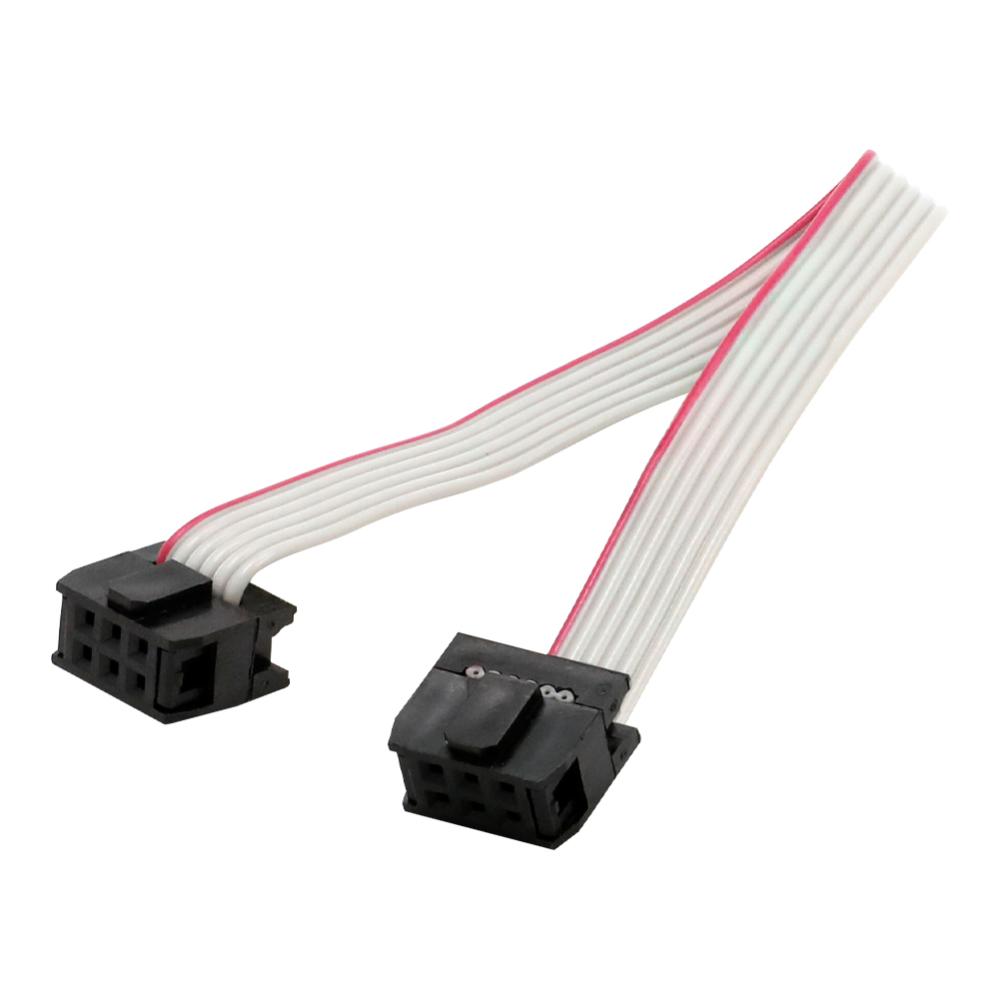

IDC Ribbon Cable Assembly. Flat ribbon cable with pre-mounted IDC connectors.
Specifications:
- Number of poles: 6
- Cable length: 0.15 meter
- Connectors: 2x IDC 6-pin, 2 rows, female
- Current Rating: 1A
- Voltage Rating: 100 V
- Connector orientation (straight): Pin 1-1, 2-2, etc.
- IDC contact pitch: 2.54 mm
- Ribbon cable pitch: 1.27 mm
- Cable structure: 6x28AGW
- Operating temperature: -25°C to 105°C
