Product description

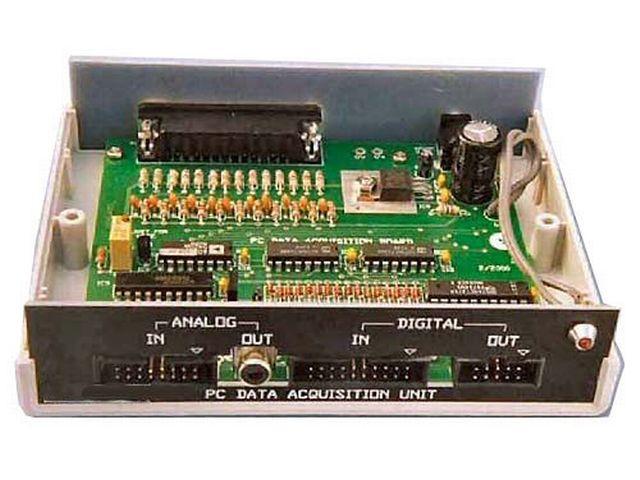

Use the parallel port of your PC as a real world interface. It enables your PC to both monitor & control external events and devices. The world is a mixed analog & digital world. With the appropriate sensors the PC can monitor physical variables such as pressure, temperature, light intensity, weight, switch state, movement, relays, etc, process the information and then use the result to control physical devices such as motors, sirens, other relays, servo motors (up to 11) & two stepper motors.
Software works with Windows 9x/ME/2000/XP
Digital outputs (8)
Output sink current 500mA max (open collector)
Output voltage 33V max
Output protection 33V clamped to ground
Digital inputs (16)
Input voltage 20V max (TTL inputs)
Input protection 1K series resistor with 5V zener to
ground
Analog inputs (11)
Voltage range 0 - 5V
Resolution 10 bits (5mV/step)
Conversion time 21uS
Total access time 21uS + 10 I/O clock periods
Input resistance typically >100M
Input protection +/- 20mA max input current.
+/- 30mA max total input current.
Analog outputs (1)
Voltage range 0 - 2.5V or 0 - 10V
Resolution 8 bits (20mV/step)
Output current Depends on power supply voltage.
(See description)
