Product description

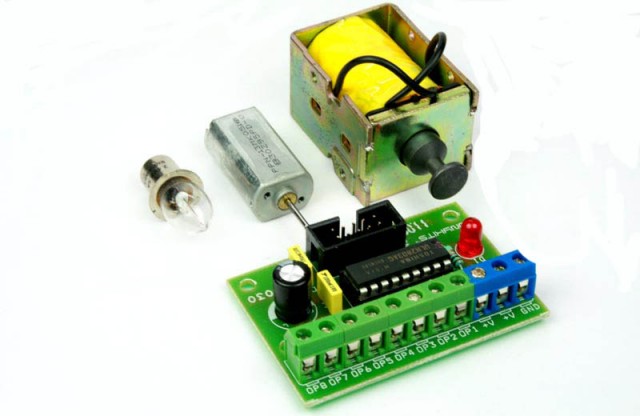

Kit with high current / high voltage driver IC ULN2803. ULN2803 is an 8x darlington array that can be used for driving motors, relays, solenoids, incandescent lamps and other things that run on high voltage or high current. Each output can drive up to 350mA and is controlled with regular 5V TTL logic signals.
Supply voltage: up to 30VDC
Max current (per output): 350mA
Control signals: TTL or CMOS (2 to 6V)
Connections: 10-pin IDC connector for logic signals, Screw terminals for outputs.
Dimensions: 59 x 40mm
Supply voltage: up to 30VDC
Max current (per output): 350mA
Control signals: TTL or CMOS (2 to 6V)
Connections: 10-pin IDC connector for logic signals, Screw terminals for outputs.
Dimensions: 59 x 40mm
