Product description

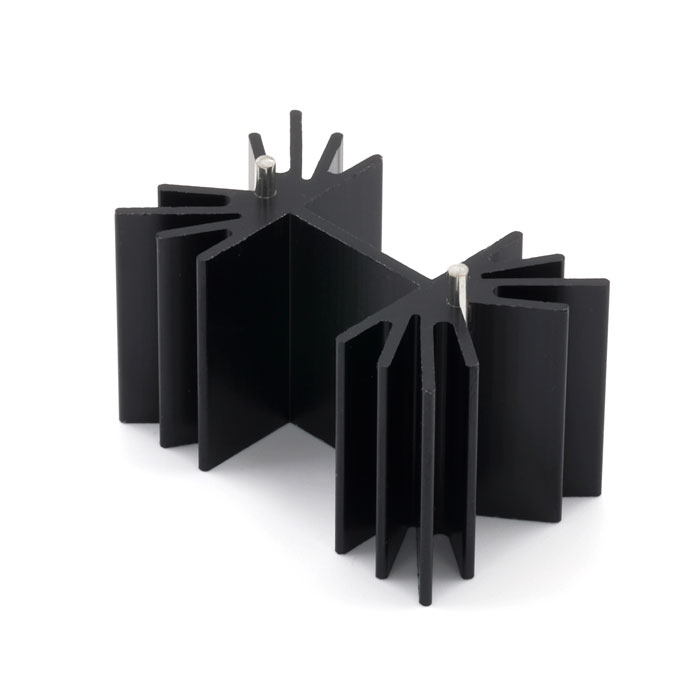

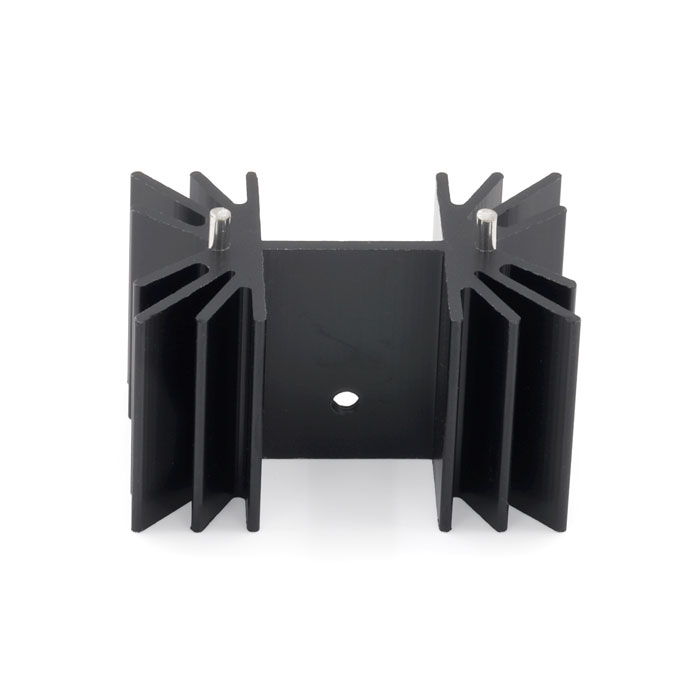

Heat sink in black anodized extruded aluminum for TO-220 packages. Mounted with screws and features a 1.8 mm thick base. Equipped with 2 PCB pins for secure mounting (can be removed if not required).

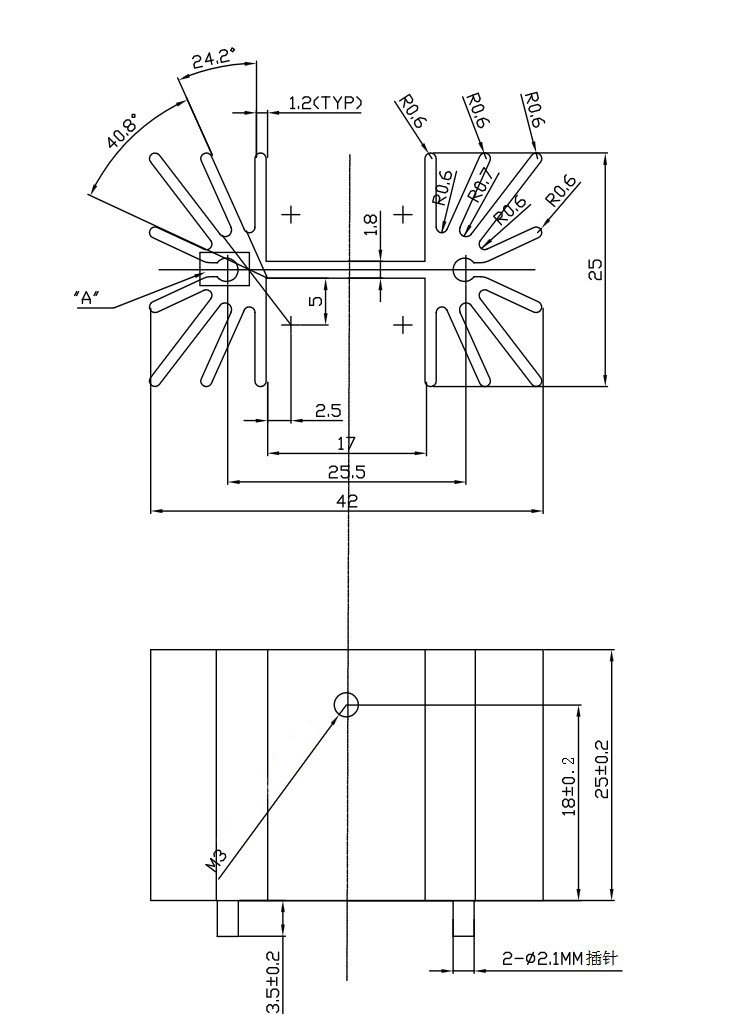

Specifications:
- Model: XSD - 452525
- Material: Aluminum
- Surface finish: Black anodized
- For package: TO-220
- Mounting: Screw (not pre-drilled)
- Dimensions: 42 × 25 × 25 mm
- Base thickness: 1.8 mm
- Solder pins: Ø2.1 mm / 25.4 mm pitch
- Thermal resistance: 7.5 K/W
