Product description

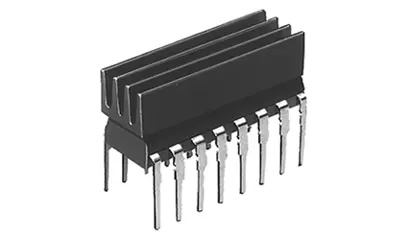

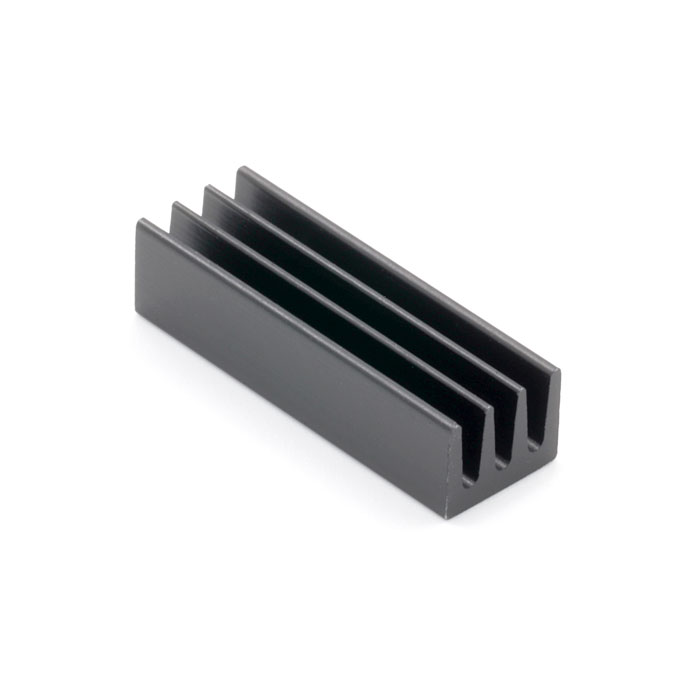

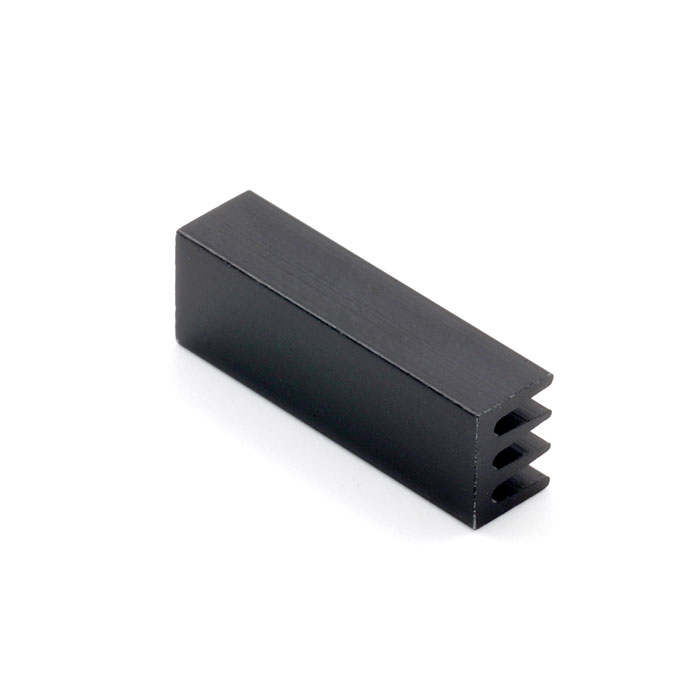

ICK 14 16 L is a precision-manufactured heatsink specifically designed for DIL/DIP IC packages with 14 or 16 pins. The heatsink measures 6.3 × 4.8 mm and has a length of 19 mm. It provides efficient heat dissipation with a thermal resistance of 62 K/W. The black anodised surface provides good durability and efficient heat dissipation.
Specifications:
- For IC packages: DIL 14/16 – DIP 14/16
- Width: 6.3 mm
- Height: 4.8 mm
- Plate thickness: 1 mm
- Length: 19 mm
- Thermal resistance: 62 K/W
- Surface: Black anodised
