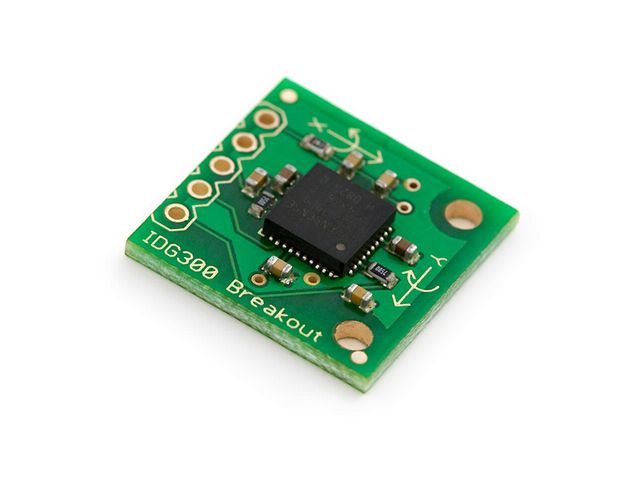

Gyro - dual, IDG-300 500 deg/s pcb

This is the first dual-axis MEMs gyro available on the open market. The IDG-300 is a 3.3V leadless IC with a smaller profile than other single axis gyros. Originally designed for image stabilization, the IDG300 dual axis gyro is now available for the consulting and research markets.

Applications:
* Inertial Measurement Units (IMUs)
* Handheld GPS Navigation Devices
* Radio controlled helicopters
* Toys and game devices
* Robotic and power tools
* Antenna positioning
* Remote control

Features:
* Integrated X- and Y-axis gyro on a single chip
* Factory set full scale range of �500�/sec
* Low offset voltage
* Integrated low-pass filters
* Integrated reset switches for high-pass filters
* Superior vibration rejection over a wide frequency range
* High cross-axis isolation by design
* 3V single supply operation
* 5000 g shock tolerance
* RoHS Compliant (Completely Lead Free)

Benefits:
* Single chip dual-axis gyro sensor
* Small footprint
* Low cost dual-axis gyro solution
* Integrated electronics for complete application functionality
* Inherent performance improvements
* High temperature & humidity resistance
* Superior shock & vibration tolerances
* Low cross-axis sensitivity
* Compatible with standard SMT processes

Dimensions: 18x18 mm (0.7x0.7")
