Product description

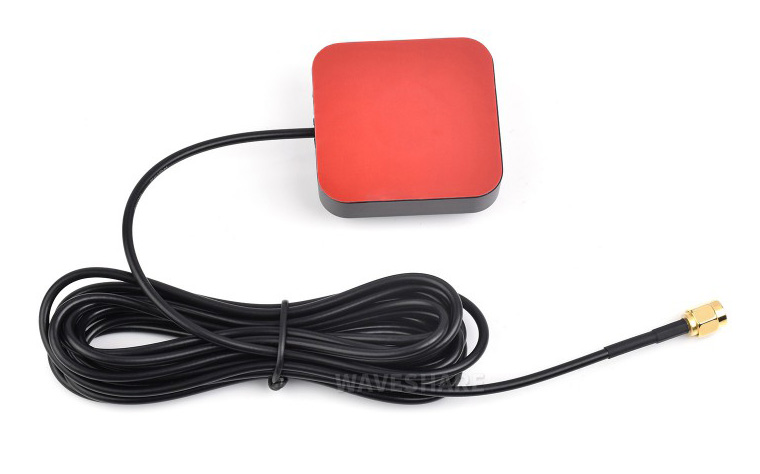

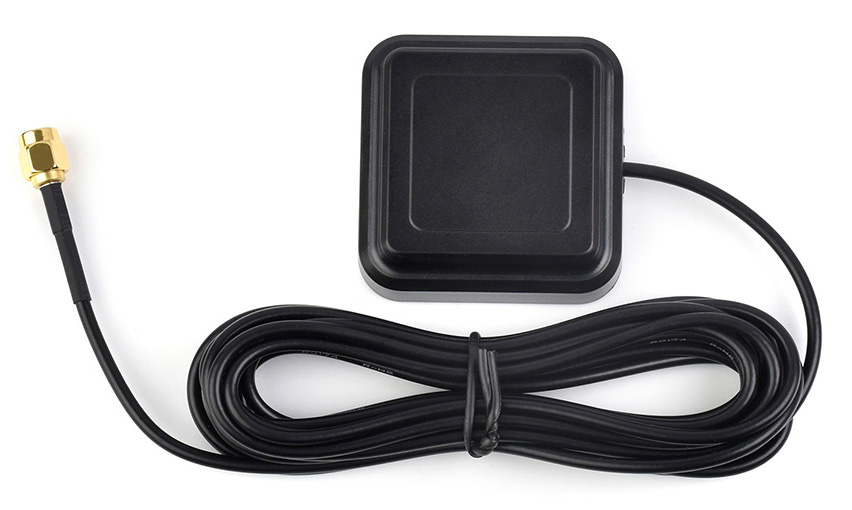

External active GPS/GNSS antenna for reception of satellite signals in the L1 and L5 bands. Designed for the latest generation of multi-frequency, multi-constellation GNSS technology, enabling highly accurate, reliable, and robust positioning even in challenging environments. Suitable for applications such as vehicle use. The antenna supports GPS, BeiDou, Galileo, QZSS, and IRNSS. Uses circular polarization (RHCP) for efficient reception of satellite signals and reduced sensitivity to multipath effects. Equipped with a magnetic base for easy mounting on metallic surfaces. 3-meter cable with SMA connector.
Specifications:
- GNSS: GPS, BeiDou, Galileo, QZSS, IRNSS
- Frequency bands: GPS L1/L1C/L5C, BeiDou B1I/B1C/B2a, Galileo E1/E5a, QZSS L5, IRNSS S-L5
- Polarization: Right-Hand Circular Polarization (RHCP)
- Antenna gain: 2 dBi
- LNA gain: 28 ±2 dB
- Noise figure: ≤ 2 dB
- VSWR: ≤ 2.0
- Output impedance: 50 Ω
- Axial ratio: ≤ 3 dB
- Supply voltage: 3.0 to 18.0 VDC
- Rated current (max): 20 mA

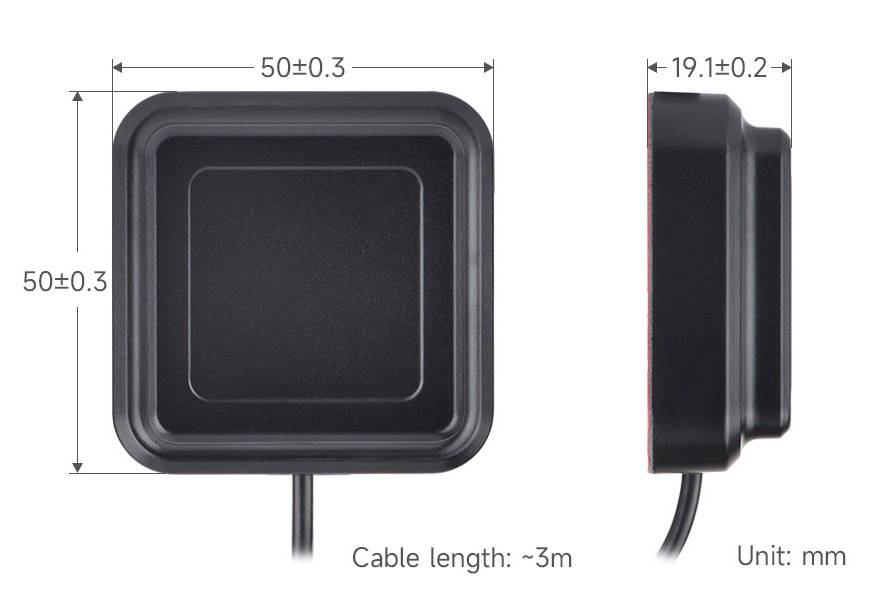

- Antenna dimensions: 50.0 x 50.0 x 19 mm
- Cable type: RG174
- Cable length: 3 m
- Connector: SMA male
- Mounting: magnetic base, double-sided adhesive tape
- Operating temperature: -40 to 85 °C
