Product description

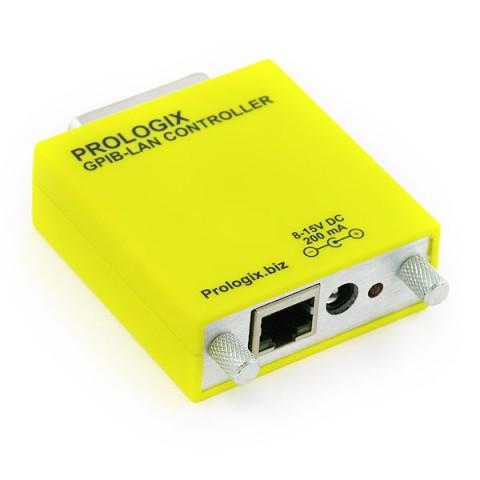

Access GPIB instruments over an ethernet network using this affordable, easy to use, Prologix GPIB-ETHERNET controller. Attach the GPIB-ETHERNET controller to any GPIB enabled equipment to control it over a network from anywhere in the world!
Use this controller to remotely control and download screen plots from Oscilloscopes, Logic Analyzers, Spectrum Analyzers, Function Generators, Power Supplies and other GPIB enabled instruments all over ethernet.
GPIB-ETHERNET may also be used with a wireless bridge to access your instruments wirelessly. Requires external power supply of 8-15VDC (included).
Features:
No drivers required
Power supply included
Support multiple instruments on GPIB bus
Same command interface as the popular Prologix GPIB-USB controller
All software configuration - No switches
Standard RJ-45 and IEEE 488 (Male) connectors
No GPIB cable required - the GPIB-ETHERNET can be attached directly to a GPIB enabled piece of equipment
Dimensions: 3.0"x2.5"x0.9"
Use this controller to remotely control and download screen plots from Oscilloscopes, Logic Analyzers, Spectrum Analyzers, Function Generators, Power Supplies and other GPIB enabled instruments all over ethernet.
GPIB-ETHERNET may also be used with a wireless bridge to access your instruments wirelessly. Requires external power supply of 8-15VDC (included).
Features:
No drivers required
Power supply included
Support multiple instruments on GPIB bus
Same command interface as the popular Prologix GPIB-USB controller
All software configuration - No switches
Standard RJ-45 and IEEE 488 (Male) connectors
No GPIB cable required - the GPIB-ETHERNET can be attached directly to a GPIB enabled piece of equipment
Dimensions: 3.0"x2.5"x0.9"
