Product description

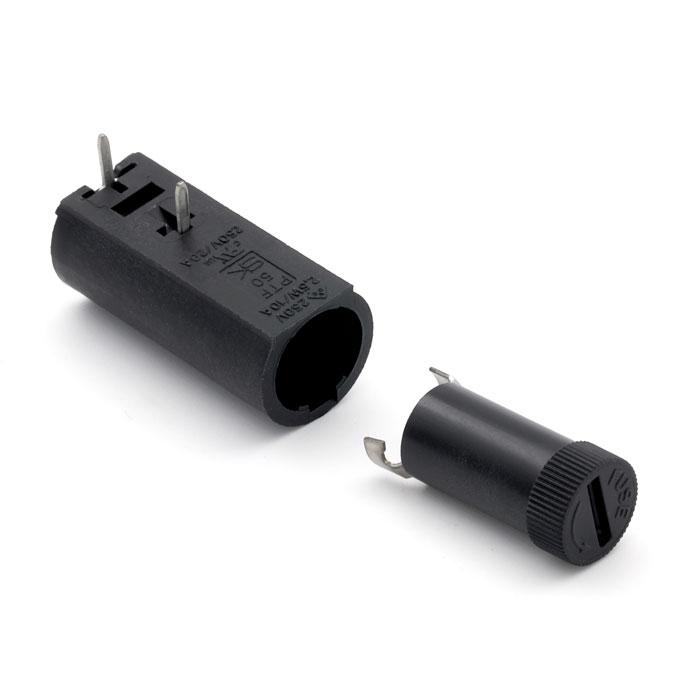

Fuse holder for horizontal PCB mounting. Designed for 5 x 20 mm fuses. The holder is shock-safe according to category PC2 and has an IP20 degree of protection. The insulating housing is made of PBT with a UL94 V-0 flammability rating.
Specifications:
- Model: Stelvio Kontek PTF/50
- Fuse type: 5 x 20 mm
- Mounting: PCB, THT
- Rated voltage: 250 VAC
- Rated current: 10 A
- Contact resistance: <5 mΩ
- Insulating material: PBT
- Flammability rating: UL94 V-0
- Degree of protection: IP20
- Ambient temperature: -30 to +85 °C
- Colour: Black
- VDE, EN 60127-6
