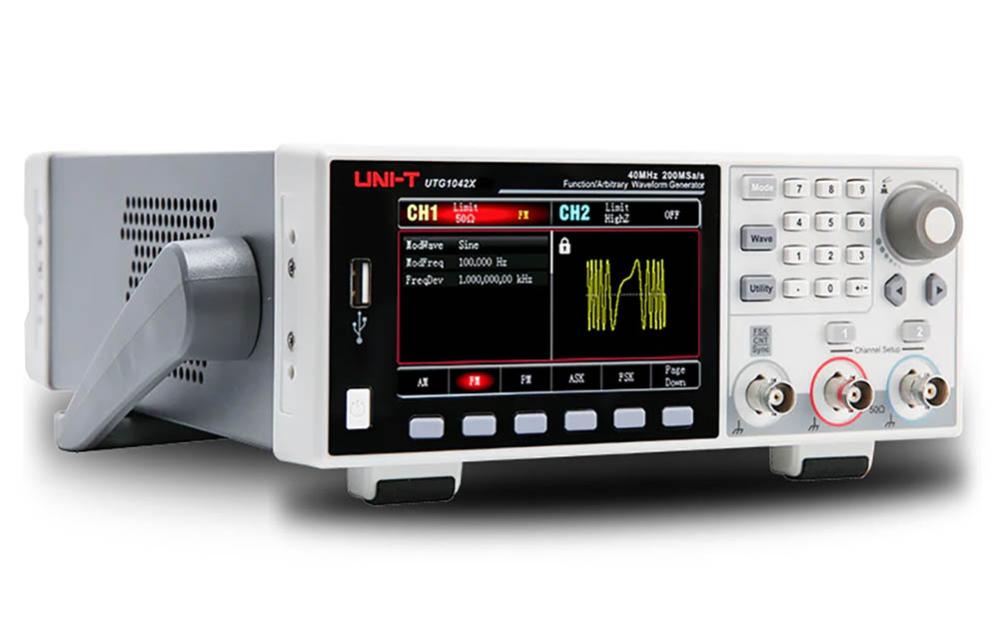

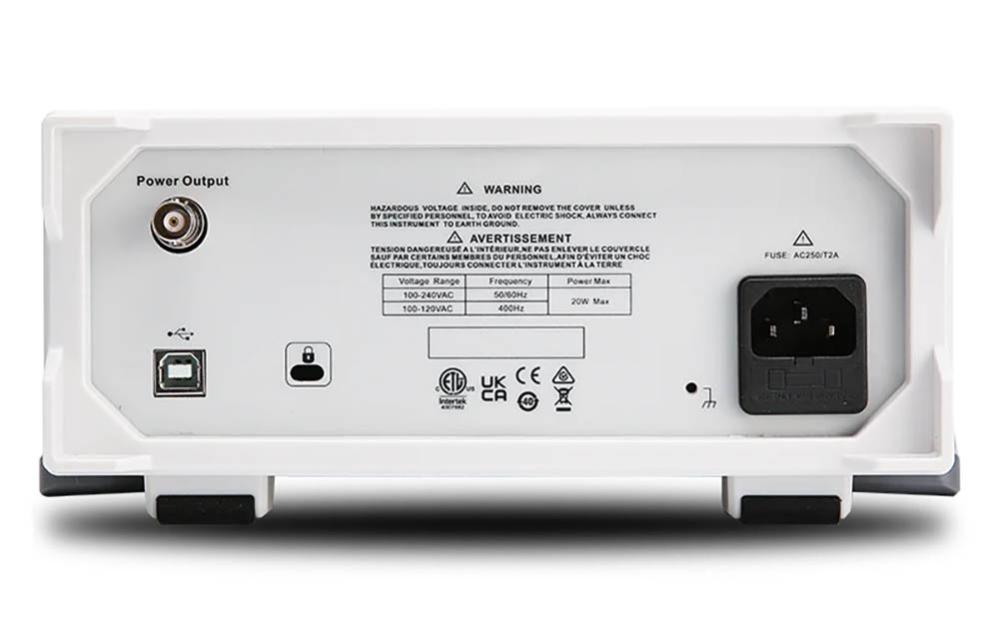

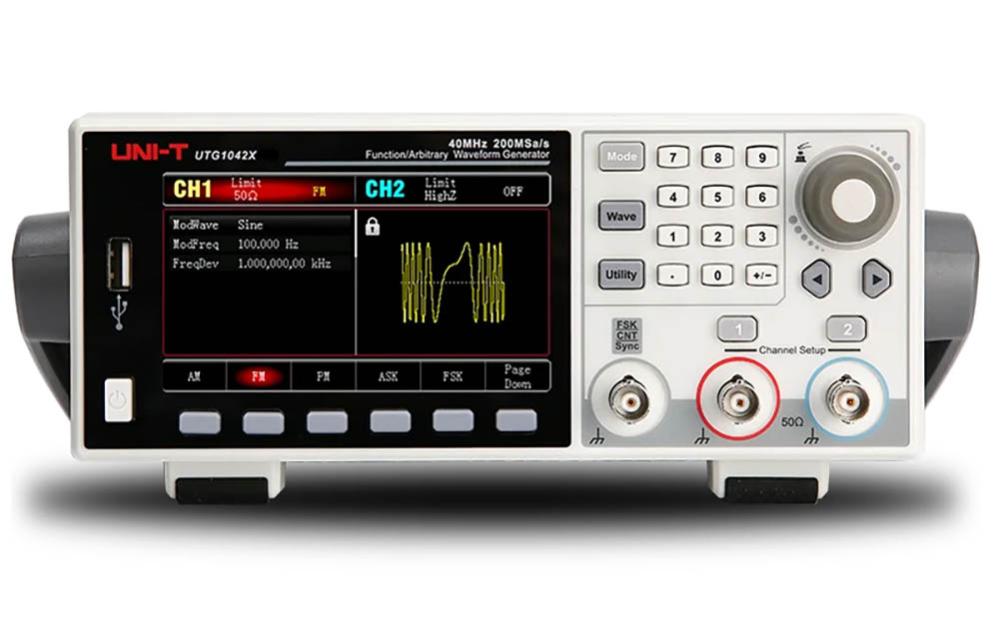

Product description
UNI-T UTG1022X is a dual-channel 20 MHz function generator for generating standard signals, arbitrary waveforms, modulation, frequency sweeps, and burst signals. It has a maximum output frequency of 20 MHz and a maximum output amplitude of 20 Vpp. The generator has a sampling rate of 200 MSa/s and 16-bit vertical resolution. It is equipped with a 4.3-inch TFT display with a resolution of 480 × 272 pixels, as well as a frequency counter that can measure frequency and duty cycle. Free PC software is available.
Specifications:
- Model: UTG1022X
- Number of channels: 2
- Maximum output frequency: 20 MHz
- Vertical resolution: 16 bit
- Sampling rate: 200 MSa/s
- Frequency resolution: 1 µHz
- Maximum output amplitude: 20 Vpp
- Built-in arbitrary waveforms: 200
- Sine wave: 1 µHz–20 MHz
- Square wave: 1 µHz–10 MHz
- Pulse wave: 1 µHz–10 MHz
- Ramp wave: 1 µHz–400 kHz
- Arbitrary waveform: 1 µHz–5 MHz
- Resolution: 1 µHz
- Modulation: AM, FM, PM, FSK, ASK, PSK, PWM
- Functions: Frequency sweep, burst
- Built-in waveforms: Sine, square, pulse, ramp, Gaussian
- Output impedance: 50 Ω
- Interface: USB Host/Device
- Display: 4.3" TFT LCD, 480 × 272 pixels
- Output protection: Short-circuit protection, automatic waveform output shutdown in case of overload
- Frequency counter: 100 mHz–200 MHz, frequency and duty cycle
- Dimensions: 215 × 103 × 316 mm
- Weight: 2.2 kg

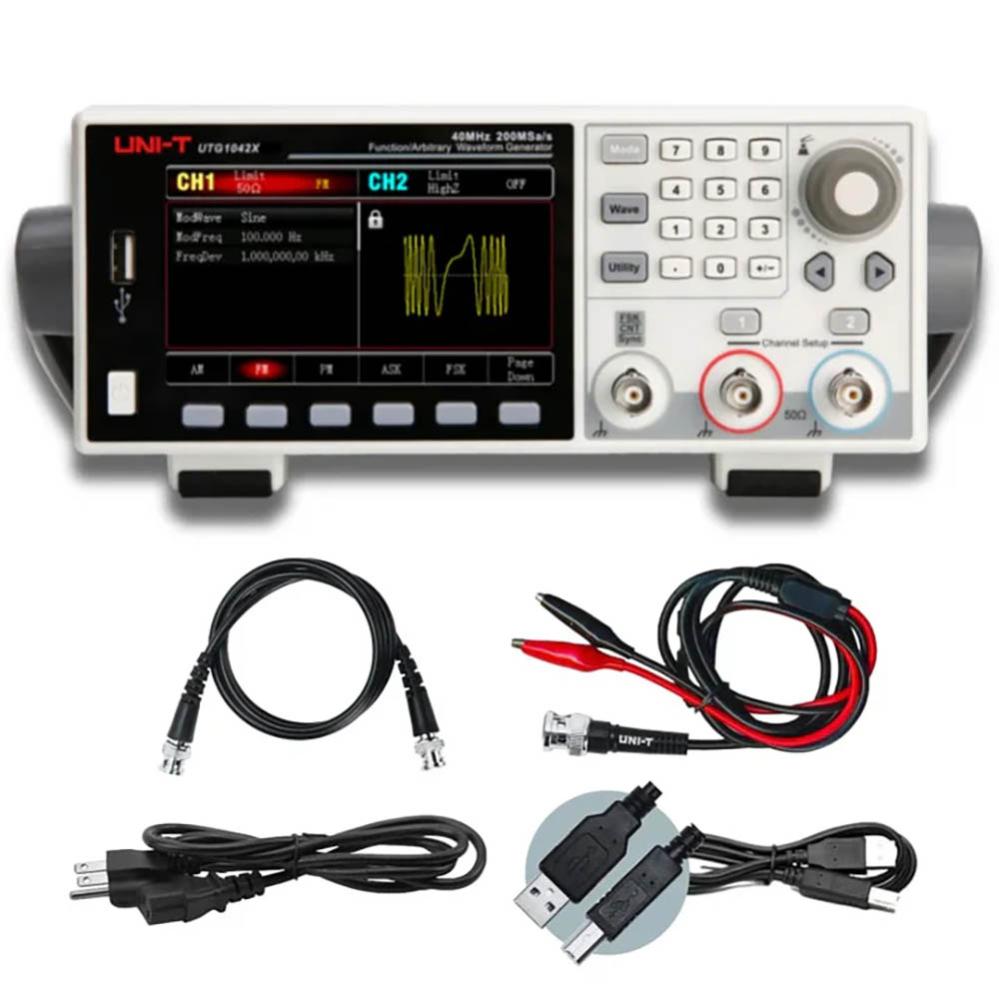

Supplied with:
- Power cable
- USB cable
- BNC–BNC cable
- BNC cable with crocodile clips
