Product description

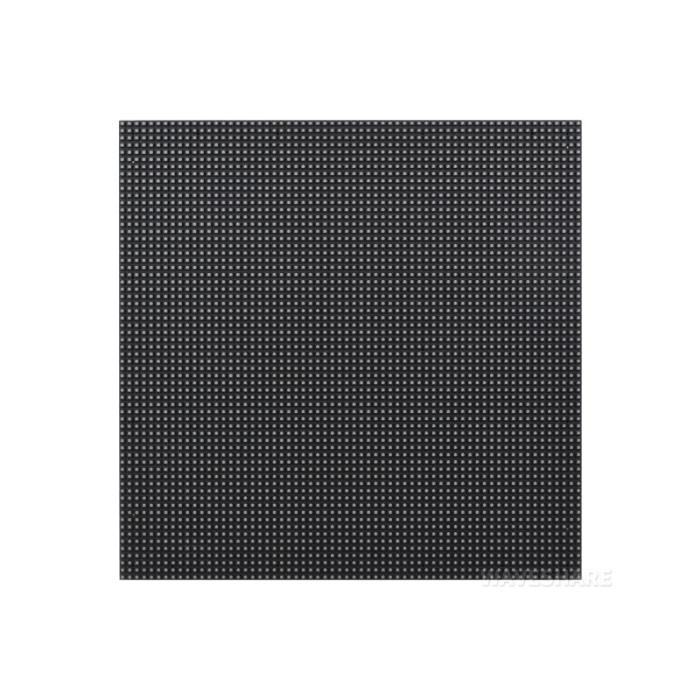

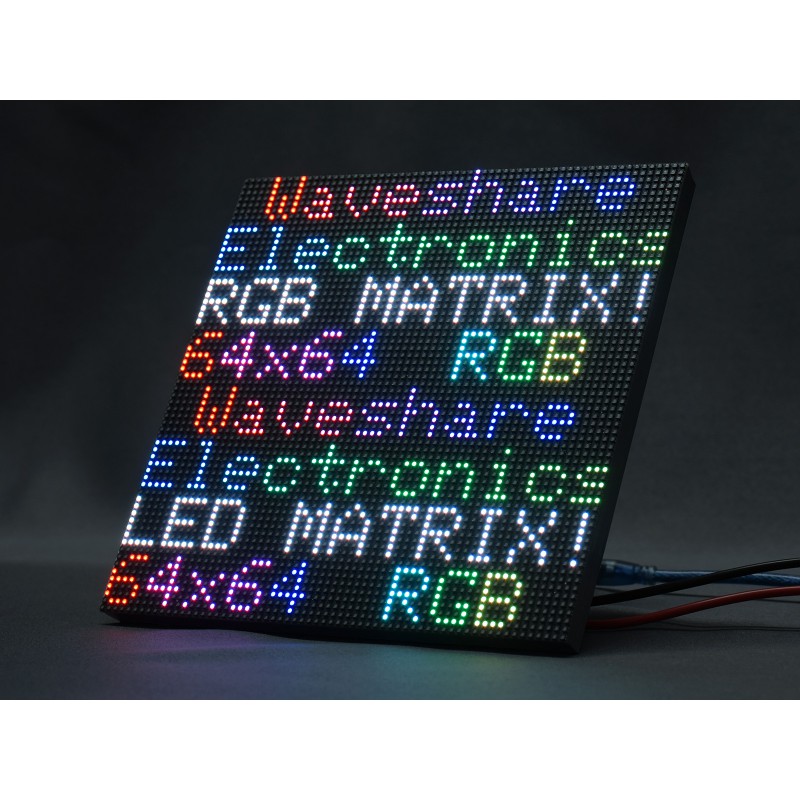

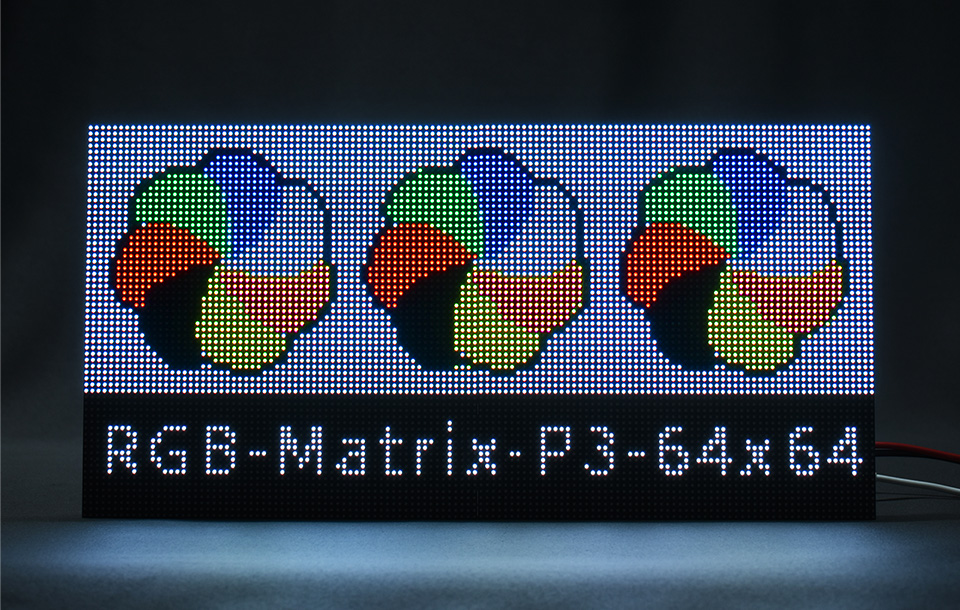

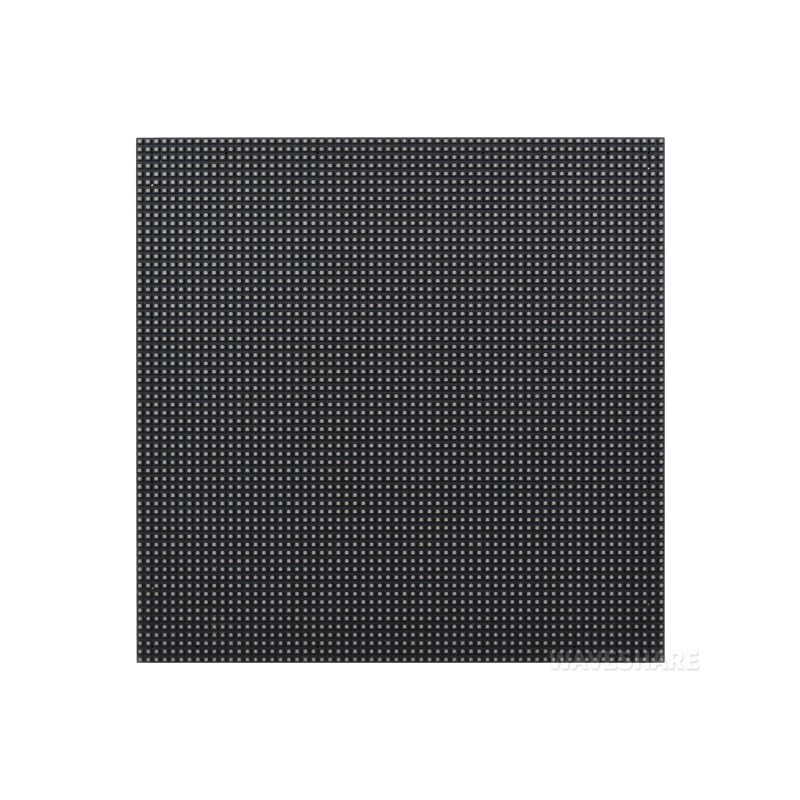

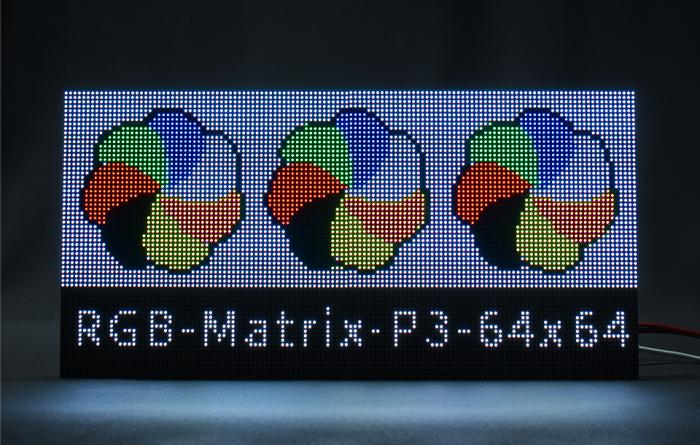

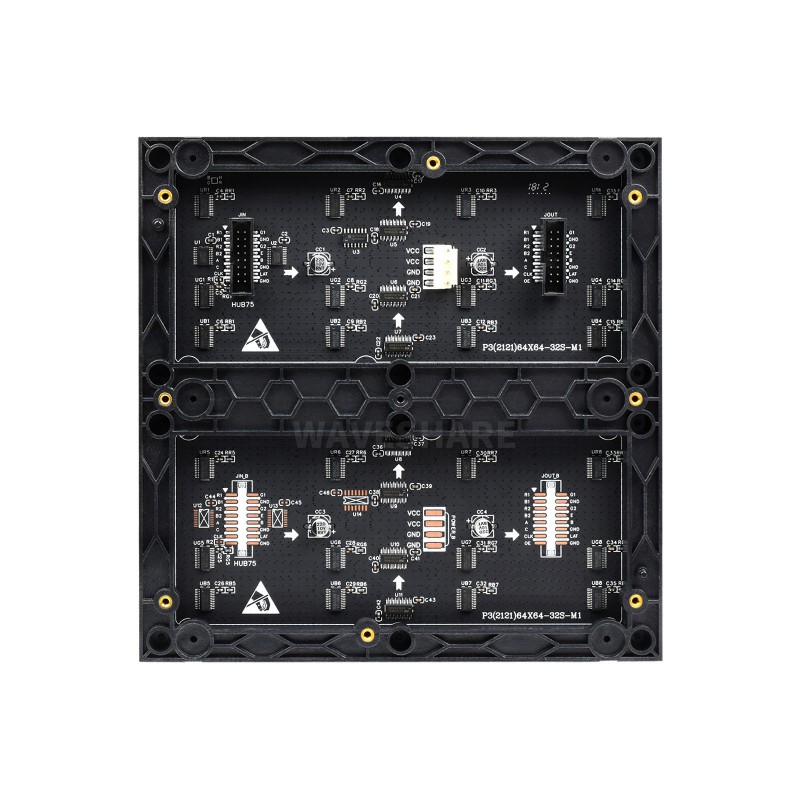

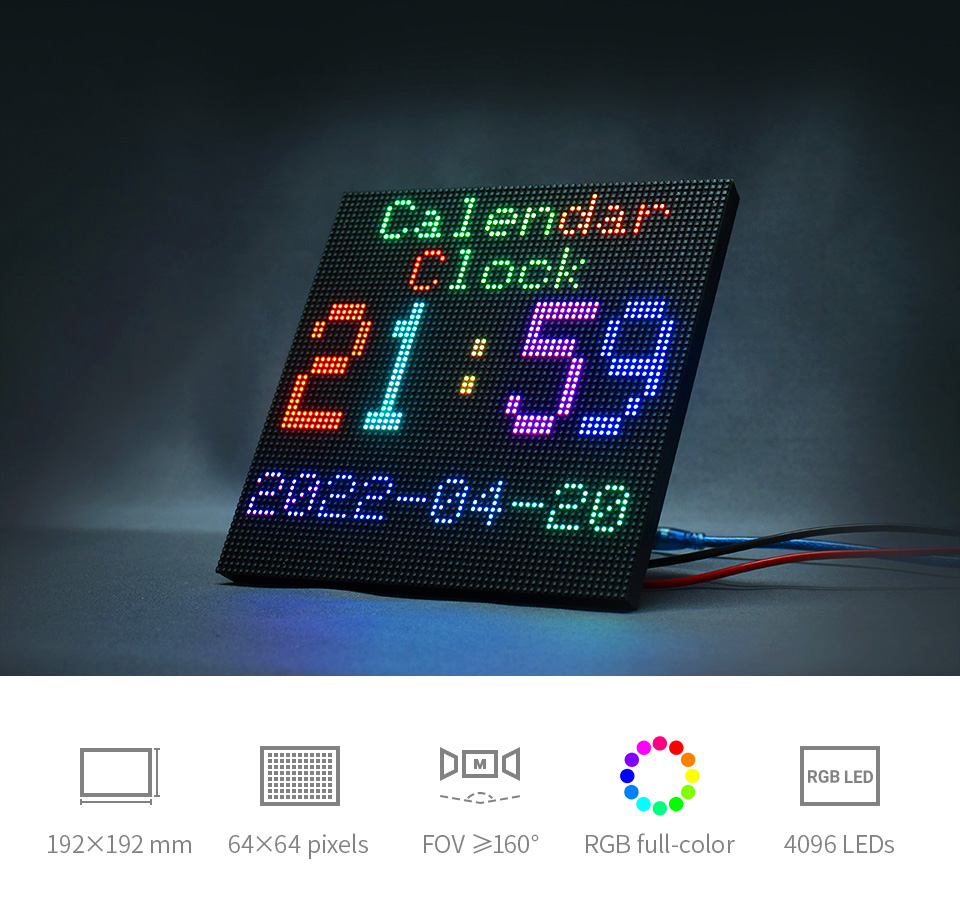

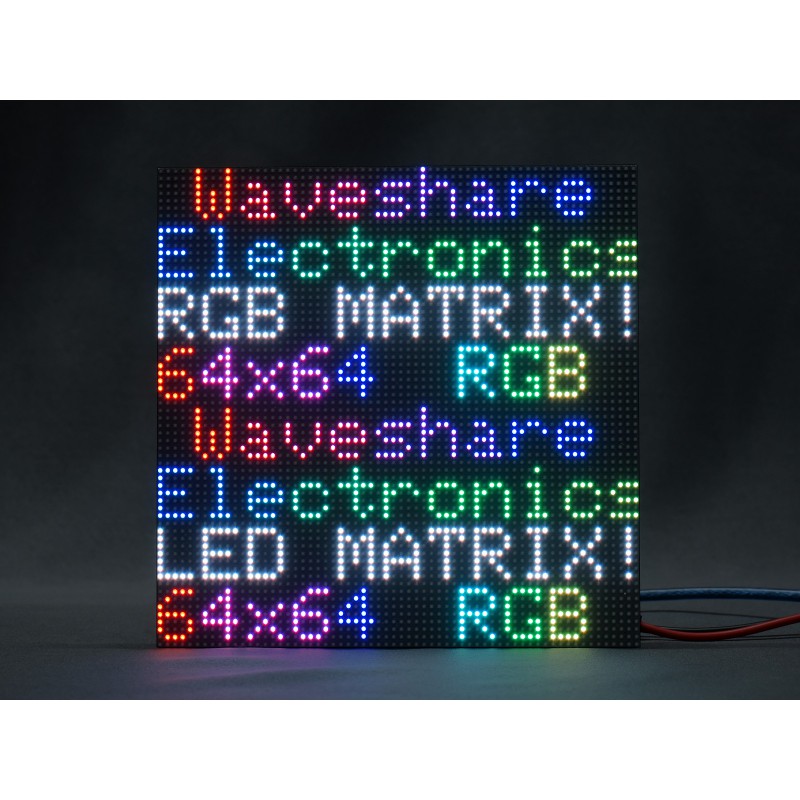

Full-color P3 RGB LED matrix panel with 64 × 64 pixel resolution and 3 mm pixel pitch. The panel features 4096 individually addressable RGB LEDs and uses the HUB75 interface for connection to a compatible controller. Suitable for displaying text, graphics, and animations in applications such as information displays, instrument panels, and maker projects. Two HUB75 connectors allow multiple panels to be daisy-chained to create larger displays. Example code and documentation are available for Raspberry Pi, Raspberry Pi Pico, ESP32, Arduino, and STM32.

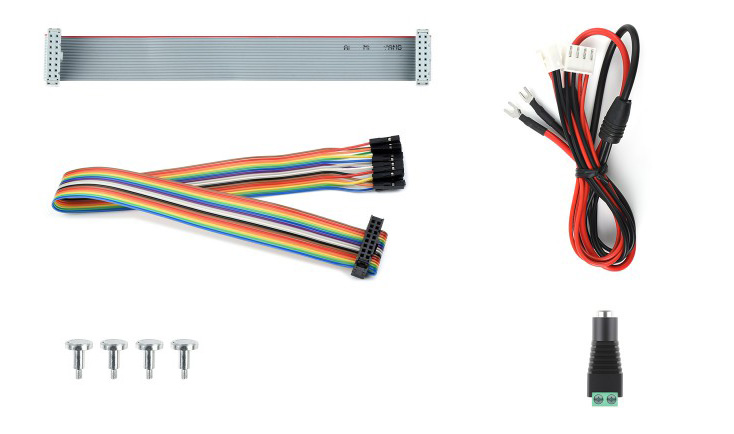

Supplied with: 1 m power cable to 2 × VH4 connectors, 200 mm 16-pin IDC cable, 300 mm cable with 16-pin IDC connector to Dupont female connectors, 2.5 mm DC terminal block, and mounting screws for the panel (see image).
Specifications:
- Type: RGB LED matrix panel
- Resolution: 64 × 64 pixels
- Number of LEDs: 4096 RGB LEDs
- Pixel pitch: 3 mm (P3)
- Pixel configuration: 1R1G1B

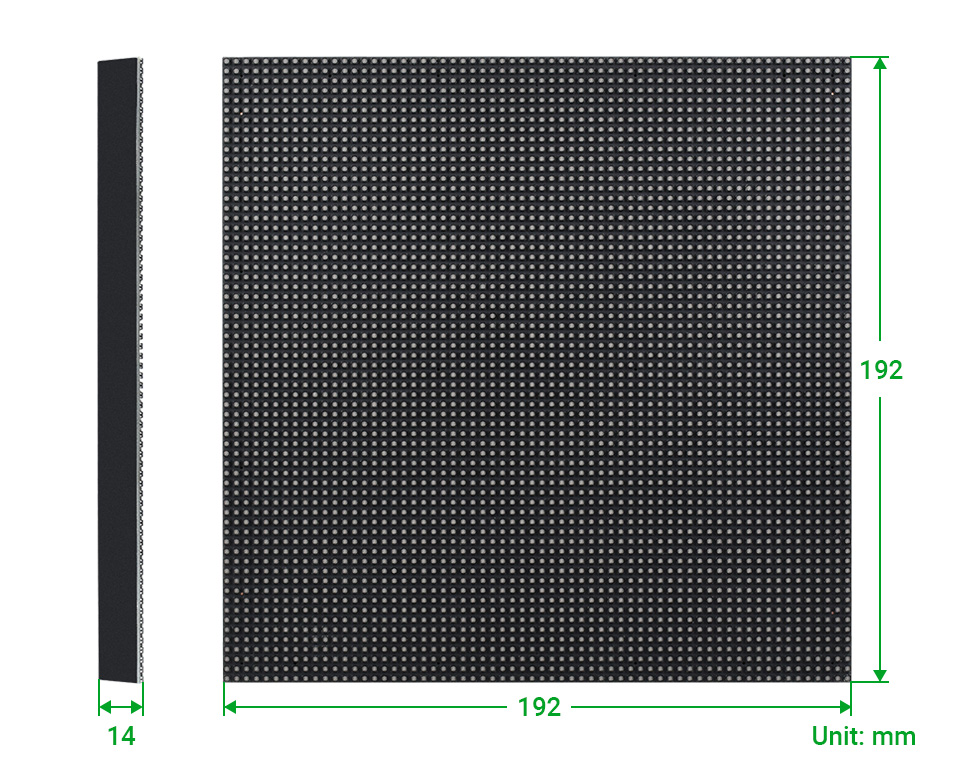

- Panel size: 192 × 192 mm

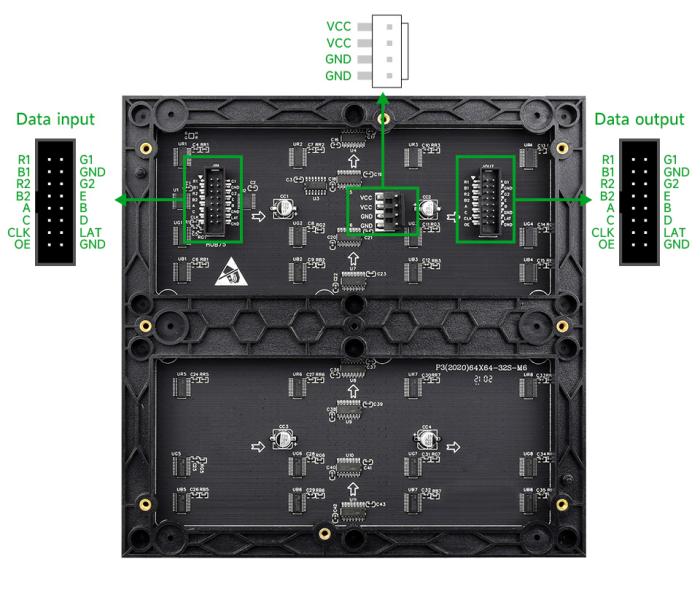

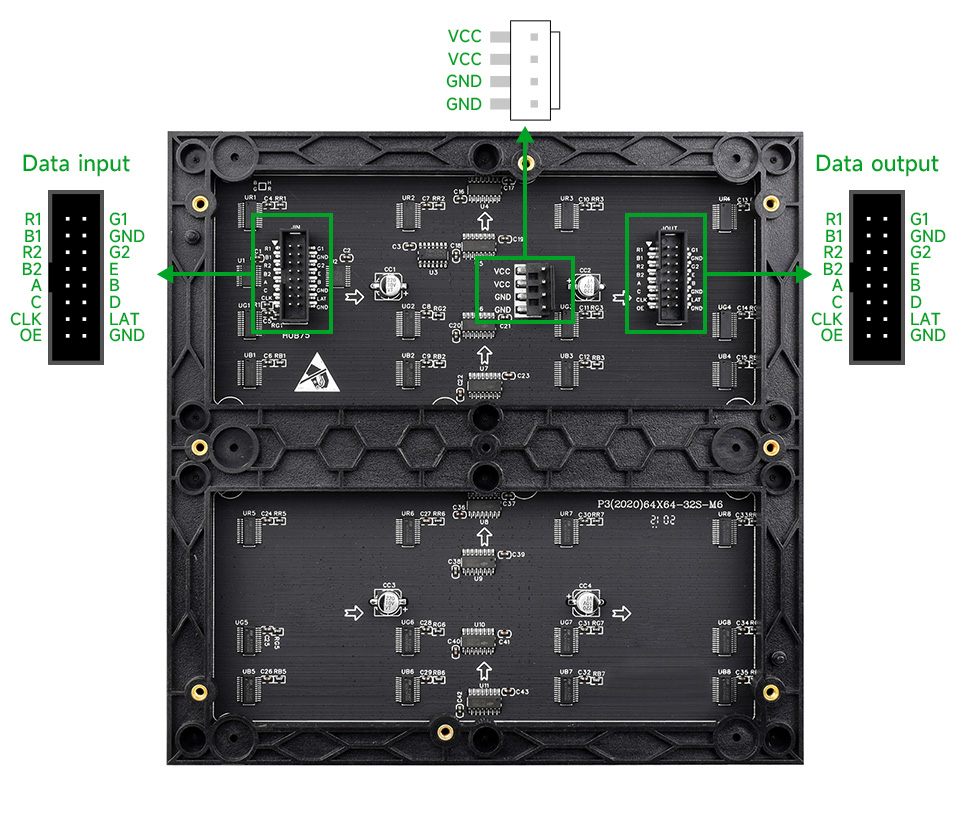

- Interface: HUB75
- Supply voltage: 5 VDC, 4 A via VH4 connector
- Power consumption: Max. 20 W
- Scan mode: 1/32 scan
- Viewing angle: ≥160°
- Daisy-chain support: Yes
- Compatible platforms: Raspberry Pi, Raspberry Pi Pico, ESP32, Arduino, STM32
