Product description

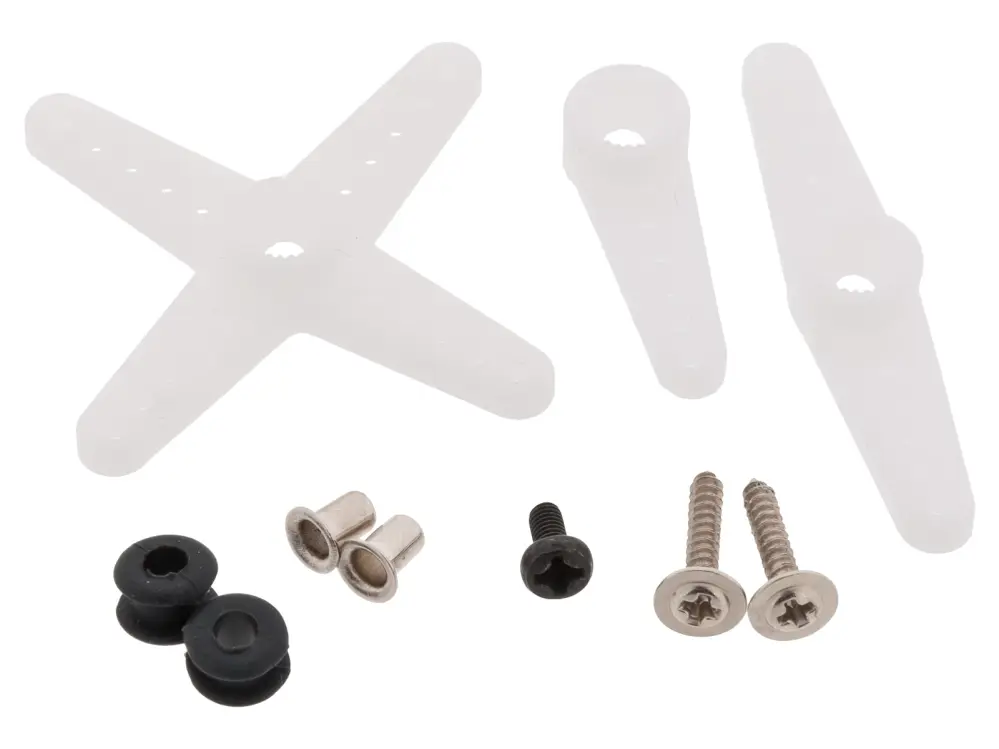

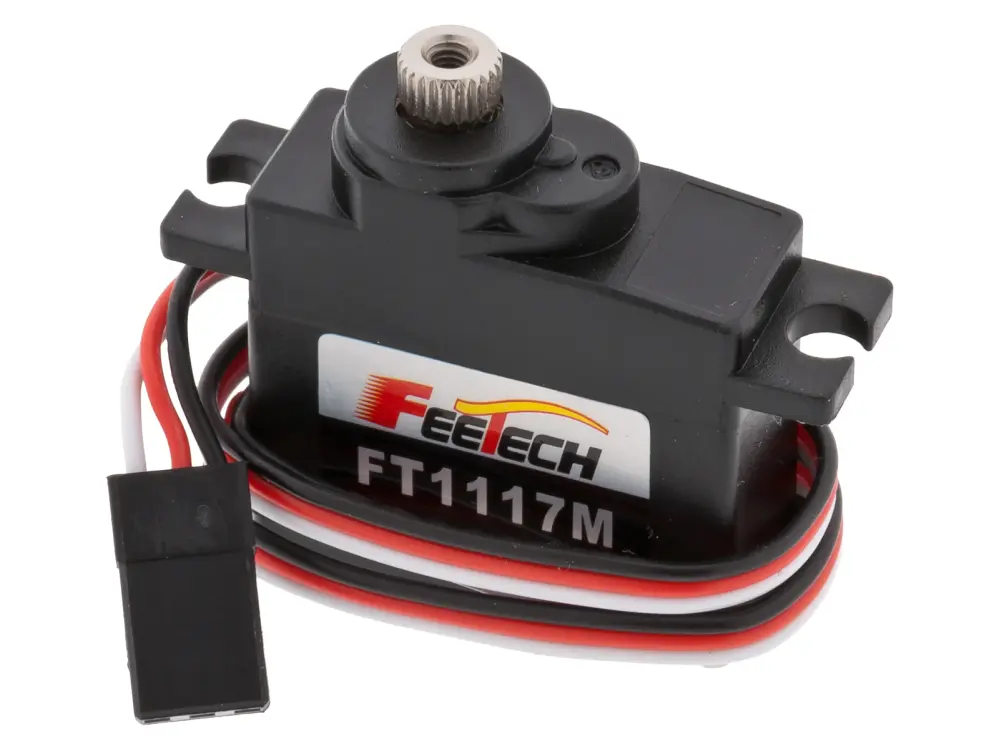

Analog micro servo with metal gearbox. Can be controlled from e.g. Arduino, Raspberry Pi, ESP32, RC receiver, etc. With fixed end stops. Supplied with servo horns (servo arms). Connector with 2.54 mm pitch (breadboard friendly).
Specifications:
- Drive voltage: 4.8 to 6.0 VDC
- Gearbox, gear material: Metal
- Servo type: Analog
- Movement range: 200°
- Speed (4.8 / 6.0 Volt): 0.13 / 0.11 s/60°
- Torque (4.8 / 6.0 Volt): 3.2 / 3.5 kg·cm
- Pulse width (PWM): 900–2100 µs
- Form factor / size: Micro servo
- Connection: 3 poles (positive, negative and signal)
- Connector type: JR / Futaba / GWS
- Cable length: 180 mm
- Dimensions: 30 × 12 × 31.7 mm
- Weight: 20 g
- Model: Feetech – FT1117M
