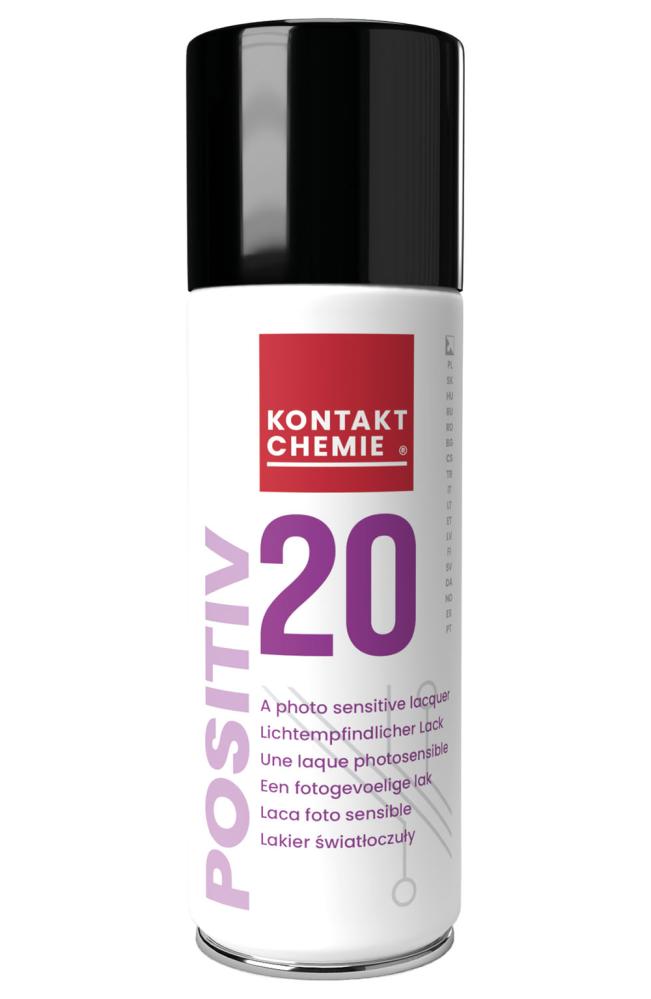

Photo resist - POSITIV-20 200ml

Art no: 41010834 - Kontakt Chemie
Shop this product, Photo resist - POSITIV-20 200ml
price 399 SEK
Including 25% VAT
In stock, 2 pcs
Unit : Piece

Do you need assistance?

Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se

Product description

OpenClose

Product description

Kontakt Chemie POSITIV 20 200 ml. POSITIV 20 is a photo-positive resist lacquer in aerosol form, intended for the production of printed circuit boards and other photolithographic applications. It enables precise transfer of patterns from transparent originals to copper laminate. The applied film is sensitive to UV light in the wavelength range 370–440 nm.

Instructions for use:

  • Surface preparation: Clean the copper surface thoroughly from grease and oxides. Use isopropanol.
  • Application: Spray POSITIV 20 from a distance of 20–30 cm in an even, zigzag pattern. Keep the can as vertical as possible to achieve an even coating.
  • Drying: Dry the coated surface in darkness. Gradually raise the temperature to 70 °C over 10 minutes and maintain this temperature for an additional 15 minutes.
  • Exposure: Place the transparent original onto the coated laminate and expose with UV light (370–440 nm). Exposure time depends on the light source and thickness of the coating.
  • Developing: Develop with photoresist developer (41000469), in a solution of 20 g per two litres of water at 20–25 °C for 30–60 seconds. Stir gently and then rinse with water.
  • Etching: Etch with sodium persulfate (41018866).
  • Resist removal: Remove remaining resist with acetone.

Warning:

Contains: 1-methoxy-2-propanol; monopropylene glycol methyl ether, 2-methoxy-1-methylethyl acetate, acetone; propan-2-one; propanone

Hazard statements:
H222 – Extremely flammable aerosol
H229 – Pressurised container: May burst if heated
H319 – Causes serious eye irritation
H336 – May cause drowsiness or dizziness

Precautionary statements:
P102 – Keep out of reach of children
P210 – Keep away from heat, hot surfaces, sparks, open flames and other ignition sources. No smoking
P211 – Do not spray on an open flame or other ignition source
P251 – Do not pierce or burn, even after use
P261 – Avoid breathing spray
P271 – Use only outdoors or in a well-ventilated area
P410+P412 – Protect from sunlight. Do not expose to temperatures exceeding 50 °C/122 °F
P510 – Dispose of contents/container to an approved waste disposal facility

Photo resist in a spray can. Spray onto properly cleaned copper clad board. After that, the board is exposed with a positive film, and developed in potassium hydroxide. After that, the board is etched in sodium persulfate.

Contents: 200ml

Signal word: Danger

H222 Extremely flammable aerosol.
H229 Pressurised container: May burst if heated.
H319 Causes serious eye irritation.
H336 May cause drowsiness or dizziness. Precautionary statement(s): P102 : Keep out of reach of children.

P210 Keep away from heat, hot surfaces, sparks, open flames and other ignition sources. No smoking.
P211 Do not spray on an open flame or other ignition source.
P251 Do not pierce or burn, even after use.
P261 Avoid breathing dust/fume/gas/mist/vapours/spray.
P271 Use only outdoors or in a well-ventilated area.
P410+412 Protect from sunlight. Do not expose to temperatures exceeding 50°C/122°F.
P501 Dispose of contents/container to an authorised waste collection point.
