Product description

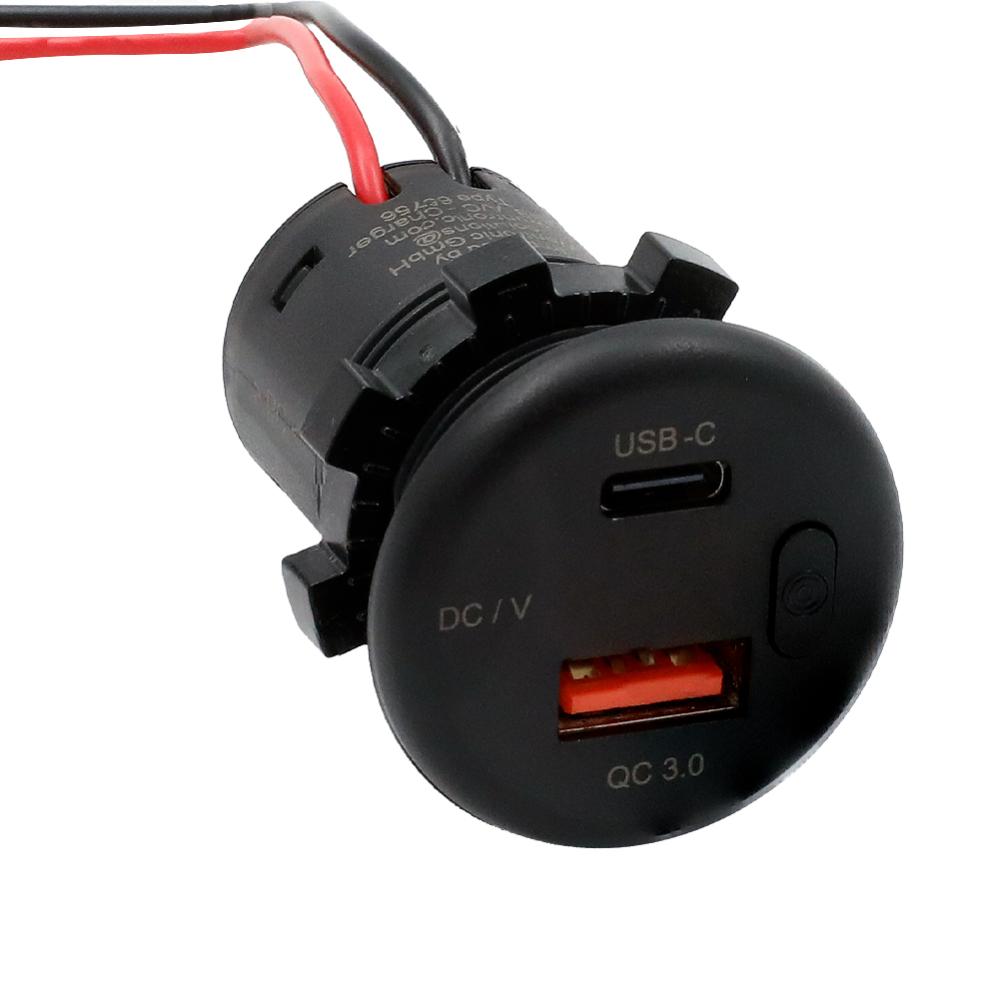

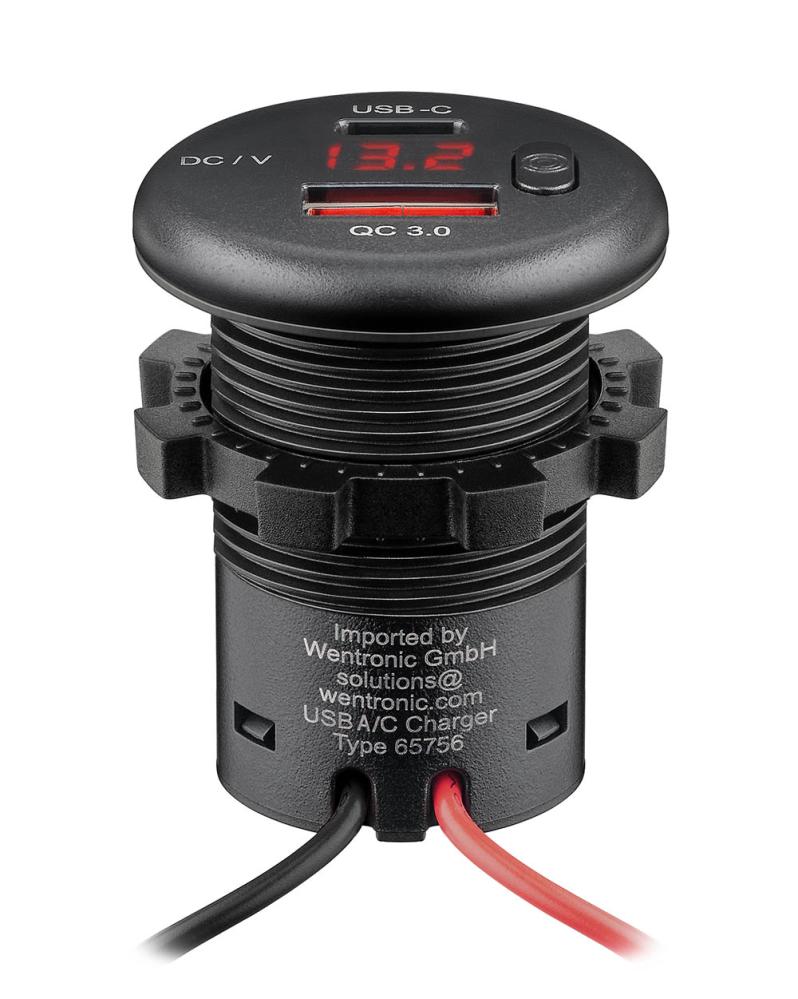

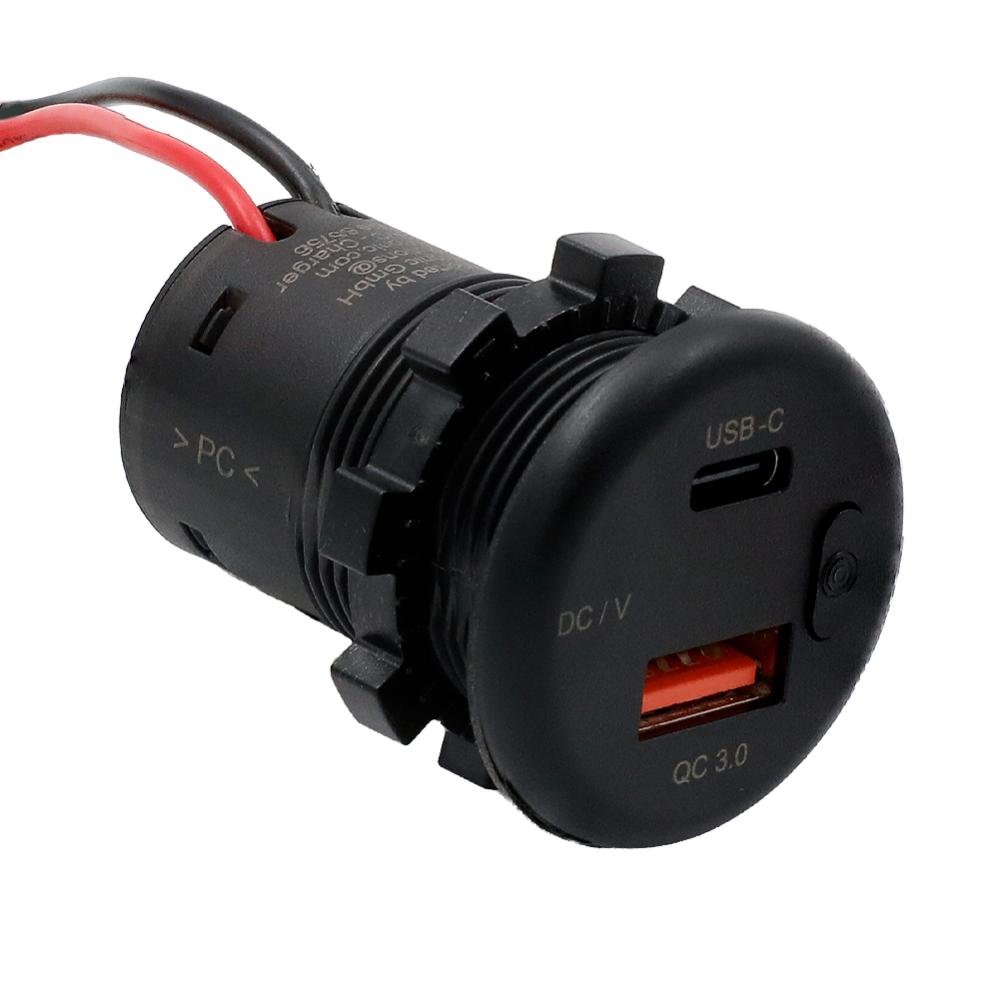

Recessed USB-A + USB-C charger with voltmeter. High-quality design with European vehicle approvals. Suitable for vehicles such as motorhomes, caravans, boats, and trucks. The charger is equipped with USB-C and USB-A ports with support for charging devices such as tablets and smartphones. Designed for recessed installation and supplied with open cable ends.
Specifications:
- Output power: 2x18W
- Standby current: 5-7mA
- Supply voltage: 12-24VDC
- USB standard: USB-A, USB-C
- Fast charging support USB-A: QC3.0, QC2.0, FCP, DCP, BC1.2, AFC, SCP, PE2.0, PE1.1, SFCP
- Fast charging support USB-C: PD3.0, QC3.0, QC4.0, AFC, FCP, BC1.2, DCP, SCP, PE2.0, PE1.1, SFCP
- Cable length: 200mm
- Dimensions: front Ø36mm, chassis Ø27mm, depth 44.5mm
- Weight: 32g
- Operating temperature: -20°C to +70°C
- USB-A lifetime: approx. 1,500 insertion and removal cycles
- USB-C lifetime: approx. 10,000 insertion and removal cycles
- Certifications: CE, UKCA, RoHS, REACH, ECE-R10 Type Approval, FMVSS 201

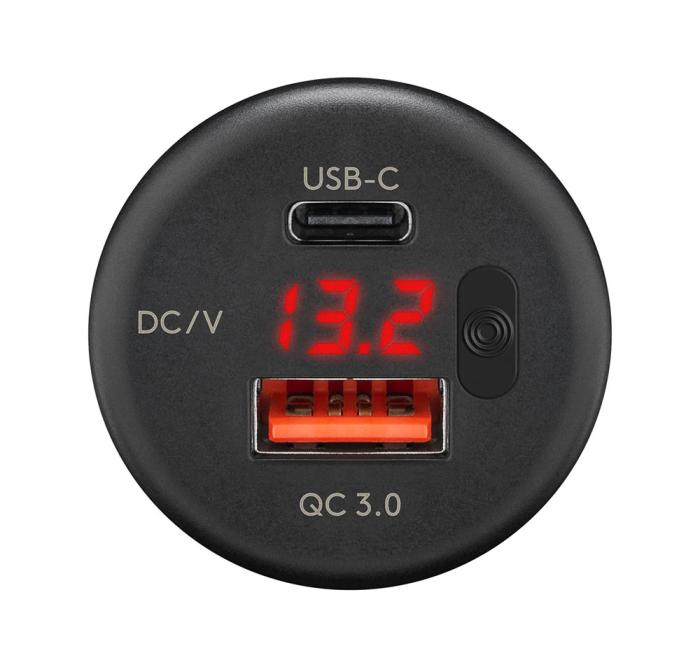

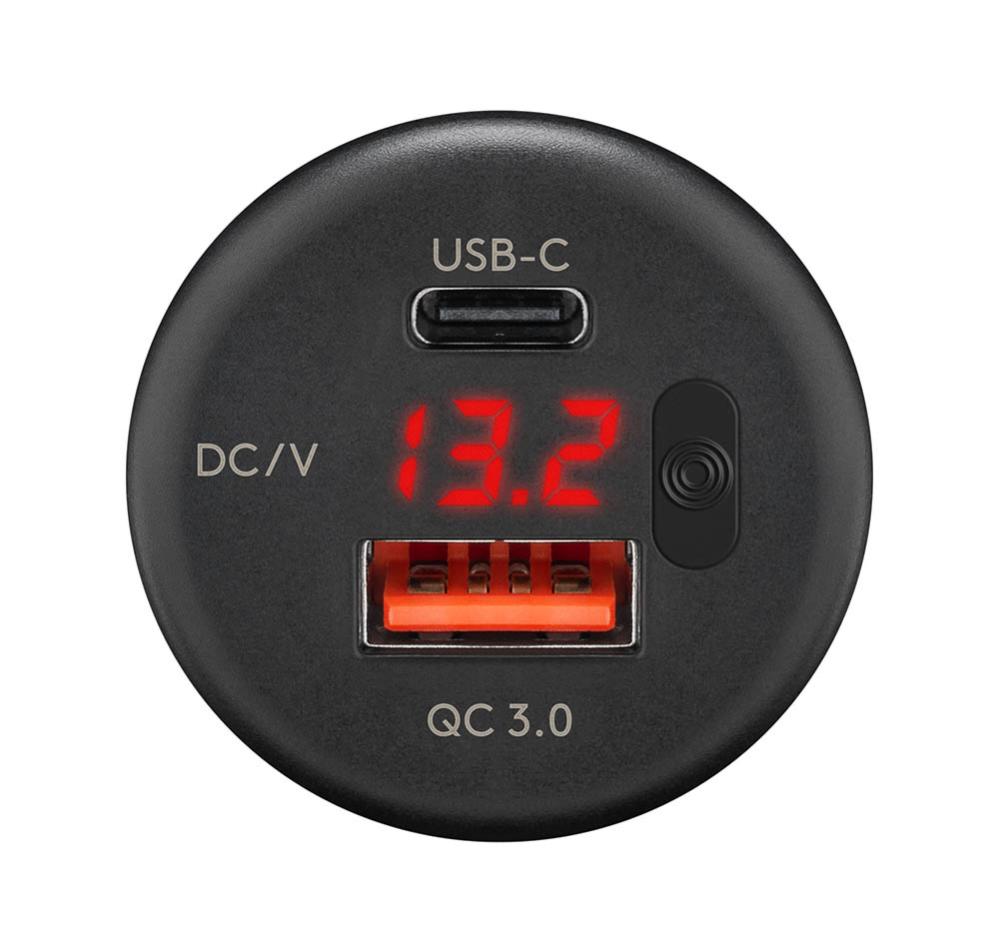

- LED display: 7-segment display for vehicle voltage indication
