Product description

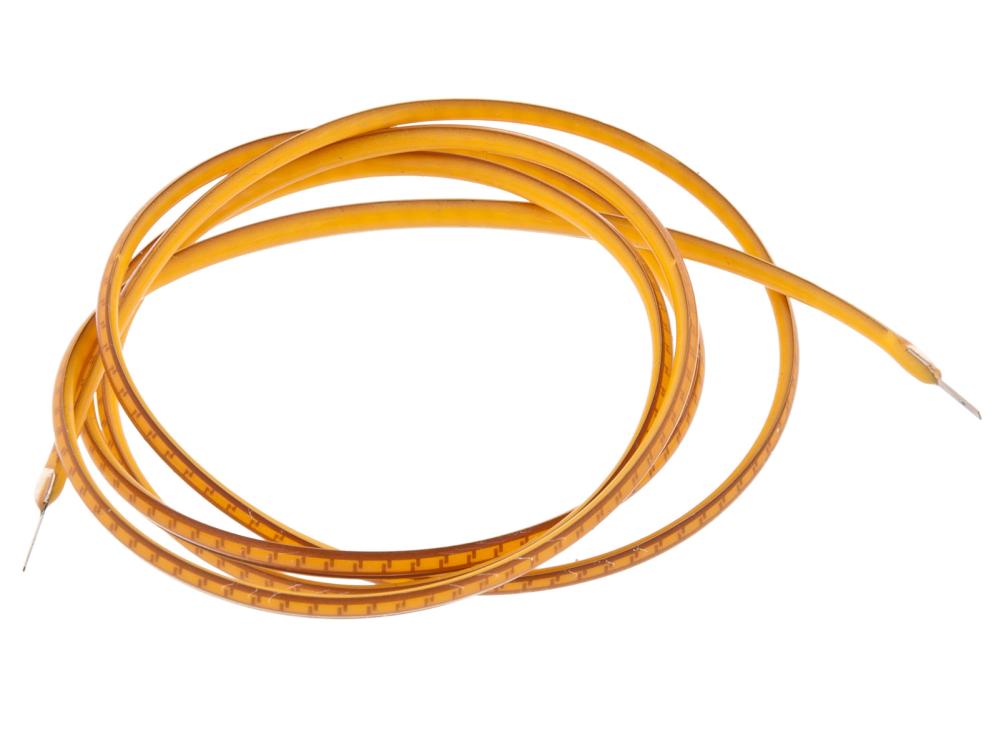

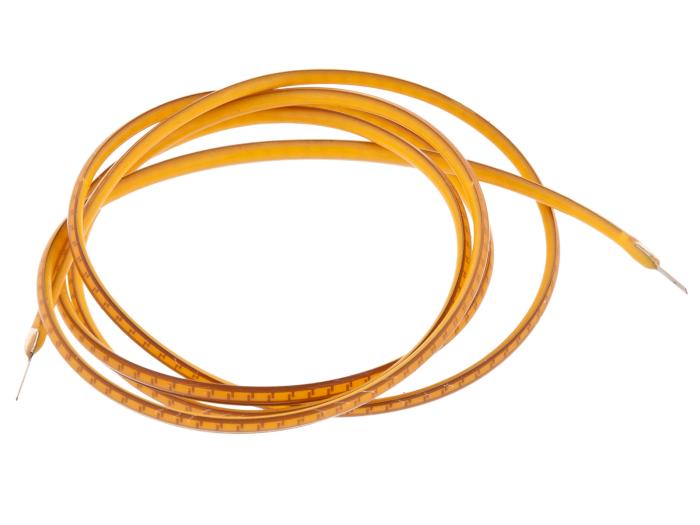

Thin and very flexible LED lighting. The LED filament consists of a large number of micro LEDs mounted on a thin metal film and encapsulated in a silicone sleeve. The LEDs are connected in parallel (and in series for longer strands), which means that longer strands require higher voltage to operate. The LEDs can be driven without a resistor, but for longer lifespan and lower temperature a series resistor should be used to limit the current, or alternatively a constant current (CC) LED driver. Suitable for PWM control for adjustable brightness. Another option is driving the filament with lower voltages, down to approx. 10.5V.
The connections can be soldered or clamped. The anode connection is marked with a small hole.
- Supply voltage: 12V
- Recommended current: 500mA
- Length: 600mm
