Product description

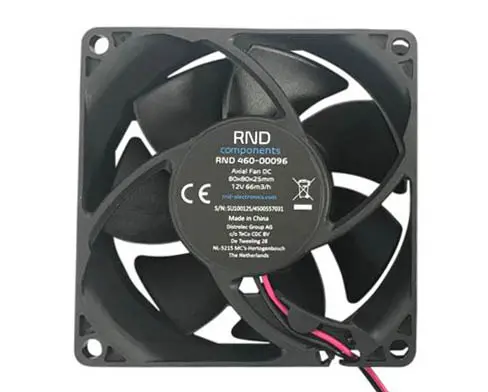

Axial fan for 12 VDC with sleeve bearing. Cable: no connector, open end. Protected against reverse polarity.
Specifications:
- Dimensions: 80 x 80 x 25 mm
- Nominal voltage: 12 VDC
- Supply voltage: 10.8 – 13.2 VDC
- Current: 130 mA (max 200 mA)
- Power: 1.56 W (max 2.4 W)
- Airflow: 66 m³/h
- Noise level: 34.3 dBA
- Bearing type: Dual Ball Bearing
- Fan speed: 3300 rpm (±350)
- Operating temperature: -10 to +70°C
