Product description

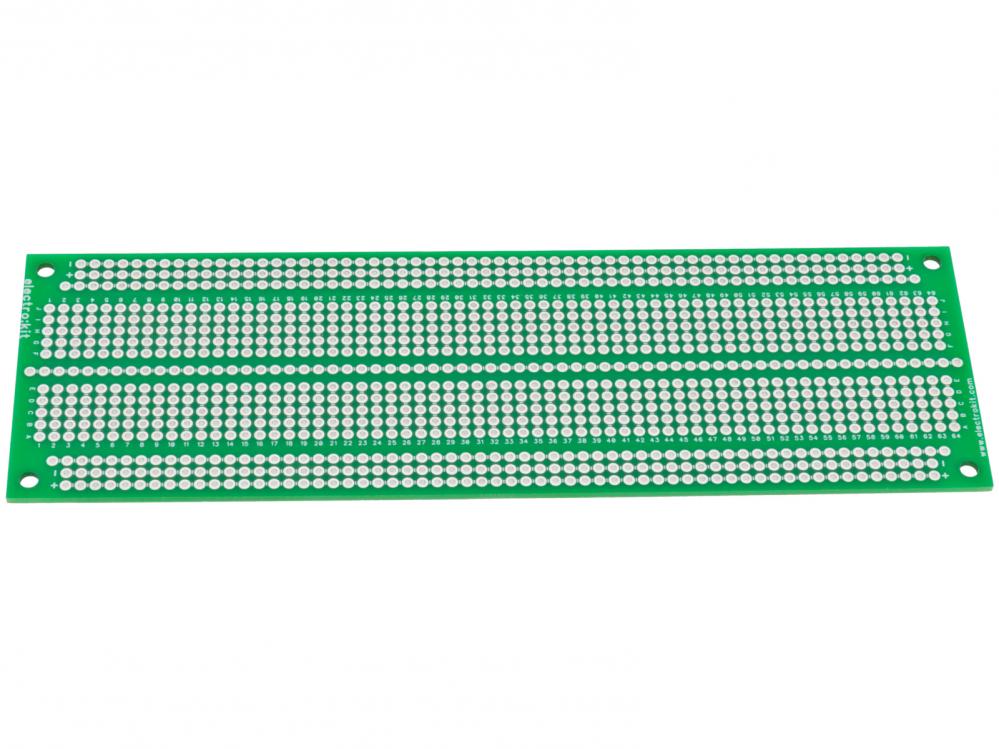

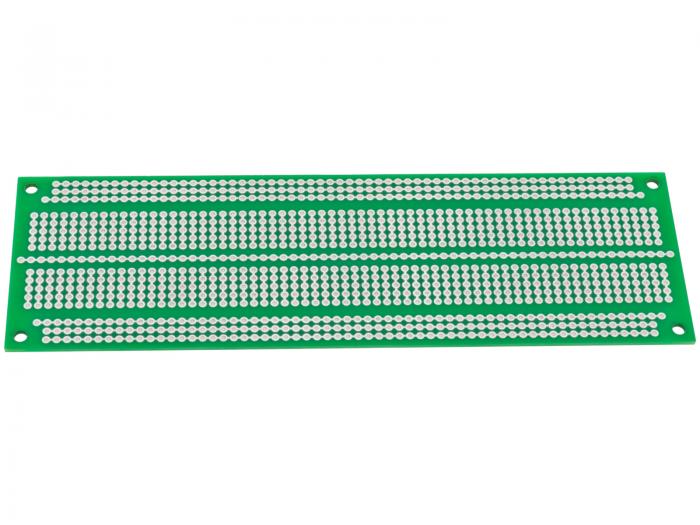

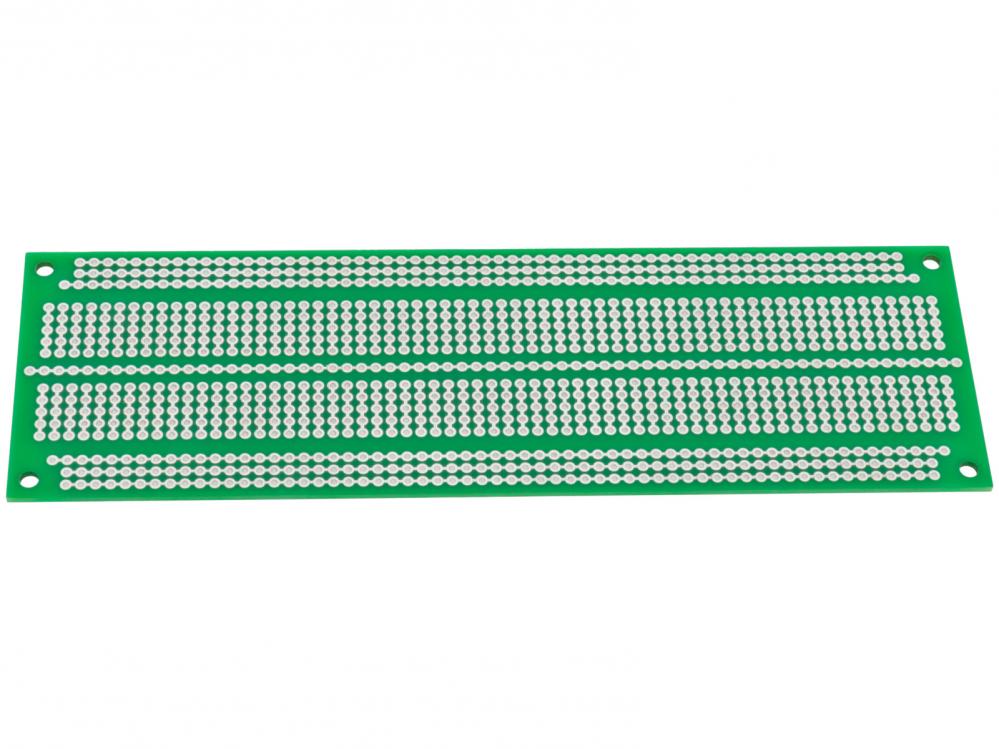

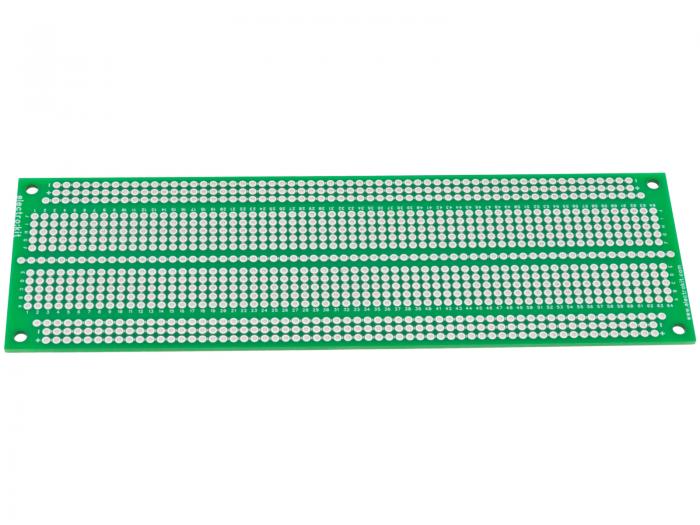

Electrokit ProtoPCB EKB16 is a prototyping board with the same layout and connections as a solderless breadboard. It has 840 plated through-holes. In addition to the traces normally found on a breadboard, the ProtoPCB has three extra longitudinal tracks that can be used for extra power supplies, grounding or bus connections. Intended for quick transfer of a circuit from a breadboard to a more permanent solution. Suitable for prototyping, education, and small-scale production. The board is double-sided with a grid of solder pads. Components, integrated circuits, and wiring connections can be mounted on both sides of the board. Manufactured from FR-4 fiberglass material which provides good mechanical stability and withstands repeated soldering. The board includes a reference grid with X and Y markings, which is very useful during small series production and documentation.
Specifications:
- Dimensions: 170 x 55 mm
- Hole Layout: 840 pads
- Hole diameter: ø1.0 mm (40 mils)
- Plated through holes: Yes
- Power supply / bus connections traces: Yes, 4+3
- Material: Fiberglass (FR-4)
- Copper Foil: 35 µm, double sided
- Surface finish: Tinned copper
- Pitch: 2.54 mm (0.1")
- PCB thickness: 1.6 mm
- PCB fixing holes: 4 pcs, ø3.2 mm
- Mounting holes: 162.5mm (6.4") x 45.75mm (1.8")
- Row (X) / Column (Y) labelling: Yes
- Operating temperature range: -40 to 130°C
- Reflow temperature: < 260 °C (suitable for lead-free soldering)
