Product description

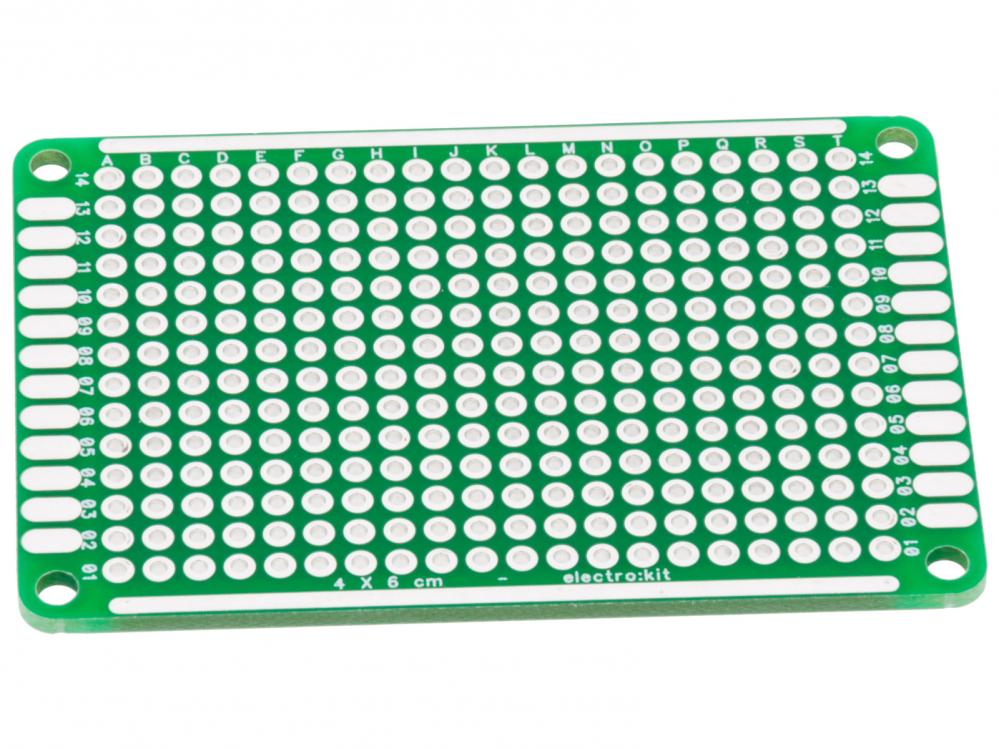

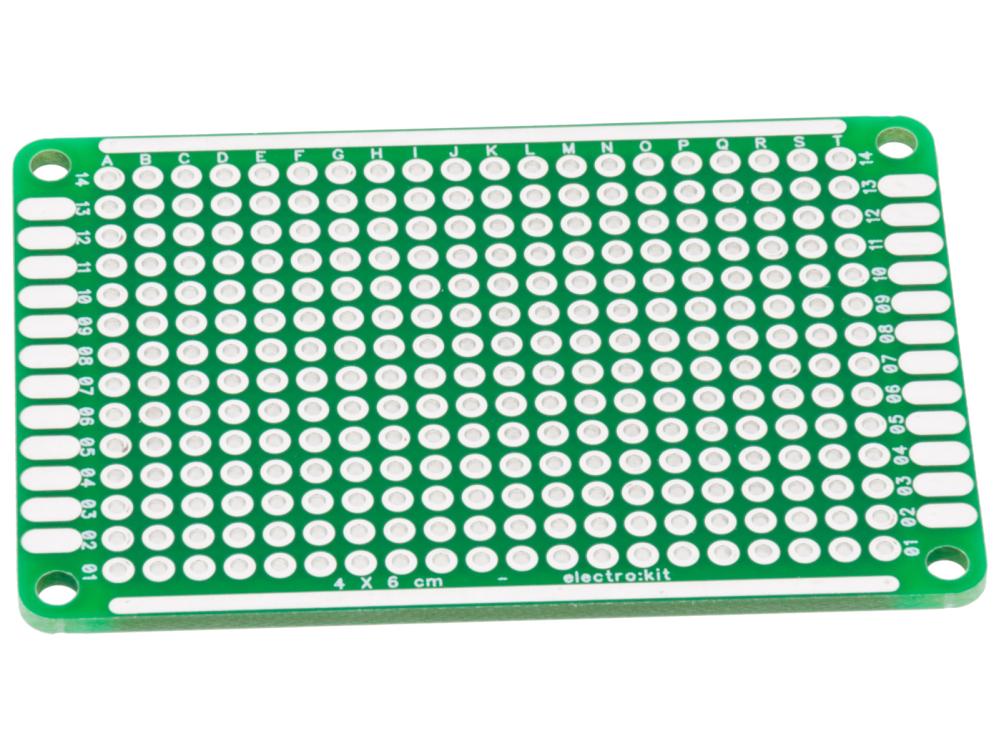

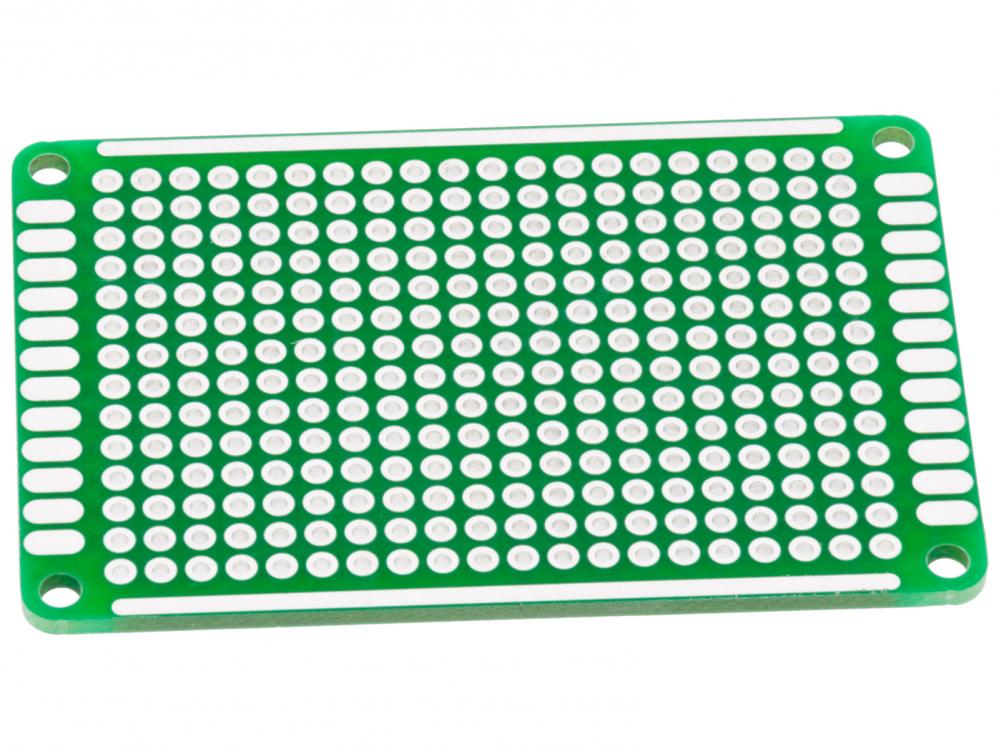

Electrokit ProtoPCB EKB09 is a prototyping PCB with 280 plated through holes and two parallel power supply traces for power distribution. Intended for prototyping, education, and small-scale production. The board is double-sided with a grid of solder pads. Components, integrated circuits, and wire connections can be mounted on both sides of the board. Manufactured from FR-4 fiberglass material which provides good mechanical stability and withstands repeated soldering. The board includes a reference grid with X and Y markings, which is very useful during small series production and documentation.
Specifications:
- Dimensions: 40 x 60 mm
- Hole Layout: 10 x 23 (280 pads)
- Hole diameter: ø1.0 mm (40 mils)
- Plated through holes: Yes
- Power supply traces: Yes, 2
- Material: Fiberglass (FR-4)
- Copper Foil: 35 µm, double sided
- Surface finish: Tinned copper
- Pitch: 2.54 mm (0.1")
- PCB thickness: 1.6 mm
- PCB fixing holes: 4 pcs, ø2.5 mm
- Row (X) / column (Y) labelling: Yes
- Operating temperature range: -40 to 130°C
- Reflow temperature: < 260 °C (suitable for lead-free soldering)
